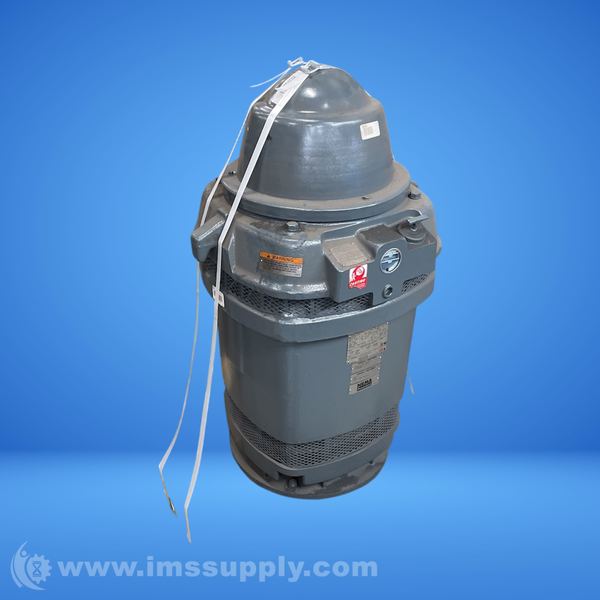

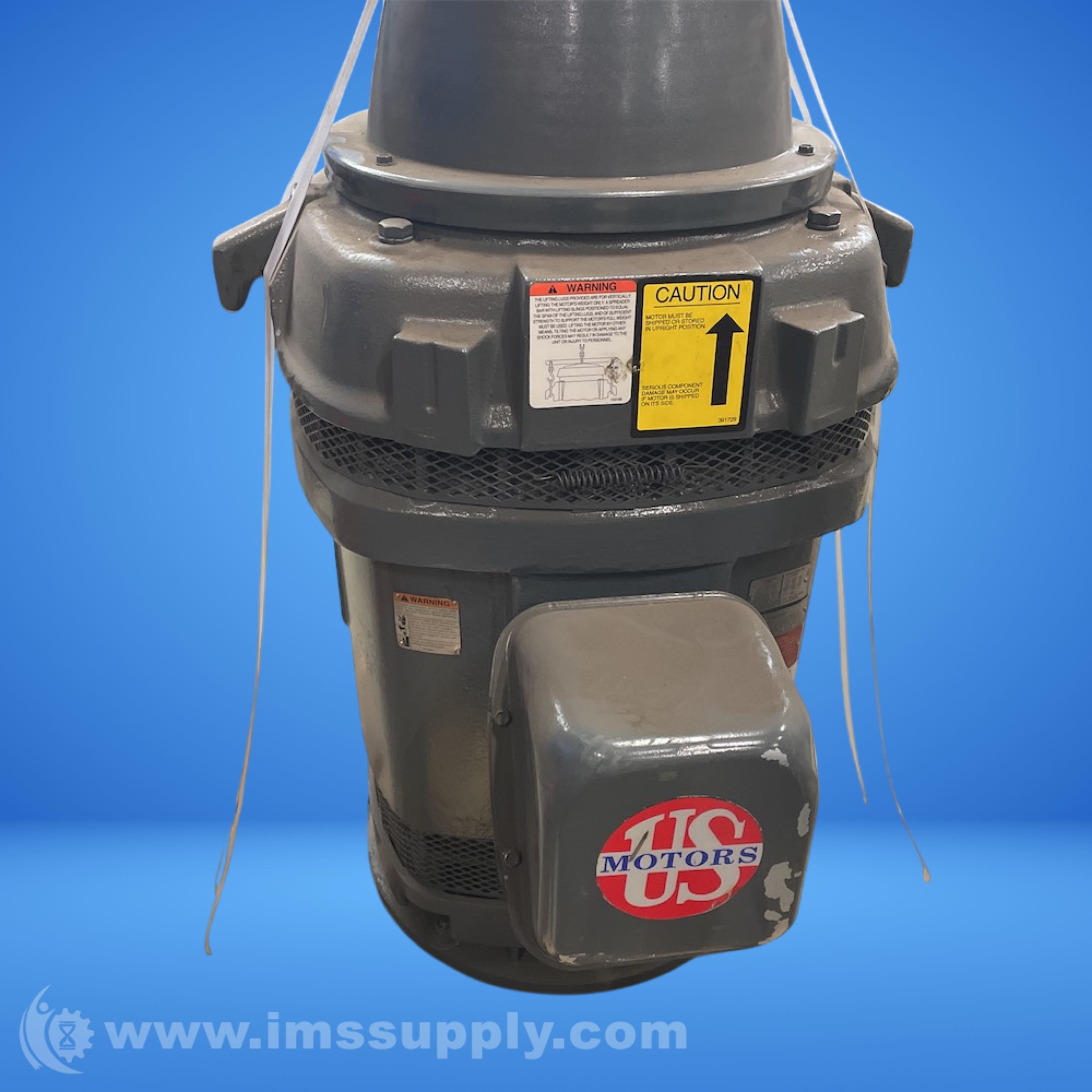

NIDEC HO75V2SLG VERTICAL HOLLOW SHAFT MOTOR
Quick Overview
Manufactured By: NIDEC CORP
Manufacturer Part Number: HO75V2SLG
IMS Product Code: 2147314
Packaging: Sold Individually
Description:
Nidec HO75V2SLG Vertical Hollow Shaft Motor
75 HP, 1800 RPM, 3-Phase, 460V, 60 Hz, 365TP Frame
Specifications
- Amps: 87.0
- Bearings: Ball Bearings
- Coupler: Non-Reverse Ratchet (NRR)
- Diameter: 1 ¼"
- Enclosure: Weather Protected
- Frame: 365TP
- Frequency: 60 Hz
- Height: 31 5/32"
- Horsepower: 75 HP
- Insulation Class: F
- Keyway: 1/4"
- Max Voltage: 460
- Mounting: P-Base
- Phase: 3-Phase
- Rotation: Non-Reversible Ratchet
- RPM: 1800
- Service Factor: 1.15
- Thermal Protection: None
- Thrust: High Thrust
- Type: Vertical Hollow Shaft Motor
- Voltage: 460V
- Weight: 800.00 LBS
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
