NISSEI CORP H2LS-32T-240-040 INDUCTION GEAR MOTOR
Quick Overview
Manufactured By: NISSEI CORP.
Manufacturer Part Number: H2LS-32T-240-040
IMS Product Code: 1810902
Packaging: Sold Individually
Description:

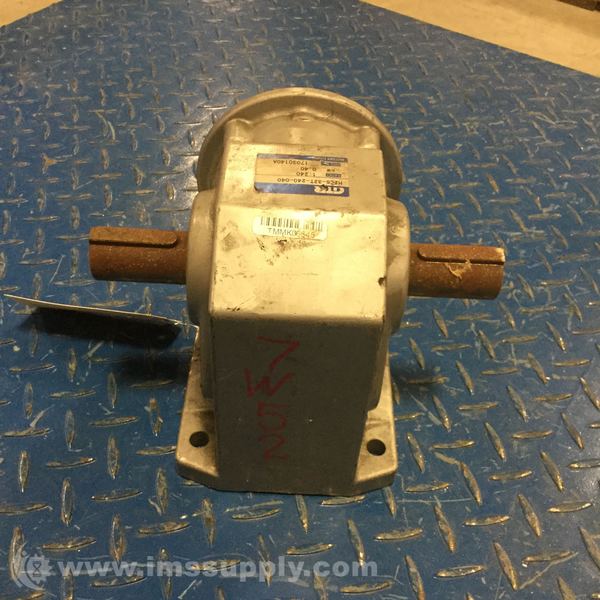

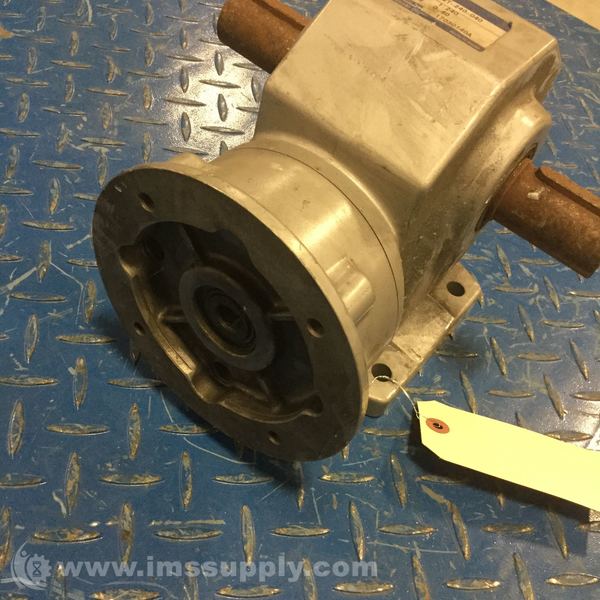

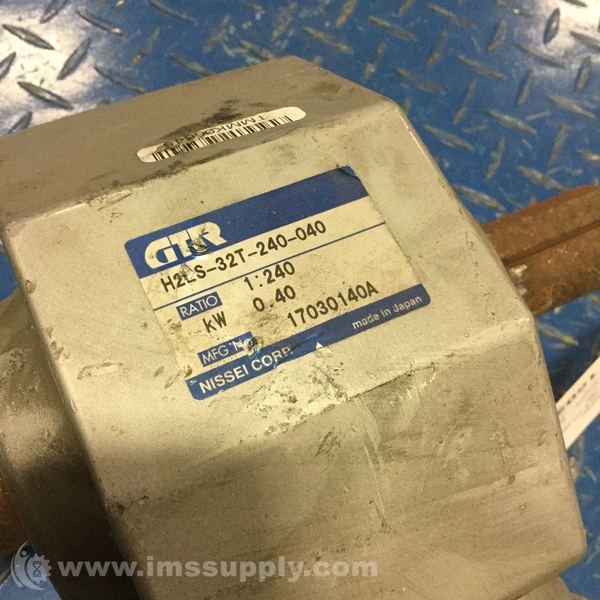

Nissei Corp H2LS-32T-240-040 Induction Gear Motor
Induction gear motor with 0.4kW motor capacity and 1/240 gear ratio.
Specifications
- Series: Induction Gear Motor
- Output Shaft Rotation Speed: 6.3r/min / 50Hz, 7.5r/min / 60Hz
- Output Shaft Allowable Torque: 431 N?m / 50Hz, 431 N?m / 60Hz
- Output Shaft Allowable O.H.L: 4120N
- Allowable Moment of Inertia: 0.0015kg·?
- Gearbox Specification: Right-angle shaft / Foot-mounted
- Case Material: Aluminum
- Frame Size and Output Shaft Diameter: 32 mm
- Gear Ratio (Actual Gear Ratio): 1/240 (1/236)
- Output Shaft Material: Carbon Steel
- Motor Type: S-type gearbox (Specified motor mountable type)
- Motor Capacity: 0.4kW (1/2HP)
- Approximate Mass: 9.5 kg
