NITTA EC3/8-R1/4-C1 PUSH-IN FITTING
Quick Overview
Manufactured By: NITTA
Manufacturer Part Number: EC3/8-R1/4-C1
IMS Product Code: 1809465
Packaging: Sold Individually
Description:

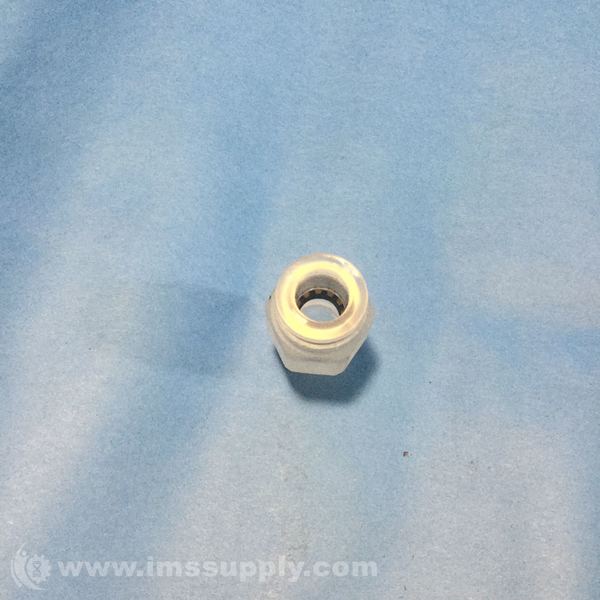

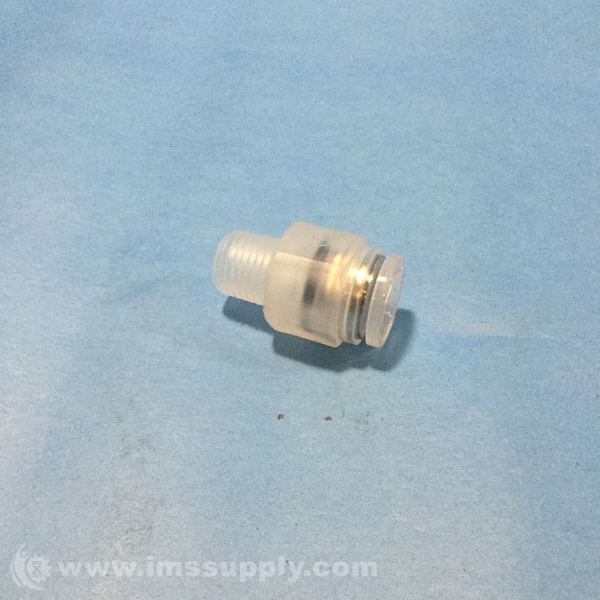

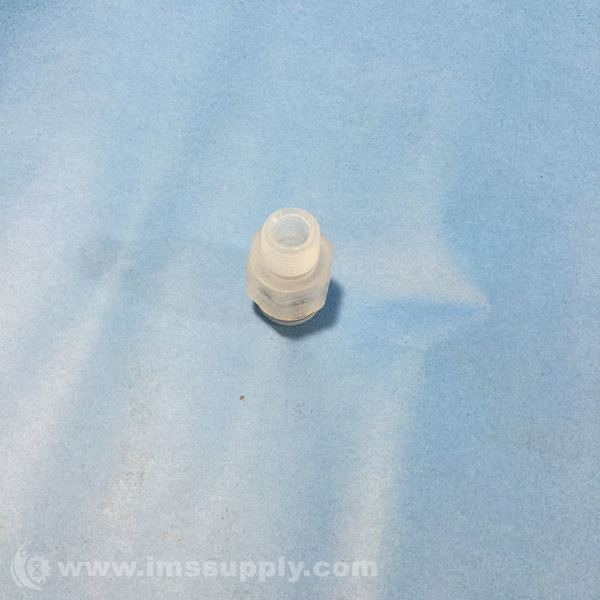

Nitta EC3/8-R1/4-C1 Push-In Fitting
Push-in fitting for fluid and air applications, 3/8 inch tube outer diameter, R1/4 thread size.
Specifications
- Series: Chemi-Fit C1S Series
- Used for: fluid air (clean air), water (pure water)
- Usable temperature range: Air: -4°F to 176°F (-20°C to 80°C)
- Usable temperature range: Water: 32°F to 176°F (0°C to 80°C)
- Maximum Working Pressure: 0.7 MPa (at 20?)
- Negative Pressure Performance: -99.975 kPa
- Applicable tube outer diameter: 3/8 inch
- T-thread size: R1/4
- L: 1.3 inches (34 mm)
- A: 0.5 inches (12 mm)
- F Tube Insert Length: 0.8 inches (20 mm)
- H x F Double Sided Width: 0.7 x 0.8 inches (19.0 x 21.0 mm)
- D: 0.7 inches (18 mm)
- d1: 8 mm
- Effective cross-sectional area: 1.4 inches (35 mm)
- Weight: 0.3 oz (7 g)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 10 In Stock
