NITTO KOHKI F35-3P HYDRAULIC QUICK CONNECTOR
Quick Overview
Manufactured By: NITTO KOHKI
Manufacturer Part Number: F35-3P
IMS Product Code: 2123720
Packaging: Sold Individually
Description:

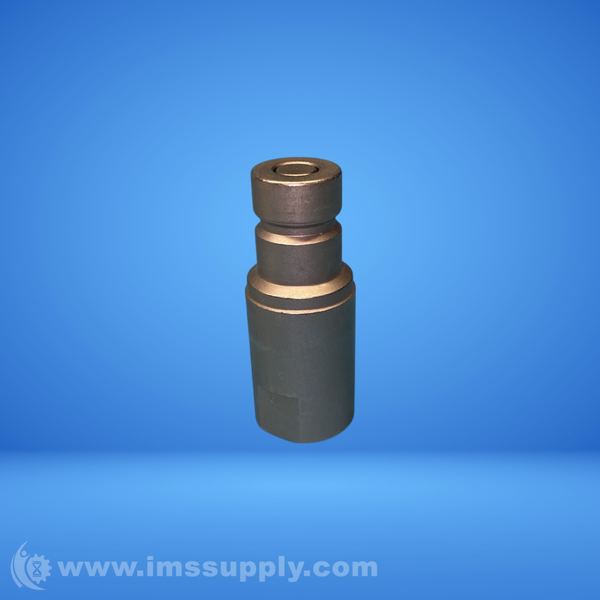

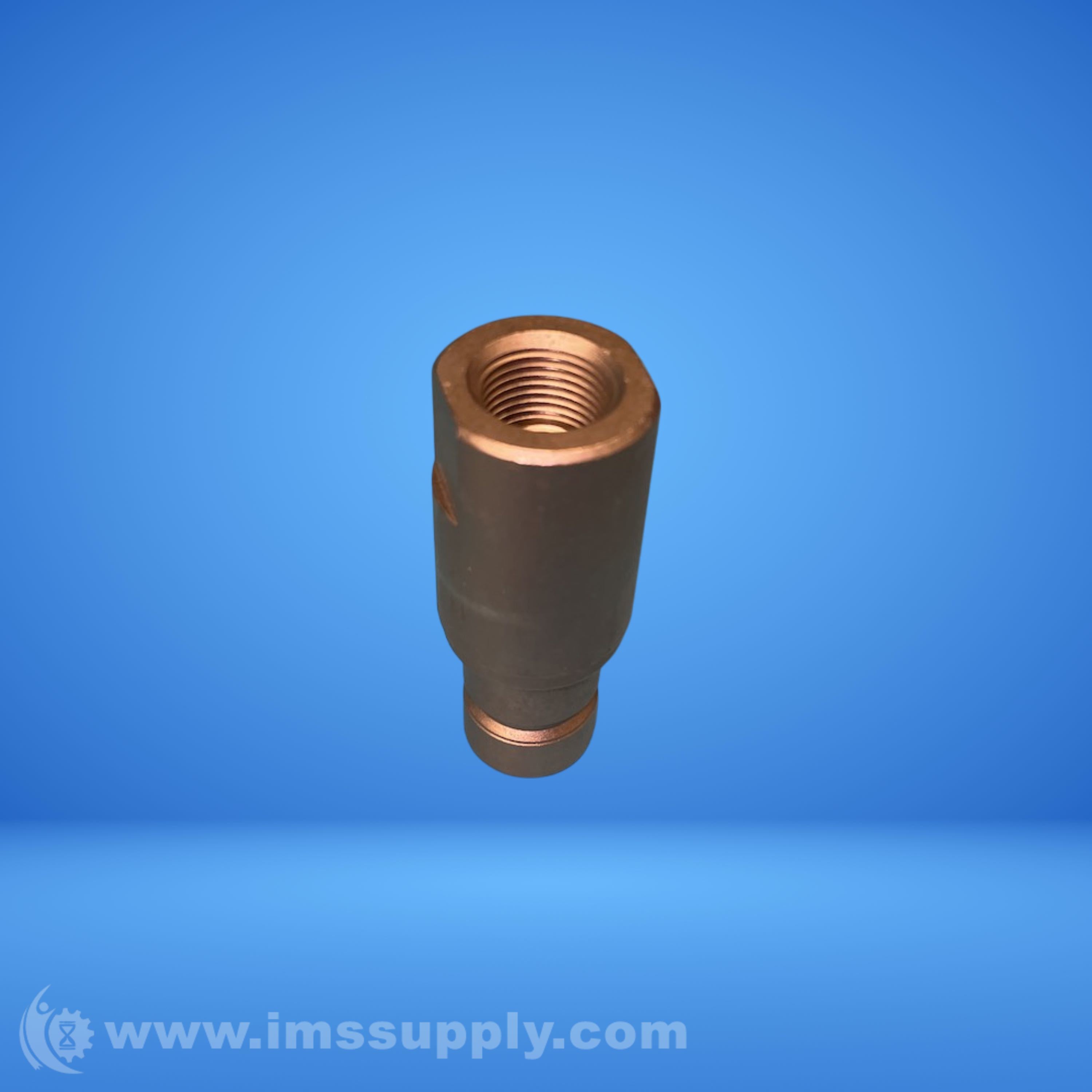

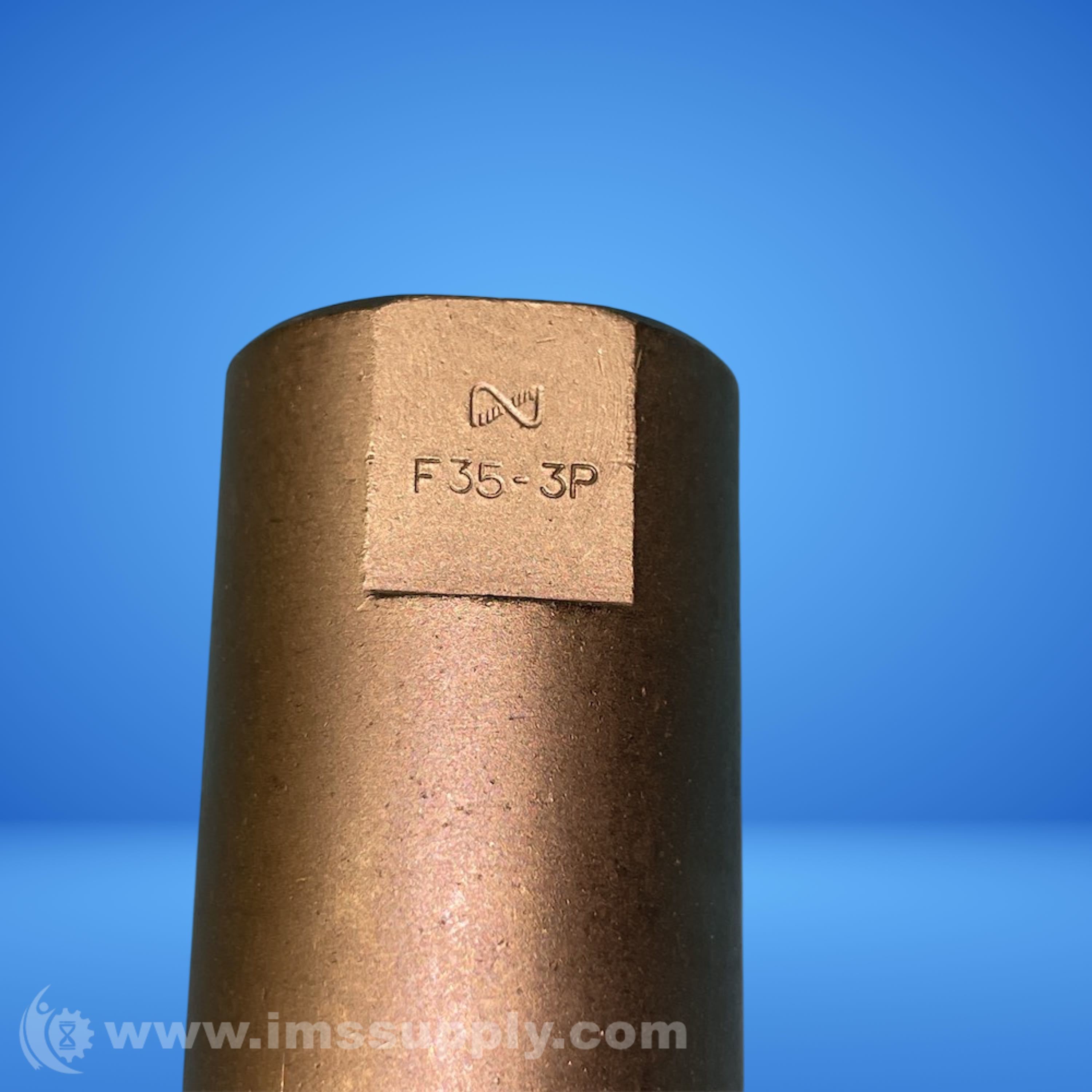

Nitto Kohki F35-3P Hydraulic Quick Connector
Flat contact face design reduces spill upon disconnection. Flat contact face design makes it easy to clean dust and foreign matter adhered on the surface of coupling so as to prevent them from entering inside and thus causing faulty operation of connection or disconnection. Flat contact face design minimizes air admixture during connection to keep the possible malfunction of equipment caused by the air bubbles in the hydraulic line at minimum level. Push-to-connect operation. Separation prevention mechanism is easily locked by turning the sleeve after connection. It prevents accidental disconnection even when vibration or impact is applied to CUPLA. The special design reduces pressure loss considerably, and especially suited to hydraulic applications in which big flow is needed. Both socket and plug have built-in automatic shut-off valves that prevent fluid spill out on disconnection.
Specifications
- Application: R 3/8
- Weight: 190 Grams
- Material: Special Steel (Nickel Plated)
- Seal Material: Fluoro Rubber (FKM (X-100))
- Type: Hydraulic Quick Connector
- Part Number: F35-3P
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 19 minutes.
