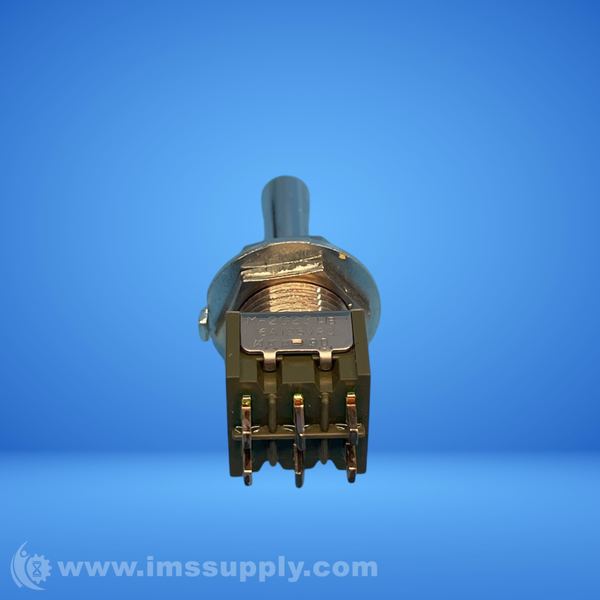

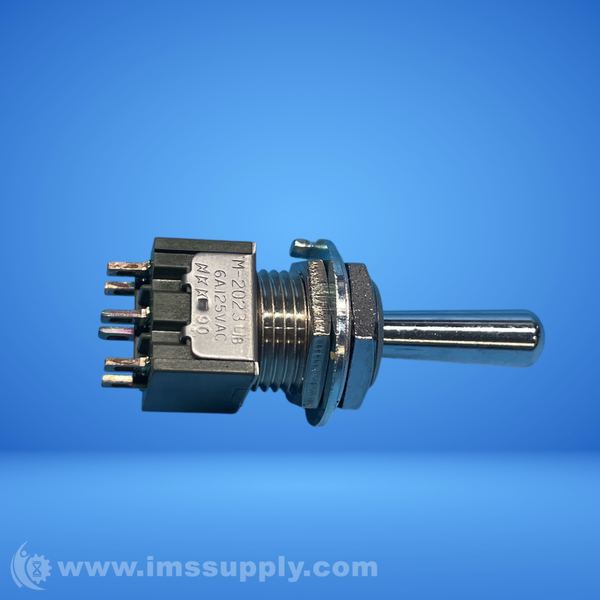

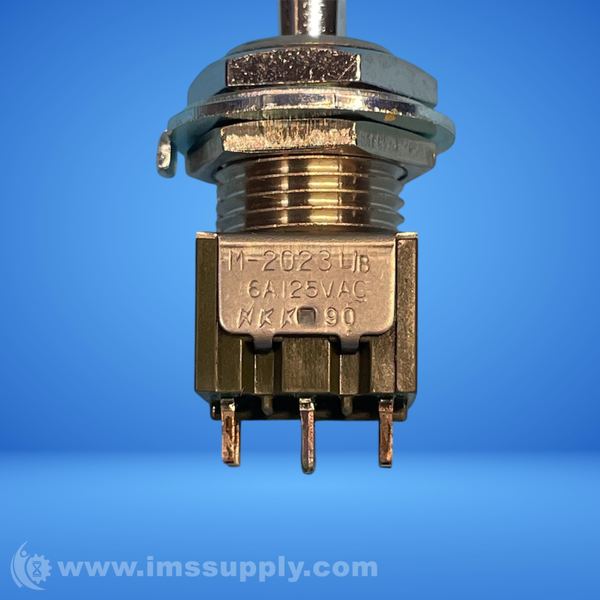

NKK M-2023 TOGGLE SWITCH
Quick Overview
Manufactured By: NKK
Manufacturer Part Number: M-2023
IMS Product Code: 2157730
Packaging: Sold Individually
Description:
NKK M-2023 Toggle Switch
2 Pole Double Throw toggle switch with ON-OFF-ON operation mode, solder terminal, and M6 bushing size.
Specifications
- Series: M
- Contact Specification: Silver
- Current Capacity: 6A 125V AC, 3A 250V AC, 3A 30V DC
- Operating Temperature Range: -30�C to +85�C
- Number of Poles: 2 Pole
- Operation Mode: ON-OFF-ON
- Terminal Type: Solder
- Mounting Method: Screw Mounting
- Panel Mounting Hole Dimensions: 6.5 mm
- Maximum Panel Thickness: 5.5 mm
- Certifications: UL, RoHS
- Contact Resistance: Less than 10 mO
- Insulation Resistance: 1000 MO at DC 500 V
- Case Material: Giaryl Butalate resin
- Lever Material: Copper alloy
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
