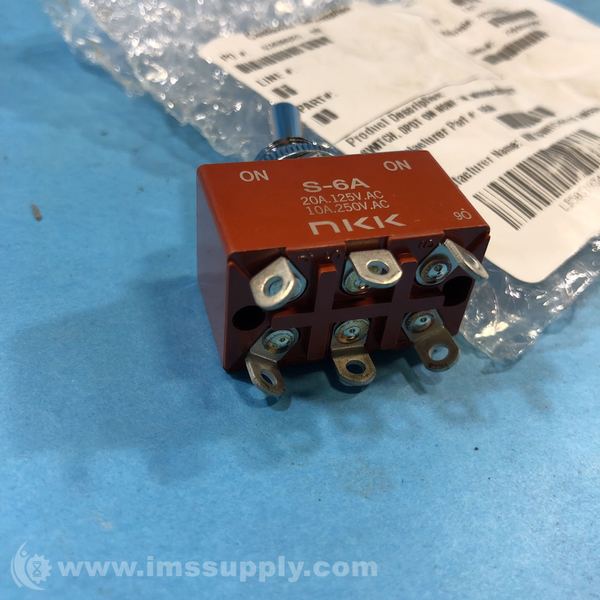

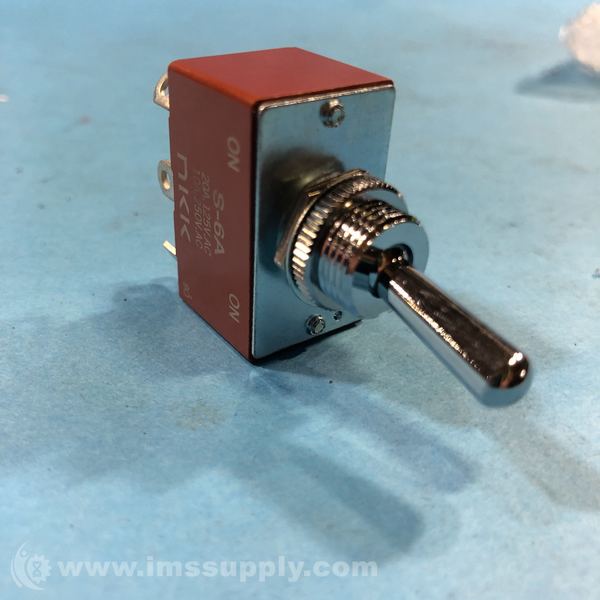

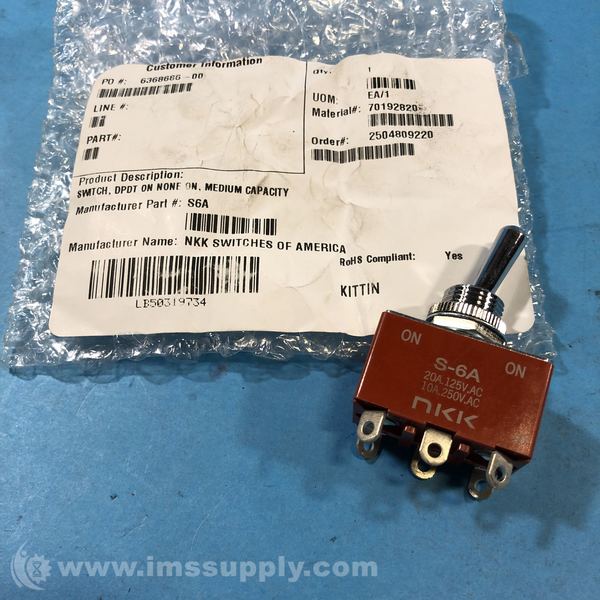

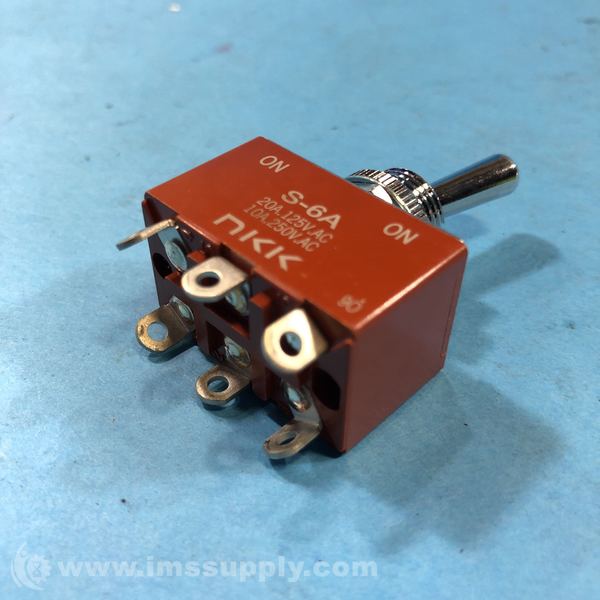

NKK S6A DPDT TOGGLE SWITCH
Quick Overview
Manufactured By: NKK
Manufacturer Part Number: S6A
IMS Product Code: 1900652
Packaging: Sold Individually
Description:
NKK S6A DPDT Toggle Switch
A DPDT toggle switch with On-On function, rated for 20A at 125V AC or 30V DC. Panel mount with solder lug termination.
Specifications
- Circuit: DPDT
- Function: On-On
- Current Rating: 20A
- Voltage Rating - AC: 125 V
- Voltage Rating - DC: 30 V
- Actuator Type: Standard Round
- Actuator Length: 17.50mm
- Mounting Type: Panel Mount
- Panel Cutout Dimensions: Circular - 12.50mm Dia
- Bushing Thread: M12 x 1
- Termination Style: Solder Lug
- Electrical Life: 25,000 Cycles
- Operating Temperature: -10 degrees C ~ 70 degrees C
