NORMA 4-150 STD SA/A 105 540 B16.5 THREADED FLANGE
Quick Overview
Manufactured By: NORMA
Manufacturer Part Number: 4-150 STD SA/A 105 540 B16.5
IMS Product Code: 1760284
Packaging: Sold Individually
Description:

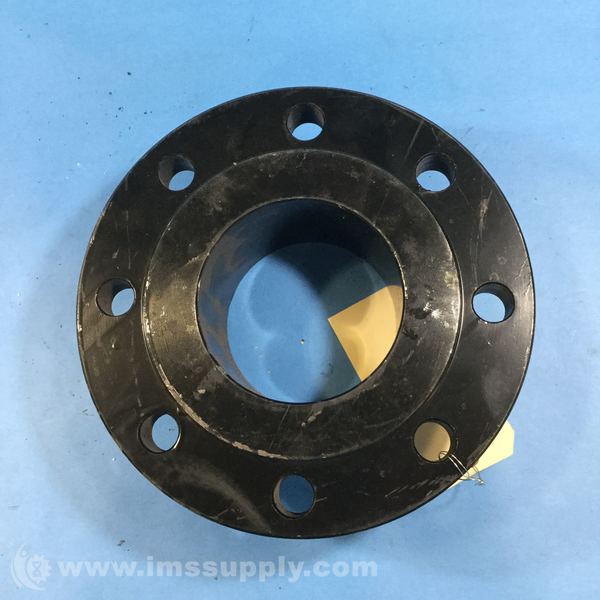

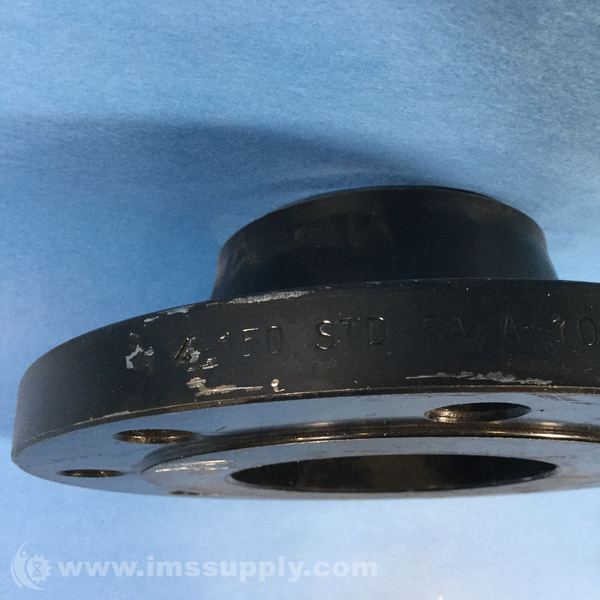

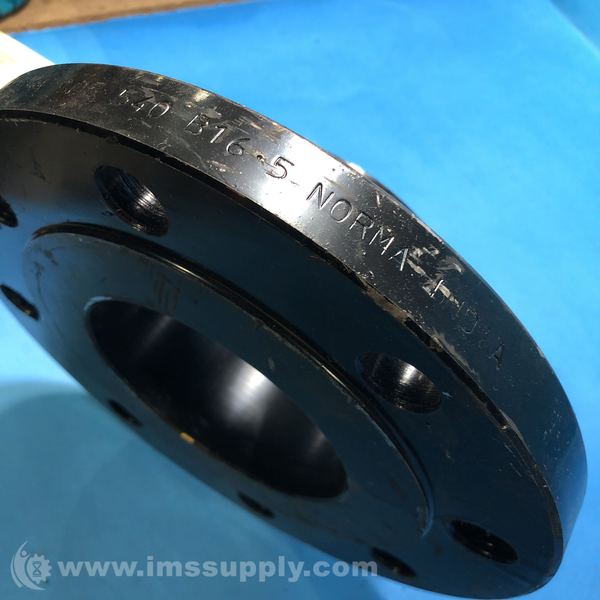

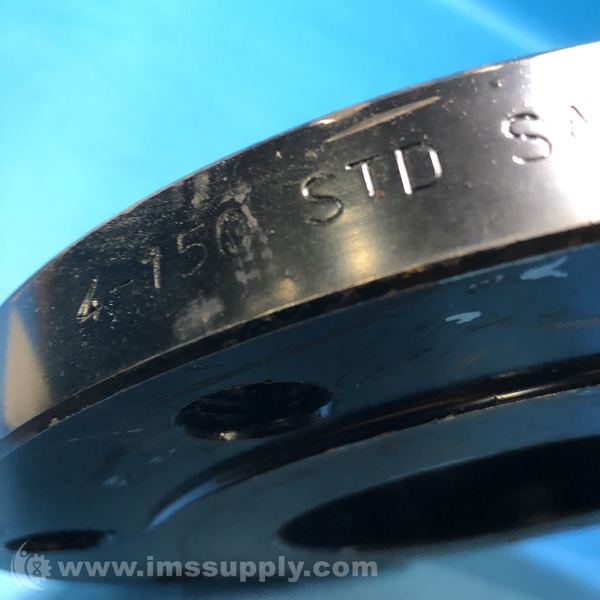

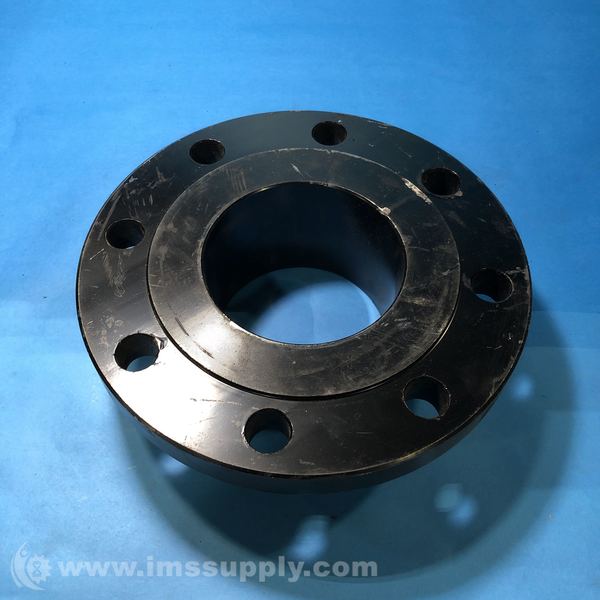

Norma 4-150 STD SA/A 105 540 B16.5 Threaded Flange
Carbon Steel Threaded Flange with Raised Face and NPT Threaded End, ASME B16.5 Design Spec, 150 Pressure Class, 4" Size
Specifications
- Design Spec: ASME B16.5
- End: RF X NPT
- Material: ASTM/ASME A/SA105
- Pressure Class: 150
- Size: 4"
- # Bolt Holes - Size: 8 - 0.75"
- Bolt Circle Diameter: 7.50"
- Flange Bore: 4" NPT (ANSI/ASME B1. 20.1)
- Flange OD: 9.00"
- Flange Thickness: 0.94"
- Facing Type: Raised Face (RF) x Female NPT Threaded
- Bore: Standard (STD) Bore
- Material Type: Carbon Steel
- Product Type: Threaded Flange
- Category Type: Pipe Flanges
- Pressure Rating (psi): 150
- Number of Bolt Holes: 8
- Style: Raised Face
- Schedule: STD
- Weight (lbs): 13
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
