NOTIFIER NDM-100 DUAL MONITOR MODULE
Quick Overview
Manufactured By: NOTIFIER CO
Manufacturer Part Number: NDM-100
IMS Product Code: 2149299
Packaging: Sold Individually
Description:

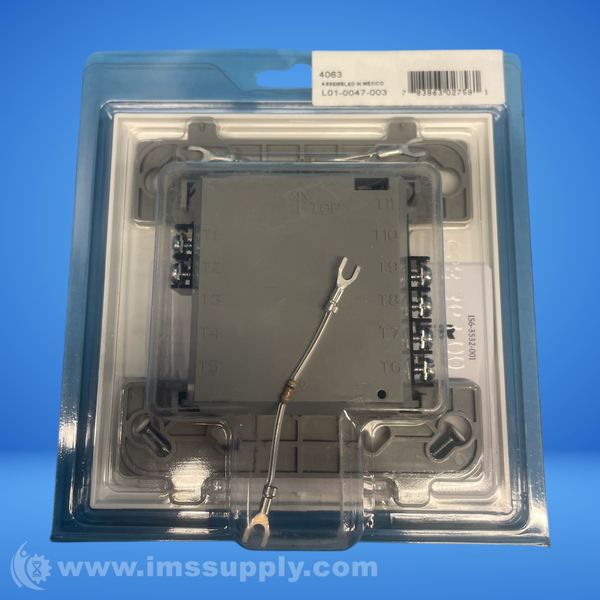

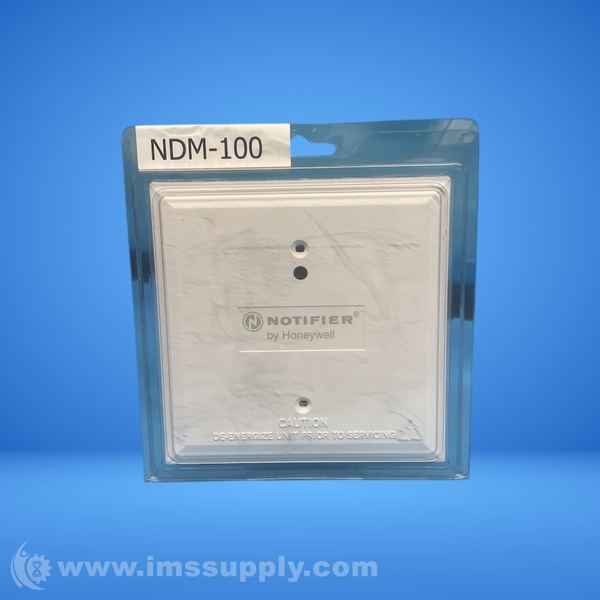

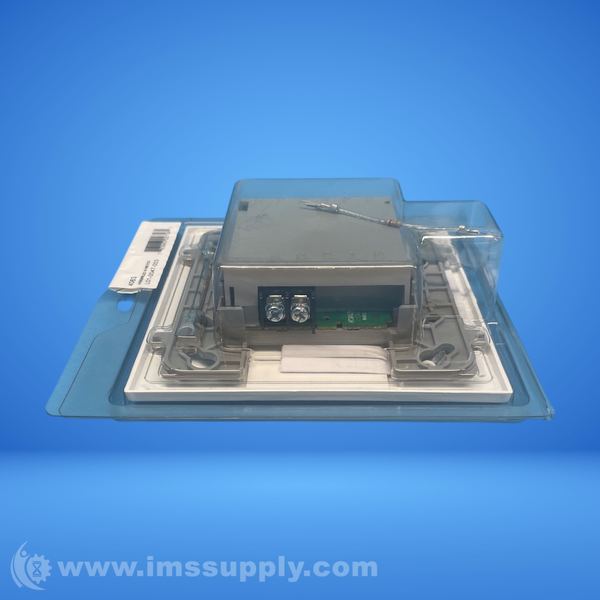

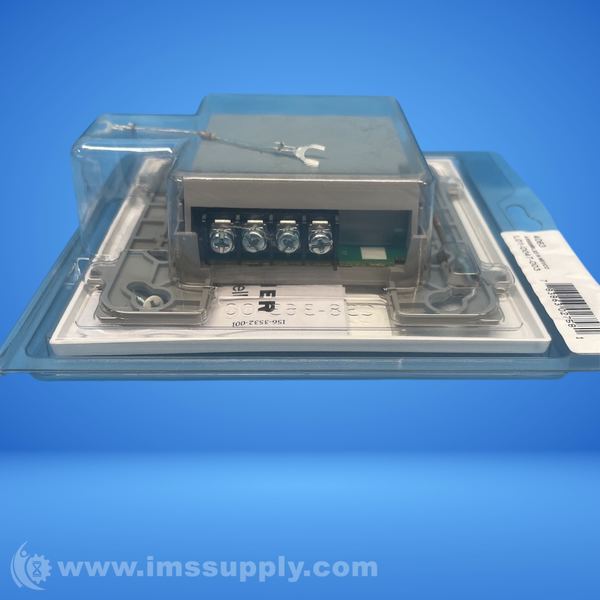

Notifier NDM-100 Dual Monitor Module
A standard-sized dual monitor module that monitors and supervises two independent two-wire Style B (Class B) dry-contact initiating device circuits (IDCs) at two separate, consecutive addresses in intelligent, two-wire systems. It provides two independent two-wire initiating device circuits (IDCs) at two separate, consecutive addresses and is capable of monitoring normally open contact fire alarms. The module has a single panel-controlled LED.
Specifications
- Normal operating voltage range: 15 to 32 VDC
- Maximum current draw: 6.4 mA (LED on)
- Maximum IDC Voltage: 11 Volts
- Average operating current: 750 ľA (LED flashing)
- Maximum IDC wiring resistance: 1,500 Ohms
- Maximum IDC Current: 240 ľA
- Temperature range: 32 degrees to 120 degrees F (0 degrees to 49 degrees C)
- Humidity range: 10% to 93% (non-condensing)
- Dimensions: 4.5 inches (11.43 cm) high x 4 inches (10.16 cm) wide x 1.25 inches (3.175 cm) deep
- Weight: 2 lbs
