NSD CORP VRE-P062FAC ABSOLUTE ENCODER
Quick Overview
Manufactured By: NSD CORP
Manufacturer Part Number: VRE-P062FAC
IMS Product Code: 1915676
Packaging: Sold Individually
Description:

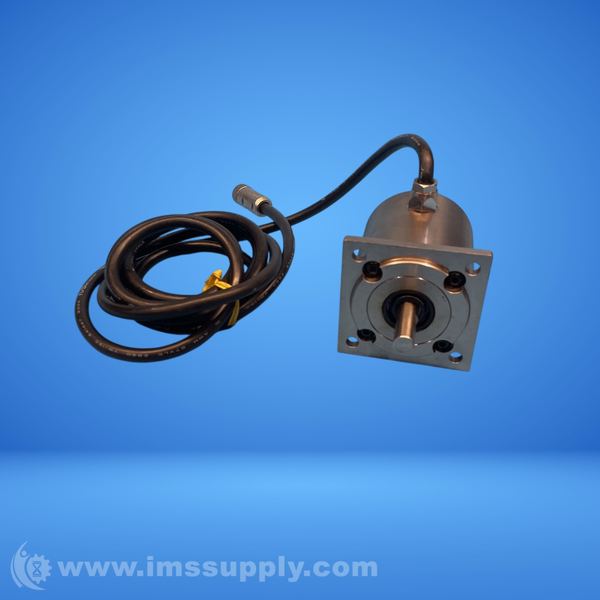

NSD CORP VRE-P062FAC Absolute Encoder
Single-turn absolute position sensor measuring angular position through magnetic reluctance change.
Specifications
- Type: P062
- Mounting: F
- Shaft shape: A
- Connector type: C
- Total number of turns: 1
- Number of divisions: 8192(2^13)
- Mass: 1.3 kg
- Linearity error: 1 degree Max.
- Moment of inertia: 6.4�10^-6 kg�m^2 {6.5�10^-5 kgf�cm�s^2}
- Starting torque: 4.9�10^-2 N�m {0.5 kgf�cm} or less
- Permissible shaft load Radial: 98 N {10 kgf}
- Thrust: 49 N {5 kgf}
- Permissible mechanical speed: 3600
- Ambient temperature Operating: -20 ~ +60 ?
- Storage: -30 ~ +90 ?
- Vibration resistance: 2.0�10^2 m/s^2 {20G} 2000Hz up/down 4h, forward/back 2h
- Shock resistance: 4.9�10^3 m/s^2 {500G} 0.5ms up/down/forward/back 3 times each
- Protection rating: IP52f(JEM1030)
- Max. sensor cable length Standard cable: 100 m (3P-S)
- Robotic cable: 100 m (3P-RBT)

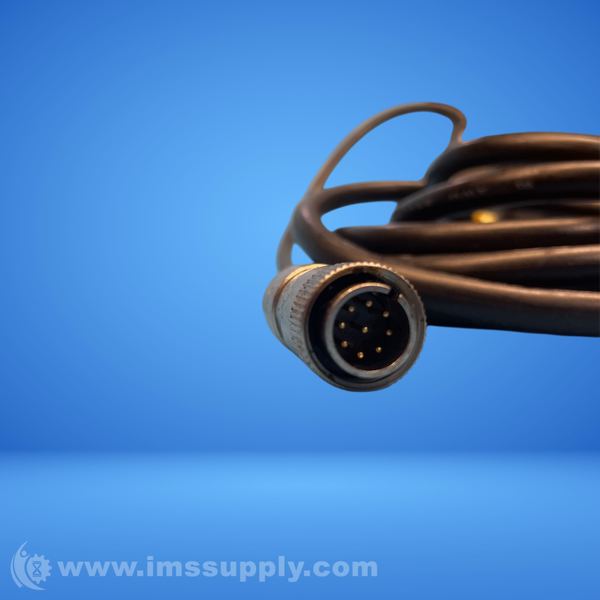

- Interconnecting sensor cable: 2 m
- Output Type: Analog
- Actuator Type: Shaft
- Country/Region of Manufacture: Japan
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
