NSD VRE-16TS062FAL ROTARY ENCODER
Quick Overview
Manufactured By: NSD CORPORATION
Manufacturer Part Number: VRE-16TS062FAL
IMS Product Code: 2150021
Packaging: Sold Individually
Description:

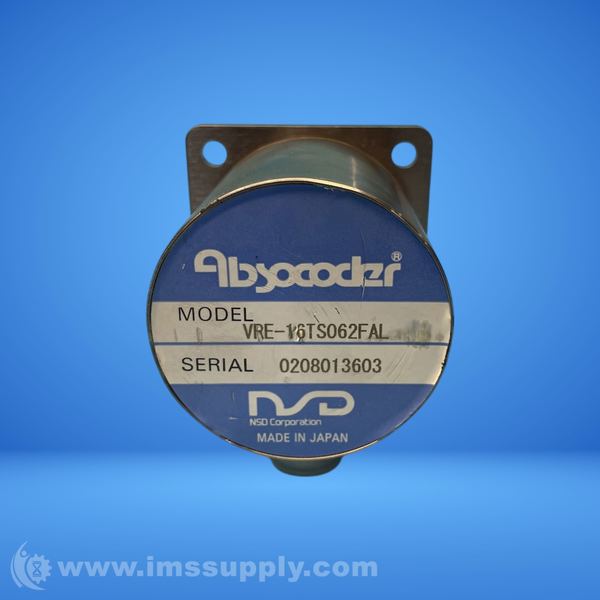

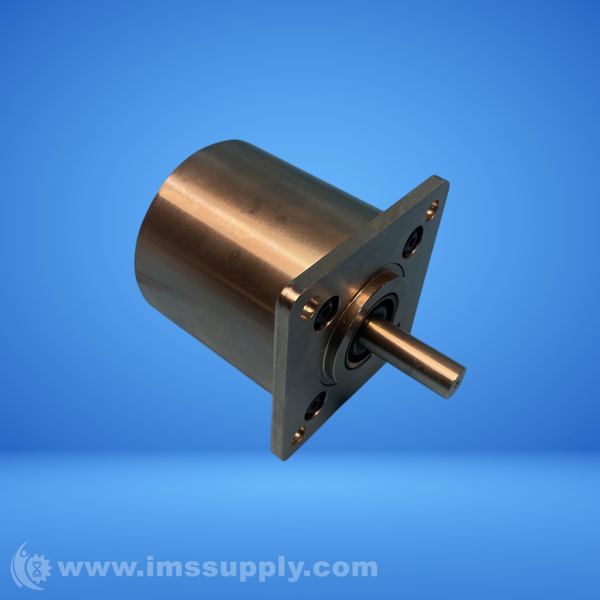

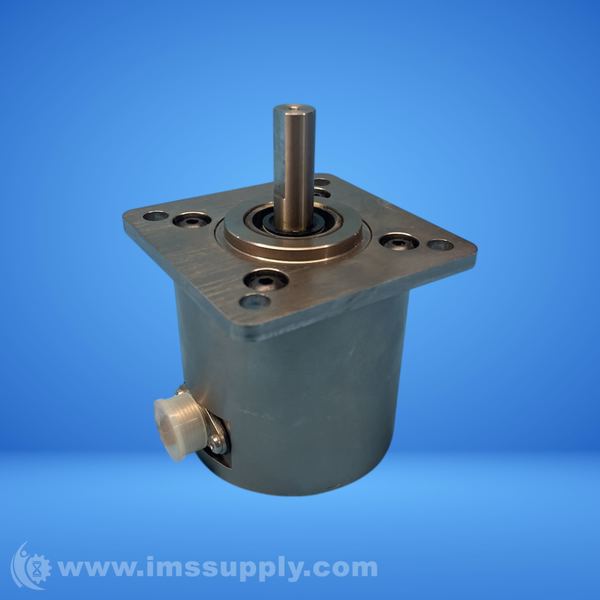

NSD VRE-16TS062FAL Rotary Encoder
Single-turn Type ABSOCODER Sensor with 65536 divisions and IP52f protection rating.
Specifications
- Brand: NSD
- Model: VRE-16TS062FAL
- Type: P[Standard] 16TS[High-resolution]
- Mounting: S[Servo-mount type] F[Flange-mount type]
- Shaft shape: A[Flat] B[Key way]
- Connector type: C[Cable & connector] L[connector]
- Total number of turns: 1
- Number of divisions: 65536(2^16)
- Mass: 1.3 kg
- Linearity error: 0.067 degrees Max.
- Moment of inertia: 7.4×10^-6 kg·m^2
- Starting torque: 4.9×10^-2 N·m or less
- Permissible shaft load Radial: 78 N
- Thrust: 39 N
- Permissible mechanical speed: 3600
- Ambient temperature Operating: -20 to +60 degrees
- Storage: -30 to +90 degrees
- Vibration resistance: 2.0×10^2 m/s^2
- Shock resistance: 4.9×10^3 m/s^2
- Protection rating: IP52f(JEM1030)
- Robotic cable length: 100m(3S-RBT)
