NSK 1315KJ SELF-ALIGNING BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 1315KJ
IMS Product Code: 1803768
Packaging: Sold Individually
Description:

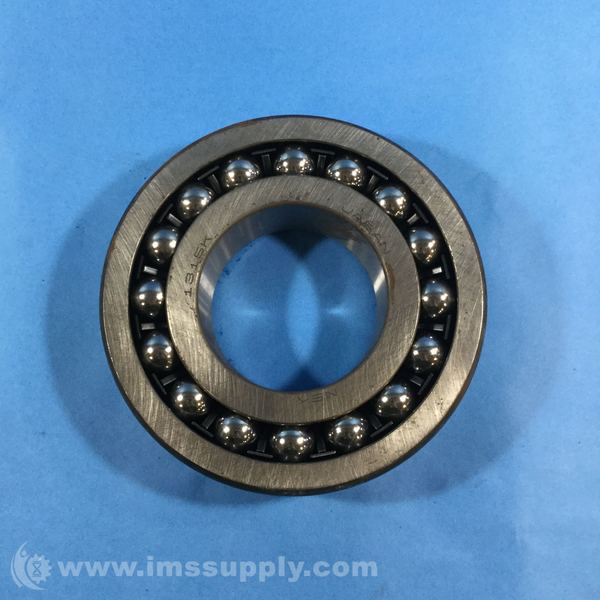

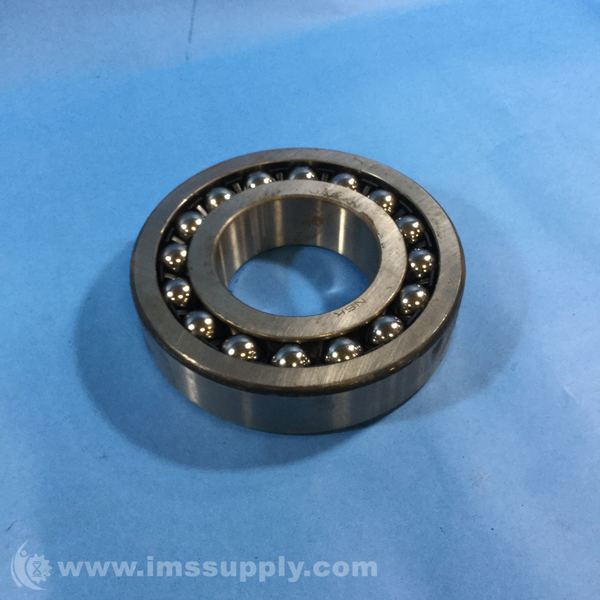

NSK 1315KJ Self-Aligning Ball Bearing
Self-aligning ball bearing with 75 mm bore and a 1:12 tapered bore for mounting on adapter sleeves. It features a pressed steel cage and is designed to accommodate shaft misalignment. This bearing tolerates shaft misalignment in conveyor head shafts, fans, and woodworking machinery.
Specifications
- Bore Type: Tapered 1:12
- Bore Diameter: 75 mm
- Outside Diameter: 160 mm
- Overall Width: 37 mm
- Closure Type: Open
- Contact Angle: Not Applicable
- Internal Clearance: C0
- Bearing Type: Self-Aligning Ball Bearings
- Precision Rating: ABEC1, P0
- Max Rpm: 4500 rpm
- Cage Material: Steel Cage
- Finish Coating: Uncoated
- Series: 1300
- Radial Dynamic Load Capacity: 80000 N
- Dynamic Load Rating: 80 kN
- Static Load Rating: 30 kN
- Grease Limiting Speed: 3800 r/min
- Oil Limiting Speed: 4500 r/min
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Tuesday, May 26, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
