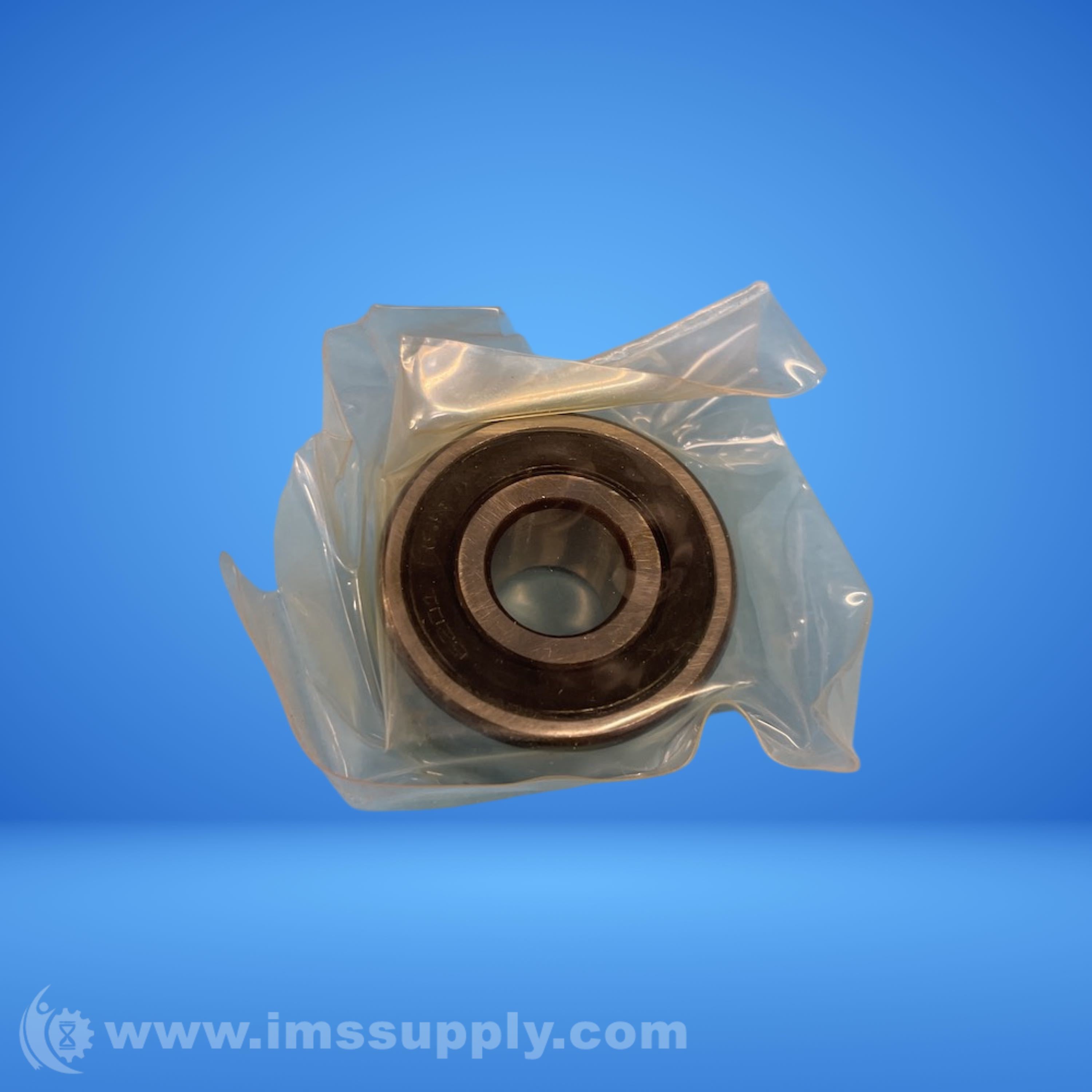

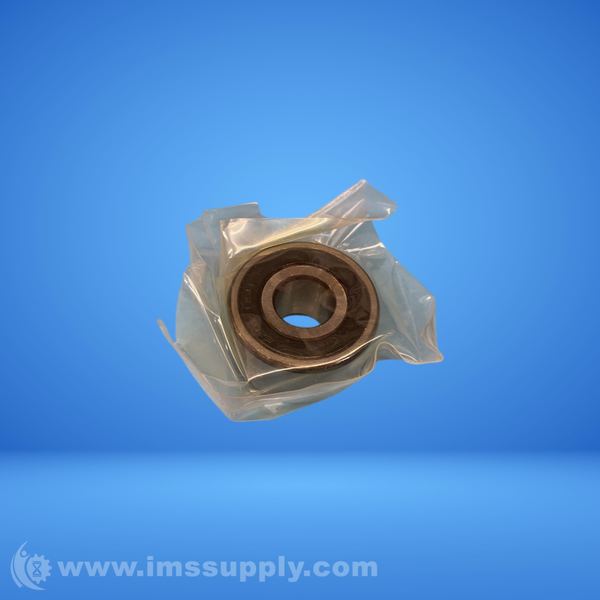

NSK 5201-2RSTNC3 DOUBLE ROW ANGULAR CONTACT BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 5201-2RSTNC3
IMS Product Code: 2129389
Packaging: Sold Individually
Description:
NSK 5201-2RSTNC3 Double Row Angular Contact Bearing
Double row angular contact bearing with 12 mm bore diameter, 32 mm outside diameter, and 15.9 mm width. Features a 25° contact angle, C3 internal clearance, and synthetic resin cage. Rated for maximum operating temperature of +250 °F and maximum speed of 20,000 rpm with oil lubrication.
Specifications
- Bore Diameter: 12 mm
- Outside Diameter: 32 mm
- Width: 15.9 mm
- Contact Angle: 25°
- Internal Clearance: C3
- Cage Material: Synthetic Resin
- Closure Type: Open
- Radial Dynamic Load Capacity: 1070 kgf
- Radial Static Load Capacity: 590 kgf
- Max Rpm: 20000 rpm
- Operating Temperature Range: Maximum of +250 °F
- Precision Rating: ABEC 1 (ISO Class Normal)
- Series: 52
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
