NSK 5202ZZTN ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 5202ZZTN
IMS Product Code: 1923864
Packaging: Sold Individually
Description:

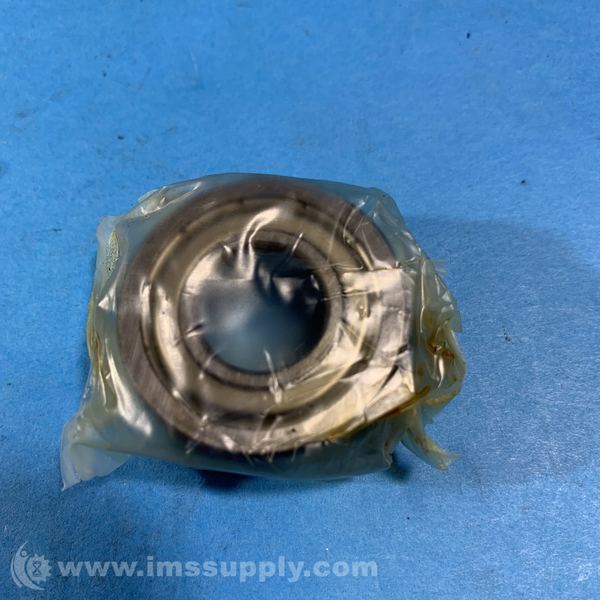

NSK 5202ZZTN Angular Contact Ball Bearing
Angular contact ball bearing with double shield closure, 15mm bore diameter, 35mm outside diameter, 15.9mm width.
Specifications
- Bore Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 15.9 mm
- Contact Angle: 25 degrees
- Closure Type: Double Shield
- Load Capacity: 117000 N Dynamic/7050 N Static
- Cage Material: Polyamide
- Maximum Speed: 13000 rpm Grease/17000 rpm Oil
- Seal Type: 2 Metal Shields
- Precision Class: ABEC 1 | ISO P0
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 15 hours and 16 minutes.
