NSK 6005ZC3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6005ZC3
IMS Product Code: 2140801
Packaging: Sold Individually
Description:

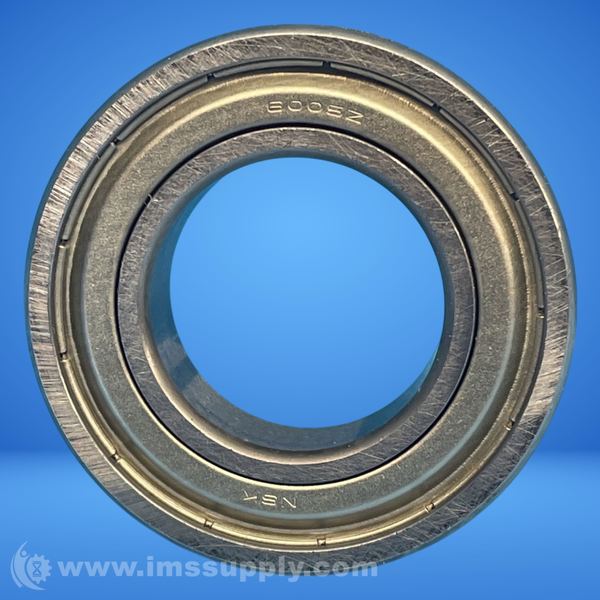

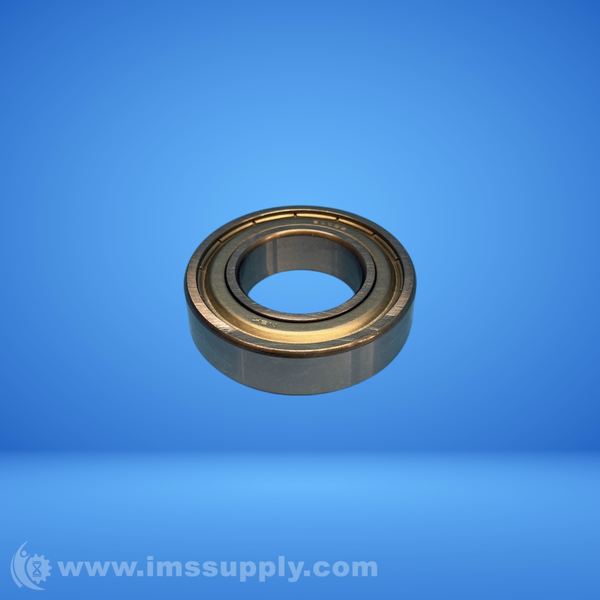

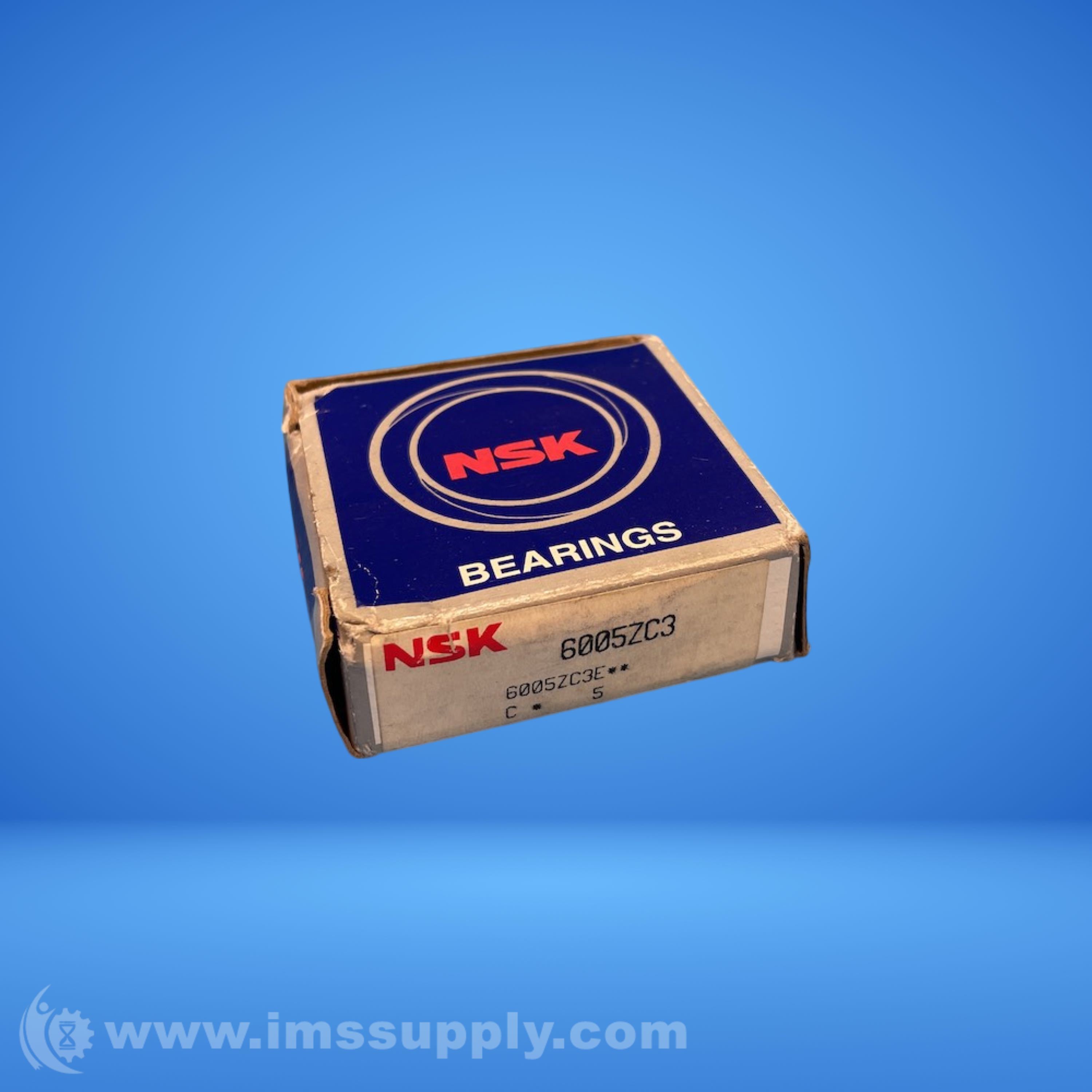

NSK 6005ZC3 Deep Groove Ball Bearing
Single row deep groove ball bearing with single shield, 25 mm bore diameter, 47 mm outside diameter, 12 mm width, C3 internal clearance.
Specifications
- Bore Type: Straight
- Bore Diameter: 25 mm
- Outside Diameter: 47 mm
- Width: 12 mm
- Closure Type: Single Shielded
- Row Type: Single Row Non-Fill Slot
- Internal Clearance: C3
- Precision Rating: ABEC1, P0
- Cage Material: Steel
- Dynamic Load Rating: 10.1 kN
- Static Load Rating: 5.85 kN
- Limiting Speed Rating: 15000 r/min
- Maximum Speed: 18000 rpm Grease/22000 rpm Oil
- Temperature Rating: -10 to 110 degrees C
