NSK 6201ZZC3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6201ZZC3
IMS Product Code: 1907938
Packaging: Sold Individually
Description:

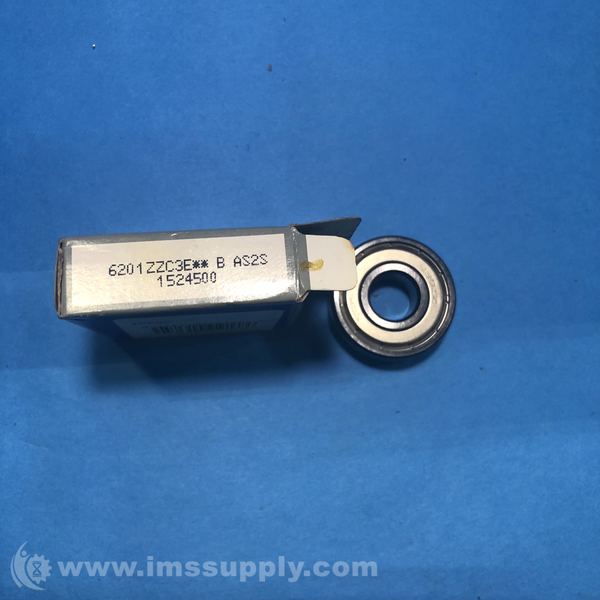

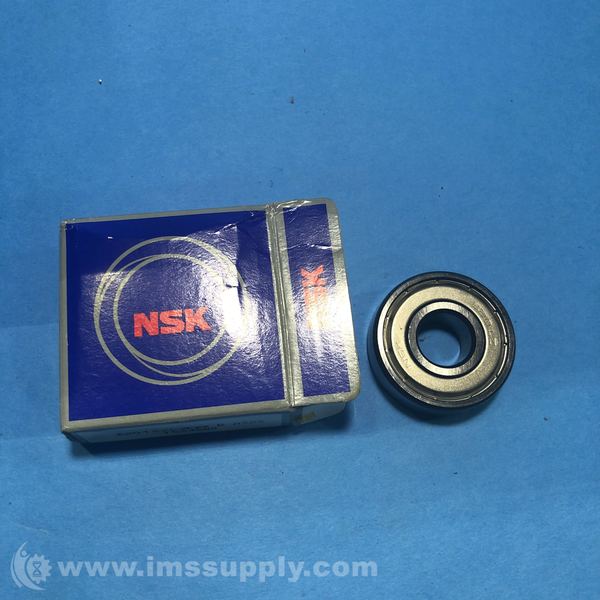

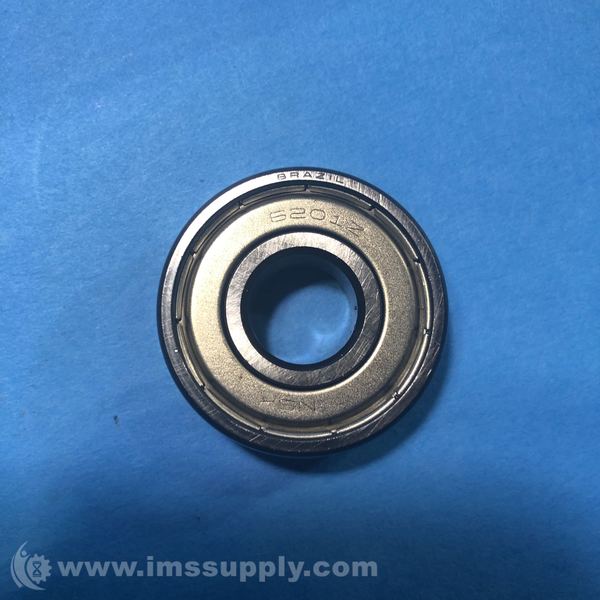

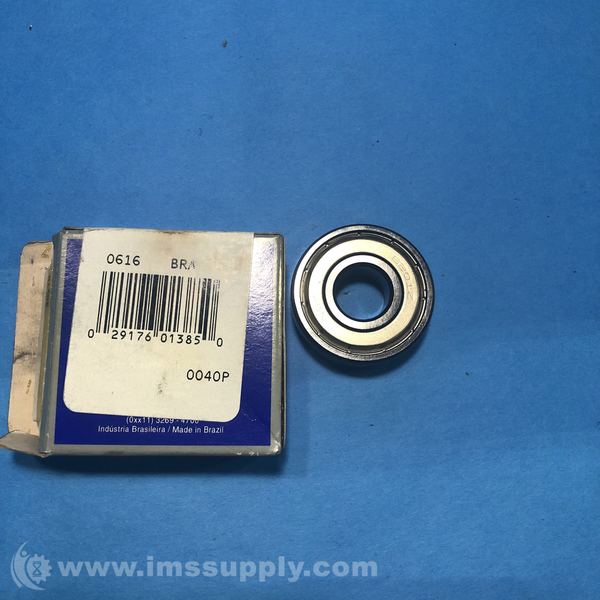

NSK 6201ZZC3 Deep Groove Ball Bearing
Deep Groove Ball Bearing - Double Sealed, Straight Bore, 12 mm ID, 32 mm OD, 10 mm Width, Single Row Non-Fill Slot
Specifications
- Bore Type: Straight
- Bore Diameter: 12 mm
- Outside Diameter: 32 mm
- Overall Height: 10 mm
- Overall Width: 10 mm
- Closure Type: Double Sealed
- Row Type: Single Row Non-Fill Slot
- Internal Clearance: C3
- Cage Material: Steel
- Precision Rating: ABEC 1 (ISO Class Normal)
- Max Rpm: 28000 rpm
- Radial Dynamic Load Capacity: 6800 N
- Radial Static Load Capacity: 3050 N
- Material: bearing steel
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 13 hours and 20 minutes.
