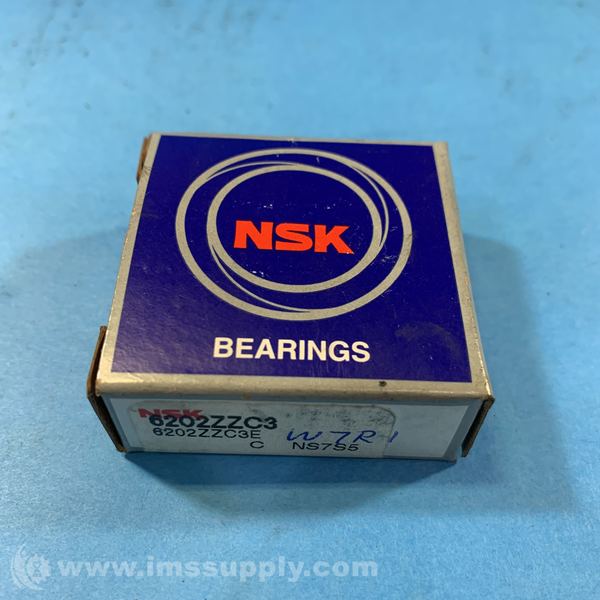

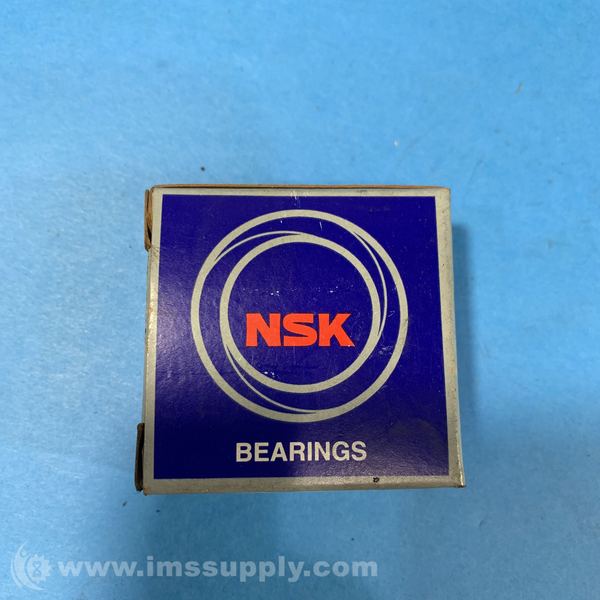

NSK 6202ZZC3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6202ZZC3
IMS Product Code: 1924862
Packaging: Sold Individually
Description:
NSK 6202ZZC3 Deep Groove Ball Bearing
Single Row Radial Ball Bearing, Double Shielded, 15 mm ID, 35 mm OD, 11 mm Width
Specifications
- Bore Type: Straight
- Bore Diameter: 15 mm
- Outside Diameter: 35 mm
- Overall Width: 11 mm
- Closure Type: Double Shielded
- Row Type: Single Row Non-Fill Slot
- Internal Clearance: C3
- Operating Temperature Range: -10 to +110 degrees C
- Precision Rating: ABEC 1 (ISO Class Normal)
- Cage Material: Steel
- Max Rpm: 24000 rpm
- Series: 62
- Radial Dynamic Load Capacity: 7650 N
- Radial Static Load Capacity: 3750 N
- Weight: 0.09 lbs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
Ships today if ordered in the next 13 hours and 20 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 20 minutes.
