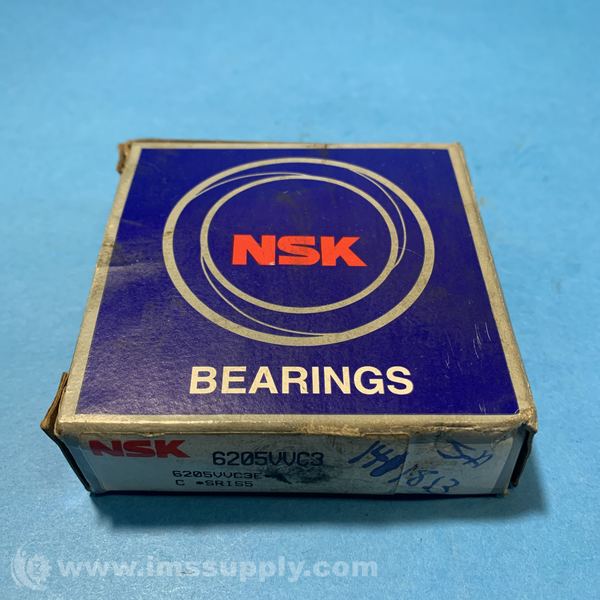

NSK 6205VVC3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6205VVC3
IMS Product Code: 1923789
Packaging: Sold Individually
Description:
NSK 6205VVC3 Deep Groove Ball Bearing
Deep Groove Ball Bearing - Straight Bore, 25 mm ID, 52 mm OD, 15 mm Width, Double Sealed, Without Snap Ring
Specifications
- Bore Type: Straight
- Bore Diameter: 25 mm
- Outside Diameter: 52 mm
- Overall Height: 15 mm
- Overall Width: 15 mm
- Closure Type: Double Sealed
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: C3
- Seal Type: Two Non-Contact Seals
- Bearing Material: Steel
- Maximum RPM (Grease): 15000 rpm
- Maximum RPM (Oil): 18000 rpm
- Radial Dynamic Load Capacity: 3300 lbf
- Radial Static Load Capacity: 1770 lbf
- Weight: 0.29 lbs
- Operating Temperature: -30°C to 120°C
- Series: HPS™ 6200
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
Ships today if ordered in the next 11 hours and 26 minutes.
