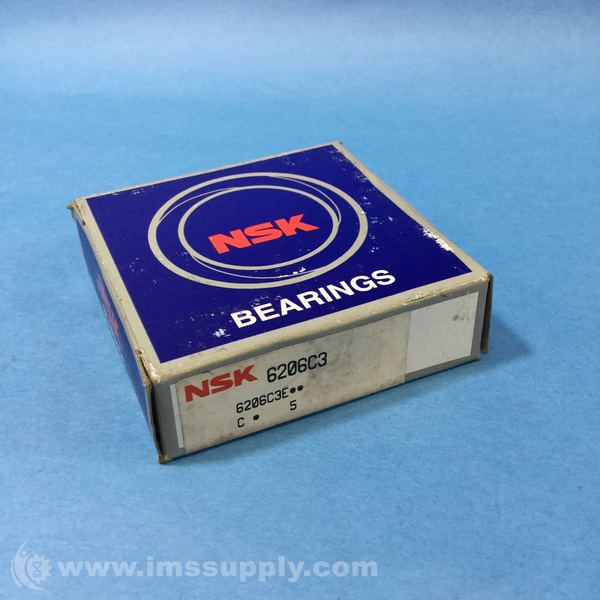

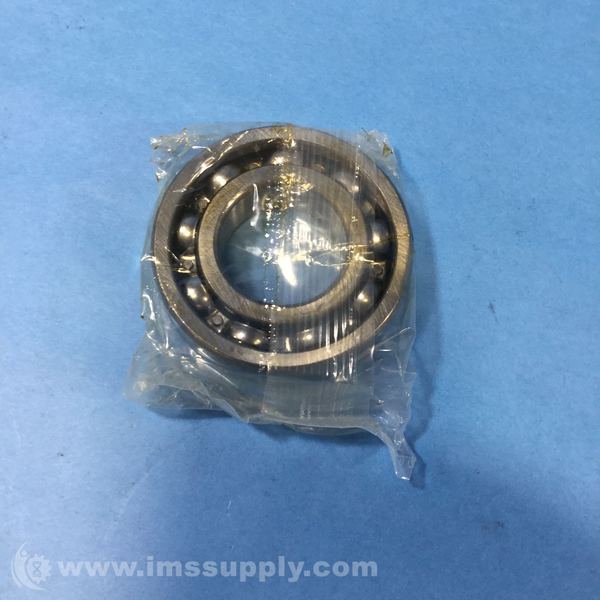

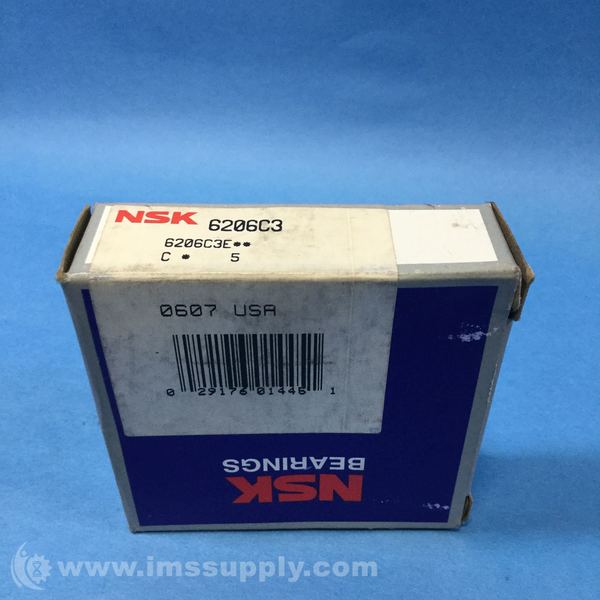

NSK 6206C3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6206C3
IMS Product Code: 1797859
Packaging: Sold Individually
Description:
NSK 6206C3 Deep Groove Ball Bearing
NSK 6206C3 is a deep groove ball bearing with open closure, 30 mm bore diameter, 62 mm outside diameter, and 16 mm width. It has a dynamic load rating of 20400 N and a static load rating of 113000 N.
Specifications
- d: 30 mm
- D: 62 mm
- B: 16 mm
- r (min.): 1 mm
- Cr: 21400 N
- C0r: 11300 N
- Grease: 12000 min-1
- Oil (Oil-bath): 15000 min-1
- da (min.): 35 mm
- da (max.): 38.5 mm
- Da (max.): 57 mm
- ra (max.): 1 mm
- Dw: 9.525 mm
- Mass: 0.199 kg
- Type: Light
- Series: HPS™ 6200
- Closure Type: Open
- Cage Material: Steel
- Maximum Speed: 12000 rpm Grease/15000 rpm Oil
- Radial Internal Clearance: +.0005 to +.0011 in
- Temperature Rating: -10 to 110 deg C
- Cage Type: Steel
- Seals Or Shields: Open Type
- Clearance: C3
- Dynamic Load Rating (kN): 19.5
- Static Load Rating (kN): 11.3
- Limiting Speed Rating (r/min): 11000
- Outer ring: Without flange/groove
- Seal: None, open bearing
- Cage: Sheet steel cage
- Tolerance class: Tolerance class P0/PN2 / ABEC 1
- Bore: Cylindrical bore
- Material: Standard bearing steel
- Temperature range: -20 to +120 degrees C
- Ball rows: Single row bearing
- Material of rolling elements: Standard bearing steel
