NSK 6207ZZC3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6207ZZC3
IMS Product Code: 2153230
Packaging: Sold Individually
Description:

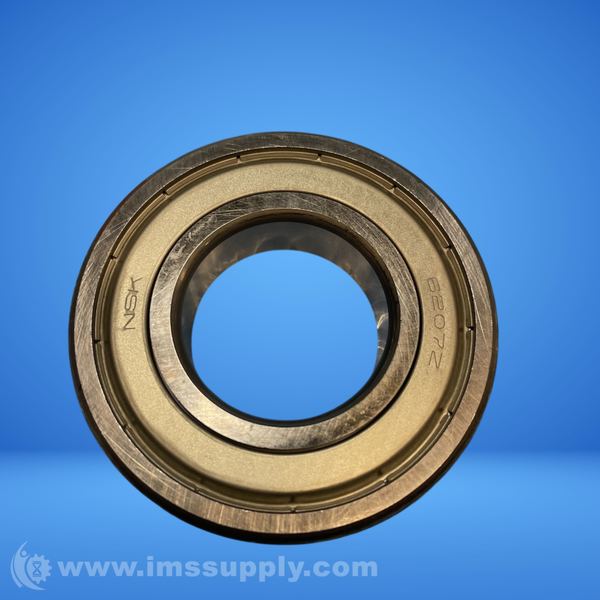

NSK 6207ZZC3 Deep Groove Ball Bearing
Deep groove ball bearing with double metal shields, 35mm inner diameter, 72mm outer diameter, 17mm width, and C3 internal clearance.
Specifications
- D: 72 mm
- d: 35 mm
- B: 17 mm
- r (min.): 1.1 mm
- Cr: 28200 N
- C0r: 15300 N
- Grease: 11000 min-1
- da (min.): 41.5 mm
- da (max.): 44.5 mm
- Da (max.): 65.5 mm
- ra (max.): 1 mm
- Dw: 11.112 mm
- Mass: 0.284 kg
- Bore Type: Straight
- Closure Type: Double Shielded
- Row Type: Single Row Non-Fill Slot
- Internal Clearance: C3
- Operating Temperature Range: -10 to +110 degrees C
- Precision Rating: ABEC 1 (ISO Class Normal)
- Cage Material: Steel
- Max Rpm: 11000 rpm
- Series: 62
- Radial Dynamic Load Capacity: 25700 N
- Radial Static Load Capacity: 15300 N
- Bearing Material: Steel
- Contact Angle: 0 degrees
- Enclosure: Double Shielded
- Seal Type: Fixed Shields
- Static Load Rating: 15.4 kN
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 21 minutes.
