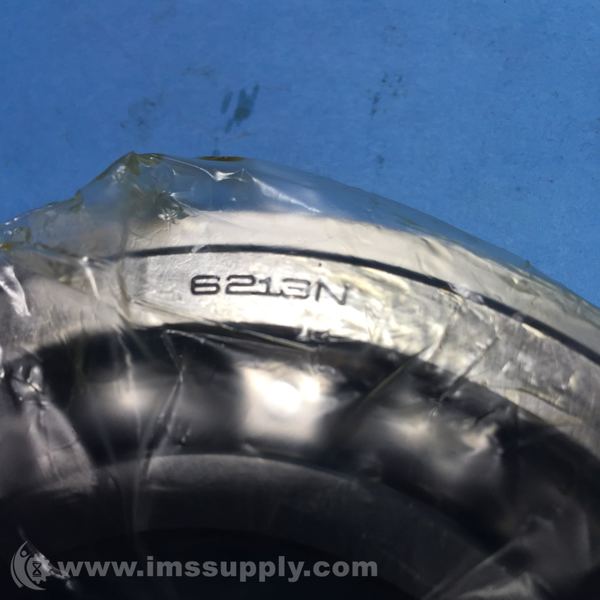

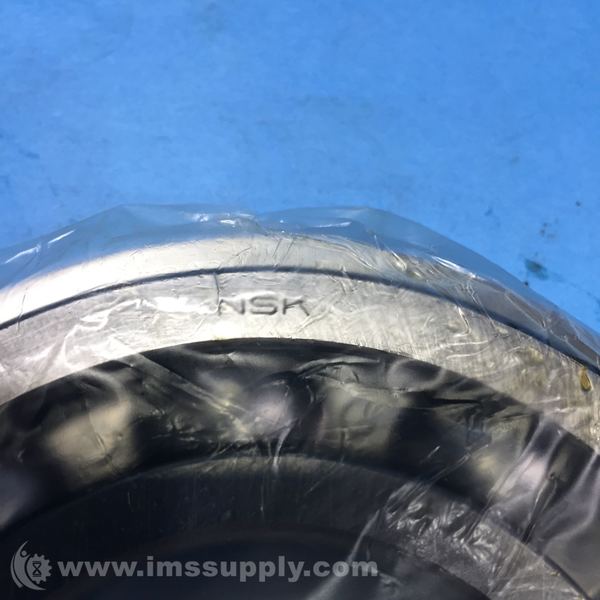

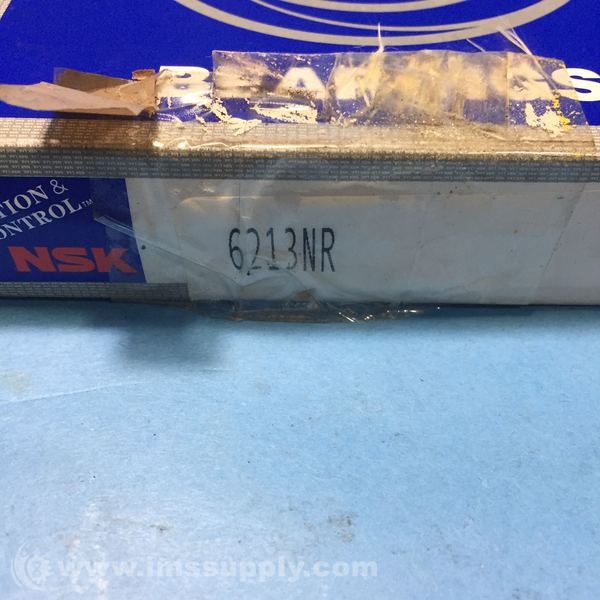

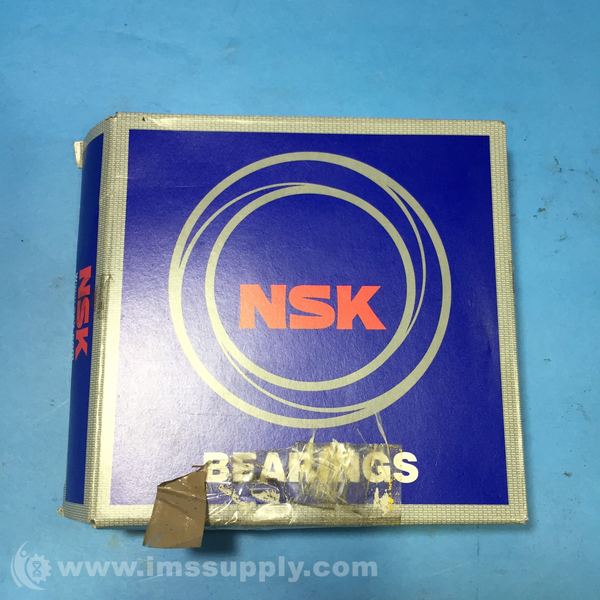

NSK 6213NR DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6213NR
IMS Product Code: 1873413
Packaging: Sold Individually
Description:
NSK 6213NR Deep Groove Ball Bearing
Open Type Deep Groove Radial Ball Bearing with snap ring groove, 65 mm ID, 120 mm OD, 23 mm Width
Specifications
- d: 65 mm
- D: 120 mm
- B: 23 mm
- r (min.): 1.5 mm
- Cr: 63000 N
- C0r: 40000 N
- Grease: 6300 min-1
- Oil (Oil-bath): 7500 min-1
- D2 (max.): 129.7 mm
- f (max.): 2.82 mm
- a (min.): 4.06 mm
- b (min.): 3.1 mm
- D1 (max.): 115.21 mm
- ro (max.): 0.6 mm
- rN: 0.5 mm
- da (min.): 73 mm
- da (max.): 80 mm
- Da (max.): 112 mm
- ra (max.): 1.5 mm
- Dx (min.): 131.5 mm
- Cy (max.): 6.5 mm
- fo: 14.4
- z: 10
- Dw: 16.669 mm
- Mass: 1 kg
- Cage Type: Steel
- Seals Or Shields: Open Type
- Clearance: Standard
- Dynamic Load Rating (kN): 57.5
- Static Load Rating (kN): 40
- Grease Limiting Speed (r/min): 5300
- Oil Limiting Speed (r/min): 6300
- Bore Type: Straight
- Closure Type: Open
- Snap Ring Included: Without Snap Ring
- Internal Clearance: Normal Clearance
- Outer Ring Width: 23 mm
- Weight: 2.09 lbs
- Cage Material: Steel
- Seal Type: Open
- Snap Ring: Yes
- Rolling Element: Ball Bearing
- Precision Class: ABEC 1
- Outer Race Width Inch: 0.906
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
