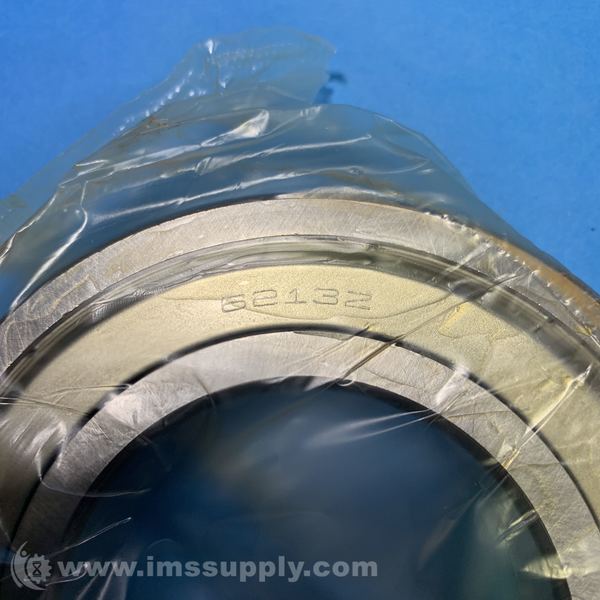

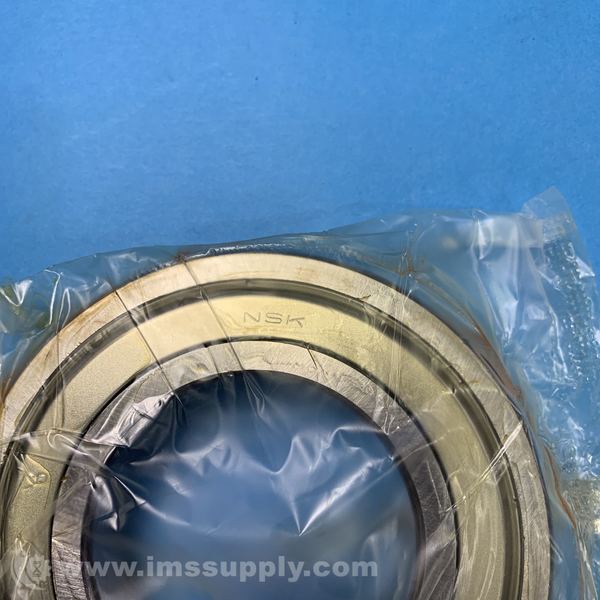

NSK 6213ZZC3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6213ZZC3
IMS Product Code: 1866989
Packaging: Sold Individually
Description:
NSK 6213ZZC3 Deep Groove Ball Bearing
Shielded deep groove radial ball bearing with larger than standard radial internal clearance. Dimensions: 65x120x23mm.
Specifications
- Inside Diameter: 65 mm
- Outside Diameter: 120 mm
- Width: 23 mm
- Cage Type: Steel
- Seals Or Shields: Two Metal Shields
- Clearance: C3
- Dynamic Load Rating: 57.5 kN
- Static Load Rating: 40 kN
- Grease Limiting Speed: 5300 r/min
- Oil Limiting Speed: 6300 r/min
- Fillet Radius: 1.5 mm
- Bore Type: Straight
- Cage Material: Steel
- Internal Clearance: C3
- Max RPM: 6300 rpm
- Material: Standard bearing steel
- Tolerance Class: ABEC 1
- Temperature Range: -20 to +120 degrees Celsius
