NSK 625VV DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 625VV
IMS Product Code: 1925173
Packaging: Sold Individually
Description:

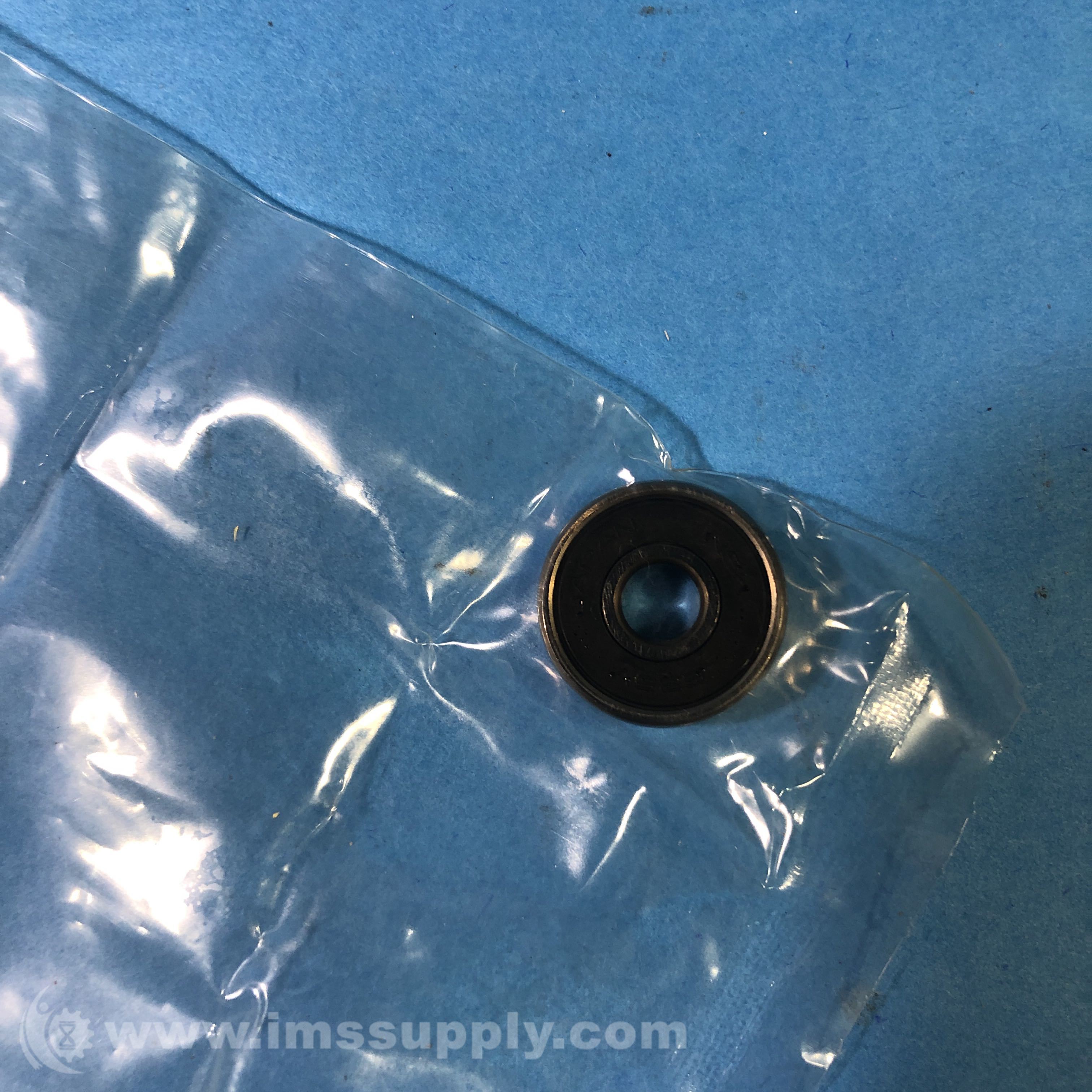

NSK 625VV Deep Groove Ball Bearing
Deep Groove Ball Bearing, Straight Bore, 5 mm ID, 16 mm OD, 5 mm Width, Double Sealed, Steel Cage, 36000 rpm Grease/43000 rpm Oil Maximum, -10 to 110 degrees C
Specifications
- Bore Type: Straight
- Bore Diameter: 5 mm
- Outside Diameter: 16 mm
- Overall Width: 5 mm
- Closure Type: Double Sealed
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: C0
- Seal Type: Two Non-Contact Seals
- Bearing Material: Steel
- Cage Material: Steel
- Maximum RPM (Grease): 36000 rpm
- Maximum RPM (Oil): 43000 rpm
- Series: 62
- Radial Dynamic Load Capacity: 390 lbf
- Radial Static Load Capacity: 151 lbf
