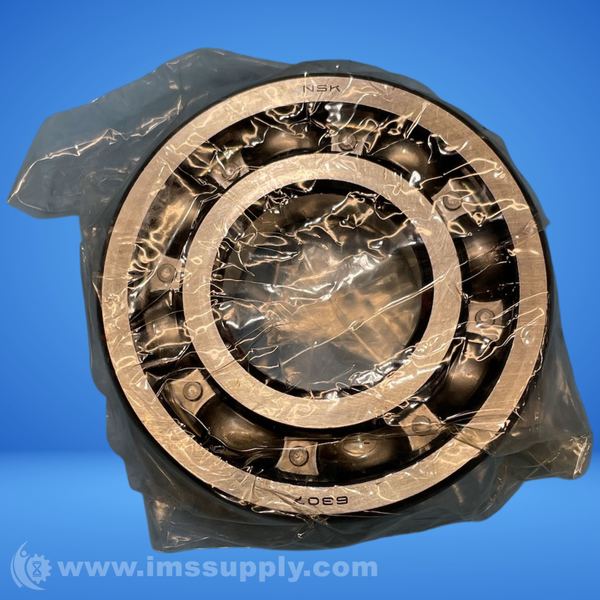

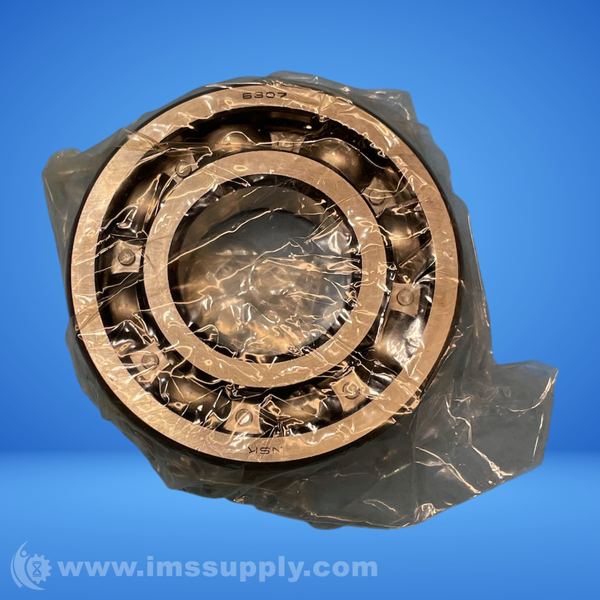

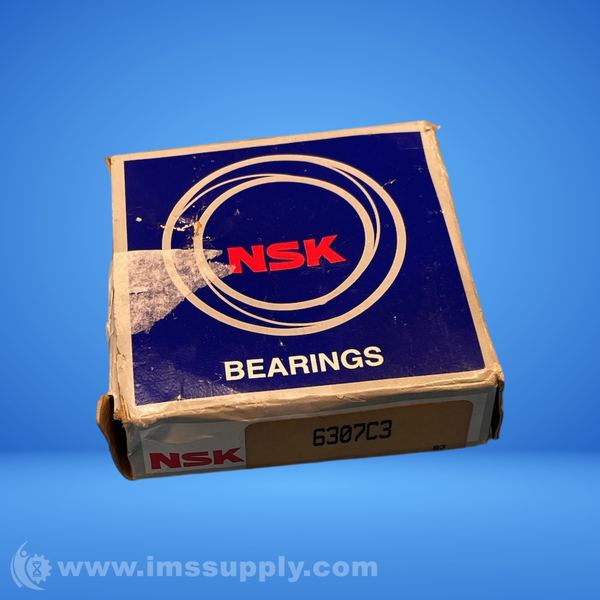

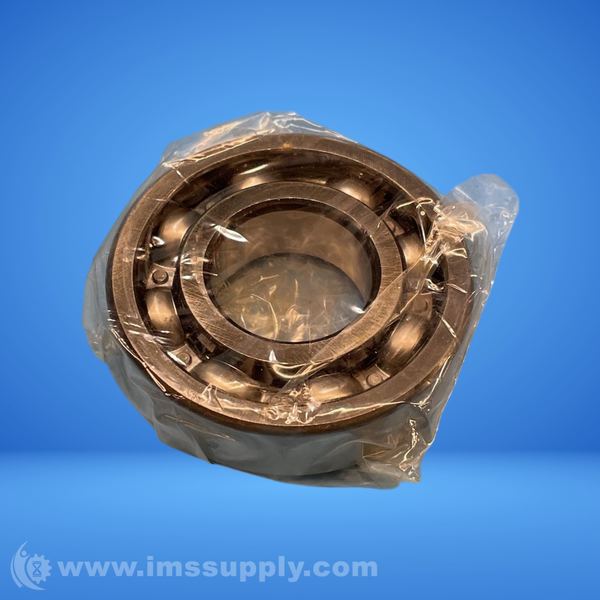

NSK 6307C3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6307C3
IMS Product Code: 2088049
Packaging: Sold Individually
Description:
NSK 6307C3 Deep Groove Ball Bearing
Open type deep groove radial ball bearing with C3 internal clearance, straight bore, 35 mm ID, 80 mm OD, 21 mm width, with snap ring, steel cage.
Specifications
- Bore Type: Straight
- Bore Diameter: 35 mm
- Closure Type: Open
- Cage Material: Steel
- Dynamic Load Rating: 33500 N
- Fillet Radius: 1.5 mm
- Inner Diameter: 35 mm
- Internal Clearance: C3
- Limiting Speed Rating: 8500 r/min
- Outer Diameter: 80 mm
- Outside Diameter: 80 mm
- Precision Rating: ABEC 1 (ISO Class Normal)
- Radial Dynamic Load Capacity: 33500 N
- Radial Static Load Capacity: 19200 N
- Row Type: Single Row Non-Fill Slot
- Seals Or Shields: Open Type
- Series: 63
- Snap Ring Included: With Snap Ring
- Static Load Rating: 19200 N
- Type: Deep Groove Ball Bearing
- Width: 21 mm
- Weight: 460 g
- Max Rpm: 10000 rpm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships on Monday, October 20, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
