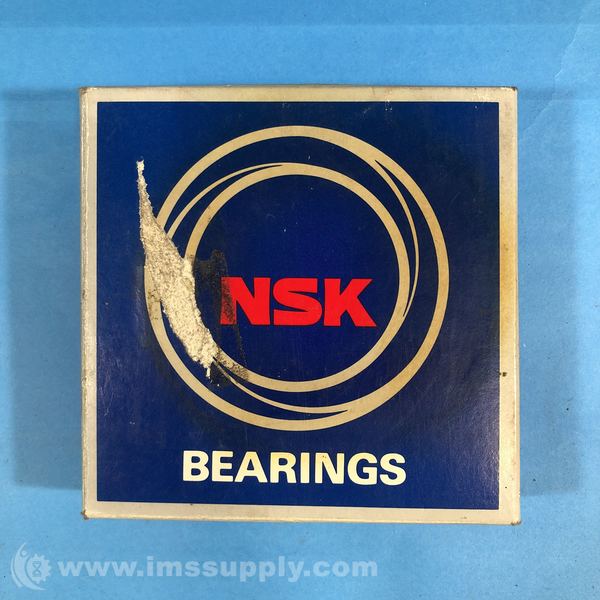

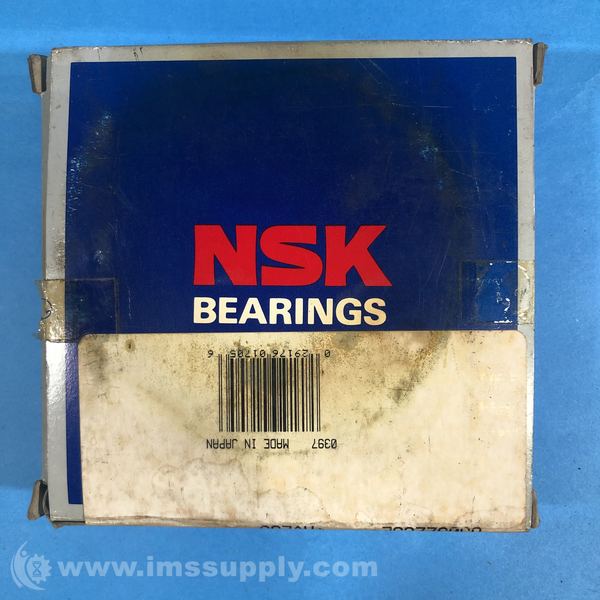

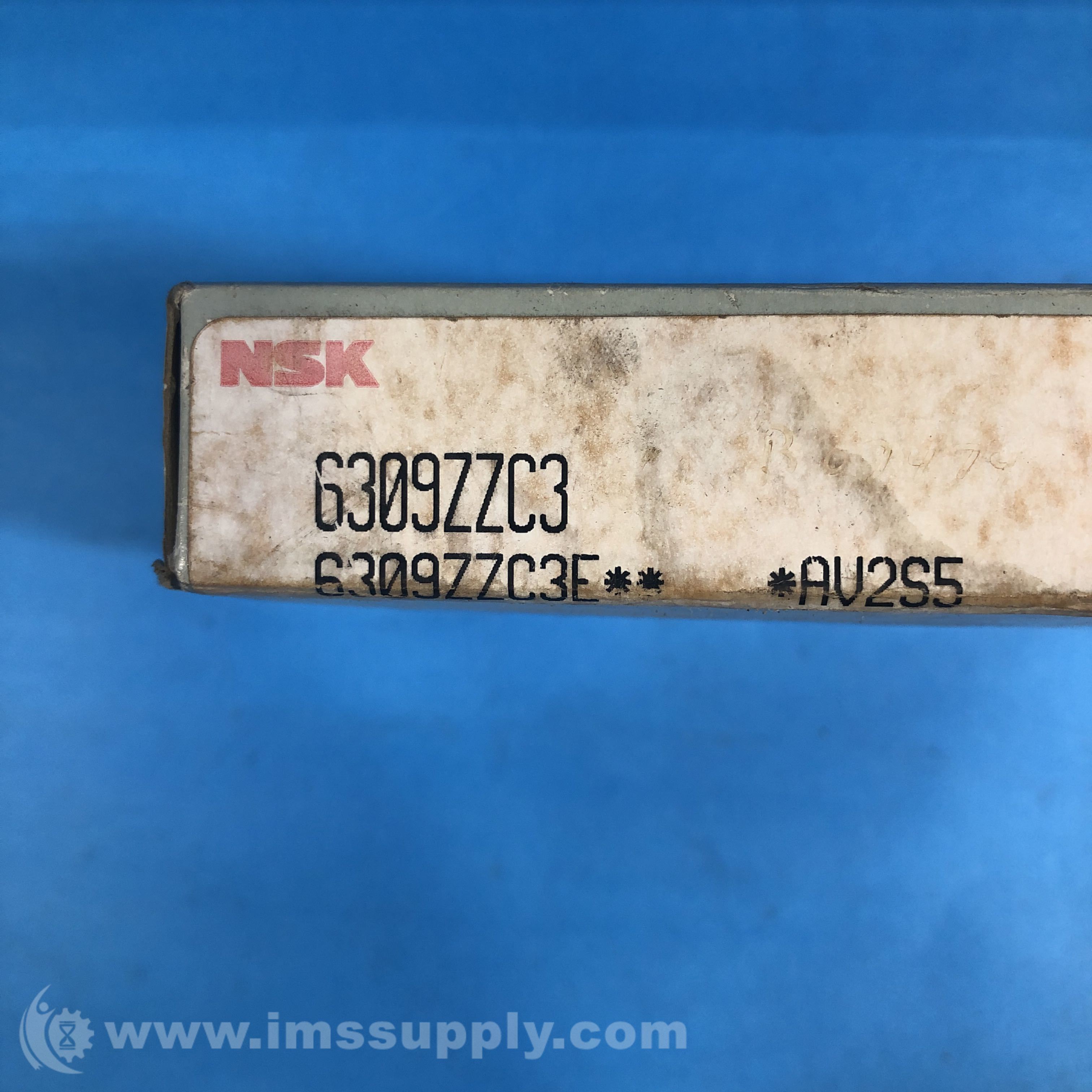

NSK 6309ZZC3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6309ZZC3
IMS Product Code: 1877981
Packaging: Sold Individually
Description:
NSK 6309ZZC3 Deep Groove Ball Bearing
Single-Row Deep Groove Ball Bearings - Straight Bore, 45 mm ID, 100 mm OD, 25 mm Width, Double Shielded
Specifications
- d: 45 mm
- D: 100 mm
- B: 25 mm
- r (min.): 1.5 mm
- Cr: 58500 N
- C0r: 32000 N
- Grease: 7500 min-1
- da (min.): 53 mm
- da (max.): 61.5 mm
- Da (max.): 92 mm
- ra (max.): 1.5 mm
- Dx (min.): 0 mm
- Cy (max.): 0 mm
- fo: 13.1
- z: 8
- Dw: 17.462 mm
- Mass: 0.829 kg
- Bore Type: Straight
- Closure Type: Double Shielded
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: C3
- Operating Temperature Range: -10 to +110 degrees C
- Precision Rating: ABEC 1 (ISO Class Normal)
- Finish Coating: Uncoated
- Cage Material: Steel
- Fillet Radius: 1.5 mm
- Max Rpm: 8000 rpm
- Series: 63
- Radial Dynamic Load Capacity: 53000 N
- Radial Static Load Capacity: 32000 N
- Material: Steel
