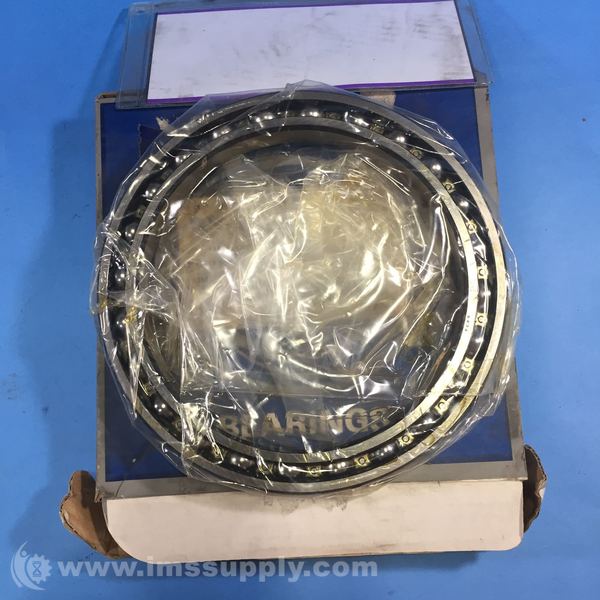

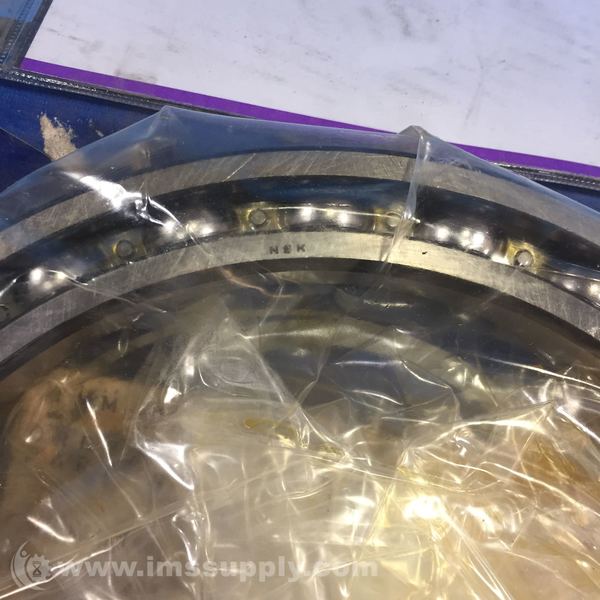

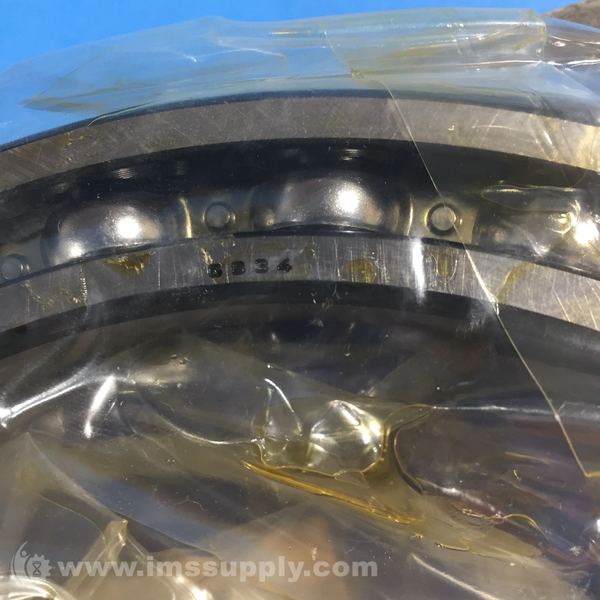

NSK 6834 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6834
IMS Product Code: 1819601
Packaging: Sold Individually
Description:
NSK 6834 Deep Groove Ball Bearing
Deep Groove Ball Bearing - Straight Bore, 170 mm ID, 215 mm OD, 22 mm Width, Open, Without Snap Ring
Specifications
- Bore Type: Straight
- Bore Diameter: 170 mm
- Outside Diameter: 215 mm
- Contact Angle: Not Applicable
- Overall Width: 22 mm
- Closure Type: Open
- Snap Ring Included: Without Snap Ring
- Bearing Type: Radial & Deep Groove Ball Bearings
- Internal Clearance: C0
- Outer Ring Width: 22 mm
- Basic dynamic load rating: 60 kN
- Basic static load rating: 75 kN
- Limiting speeds: 1600 min-1 (Grease)
- f0: 17.1 (Factor)
- da min: 176.5 mm
- da max: 182 mm
- Da: 208.5 mm
- ra: 1 mm
- Mass: 1.860 kg (approx.)
- Cage Material: Steel
- Material: Chrome Steel
- Type: Deep Groove Ball Bearing
- Structure: Deep Groove
- Number of Row: Single Row
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 4 hours and 2 minutes.
