NSK F698ZZ1MC3PS2S MINIATURE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: F698ZZ1MC3PS2S
IMS Product Code: 1924702
Packaging: Sold Individually
Description:

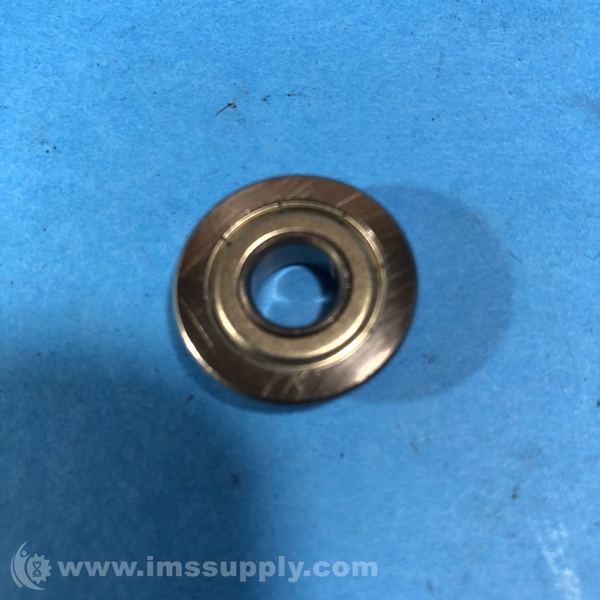

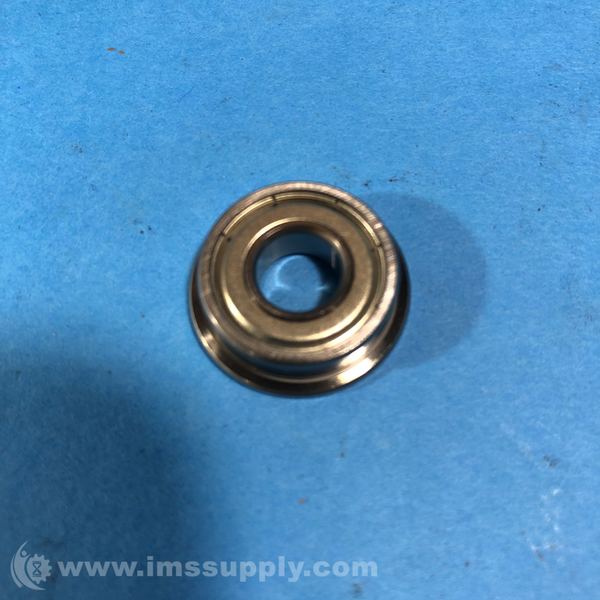

NSK F698ZZ1MC3PS2S Miniature Ball Bearing
Single row non-fill slot radial/deep groove ball bearing with double shielding and C3 internal clearance.
Specifications
- d: 8 mm
- D: 19 mm
- B: 6 mm
- r1 (min.): 0.3 mm
- Cr: 2460 N
- C0r: 910 N
- Grease: 36000 min-1
- db (max.): 10 mm
- Db (max.): 16.5 mm
- rb (max.): 0.3 mm
- z: 7
- Dw: 3.175 mm
- Mass: 0.00718 kg
- Bore Type: Straight
- Outside Diameter: 19 mm
- Contact Angle: Not Applicable
- Overall Width: 6 mm
- Closure Type: Double Shielded
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: C3
- Precision Rating: ABEC 1 (ISO Class Normal)
- Finish Coating: Uncoated
- Cage Material: Steel
- Fillet Radius: 0.3 mm
- Max Rpm: 43000 rpm
- Series: 69
- Radial Dynamic Load Capacity: 2240 N
- Radial Static Load Capacity: 910 N
New - Open Box:

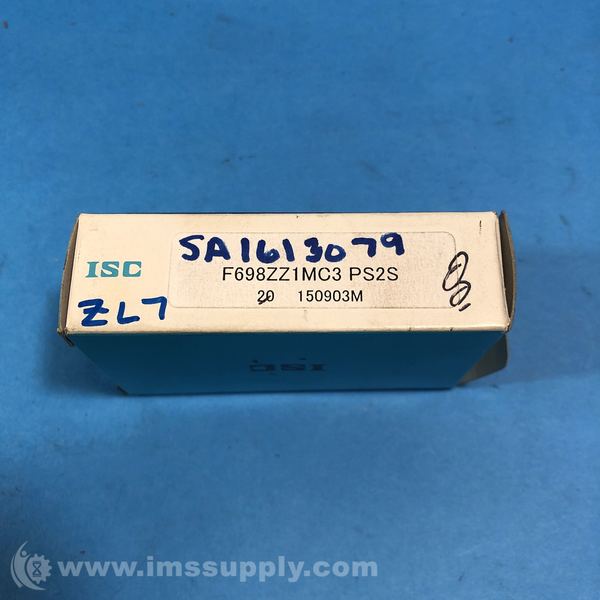

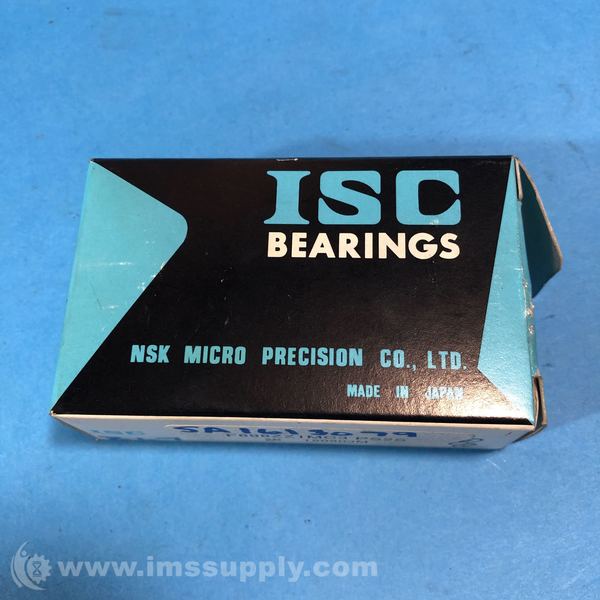

A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
