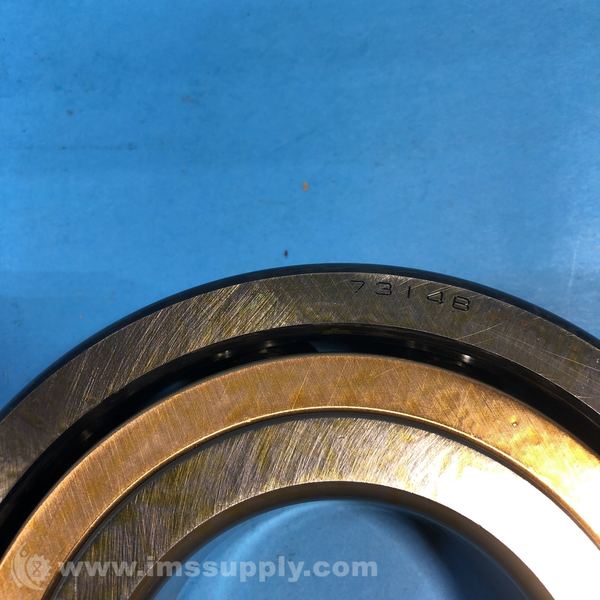

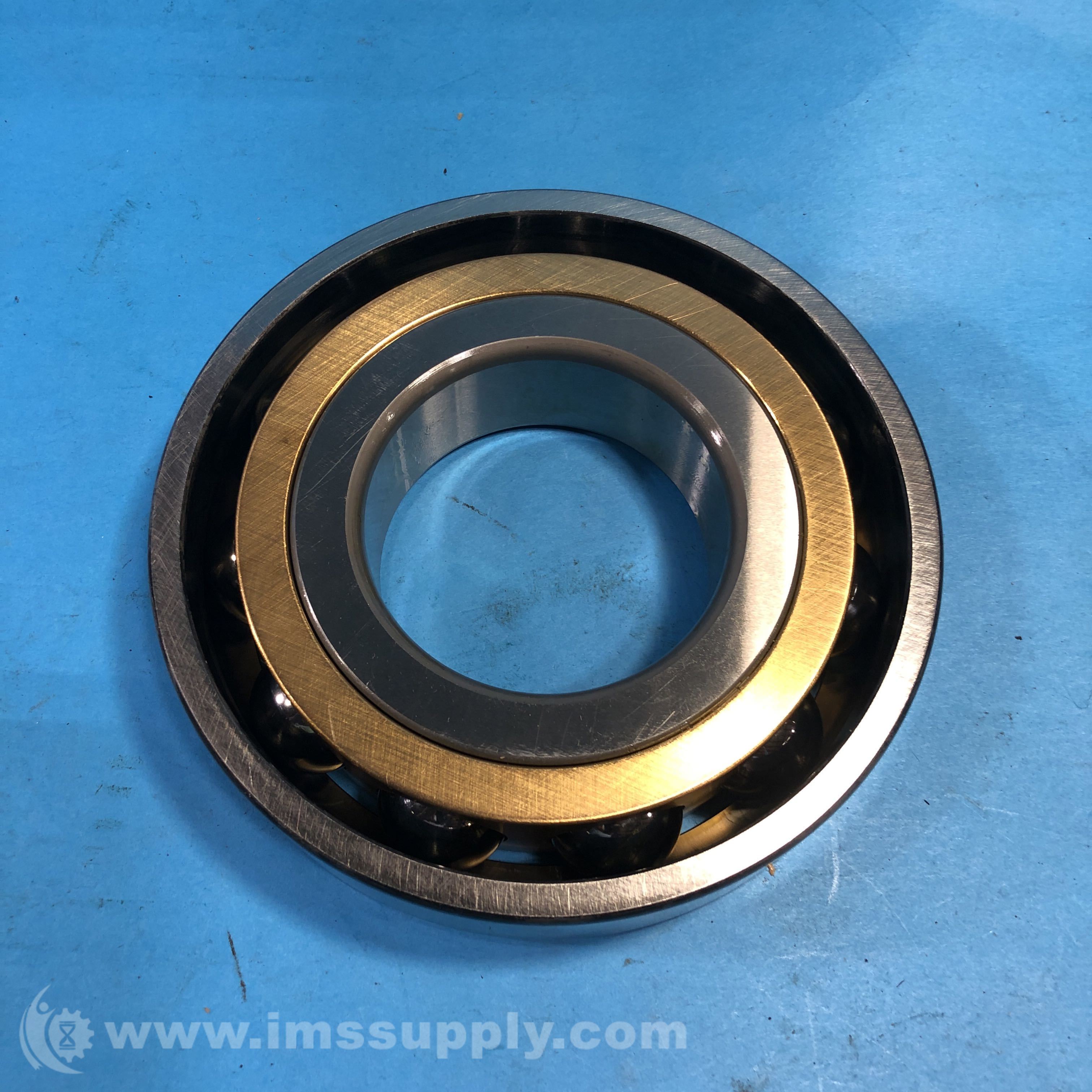

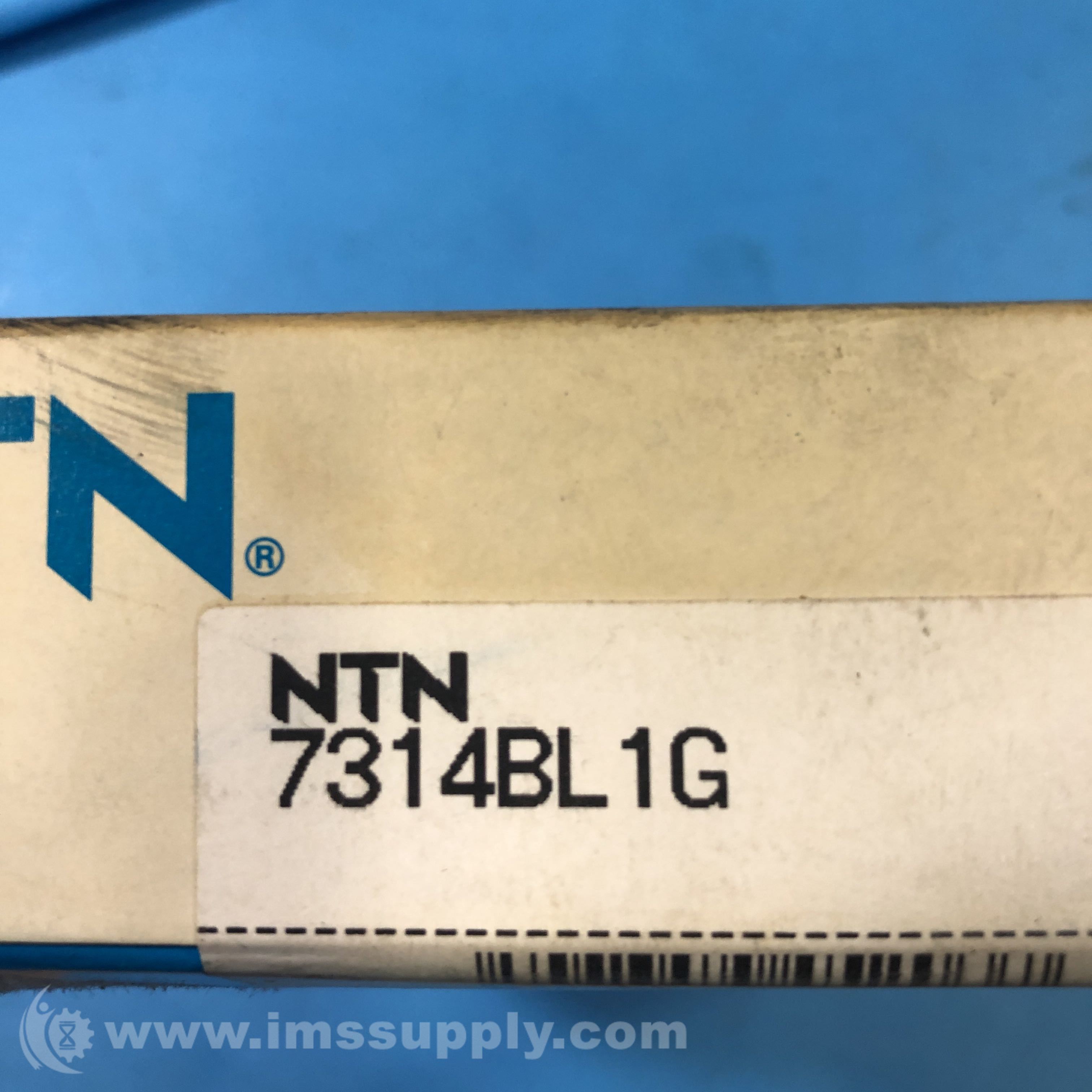

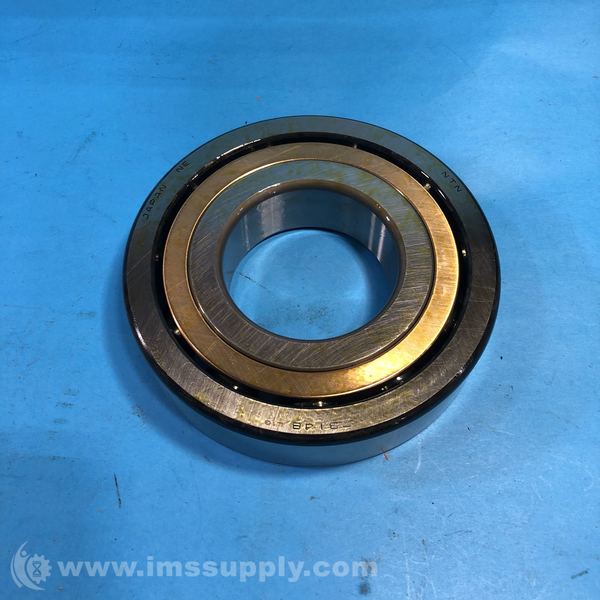

NTN BEARING 7314BL1G ANGULAR CONTACT BALL
Quick Overview
Manufactured By: NTN BEARING
Manufacturer Part Number: 7314BL1G
IMS Product Code: 1865128
Packaging: Sold Individually
Description:
Ntn Bearing 7314BL1G Angular Contact Ball
Angular Contact Ball Bearing
Specifications
- Type: Angular Contact Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Machined
- Cage Material: Brass
- Ball Material: Steel
- Limiting Speed - Oil: 5800 RPM
- Limiting Speed - Grease: 4400 RPM
- Precision: ISO Class 0
- Configuration: One
- Static Load Rating: 19300 lbf, 86000 N, 86.00 kN
- Dynamic Load Rating: 25600 lbf, 114000 N, 114.00 kN
- Enclosure: Open
- Weight: 6.548 lb, 2.970 kg
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- d: 2.7559 in, 70.000 mm
- D: 5.9055 in, 150.000 mm
- B: 1.3780 in, 35.000 mm
- r: 0.0827 in, 2.100 mm
- r1: 0.0433 in, 1.100 mm
- Contact Angle: 40 degrees
- a (Load Center): 2.5000 in, 63.500 mm
- da min: 3.2283 in, 82.000 mm
- db min: 3.0315 in, 77.000 mm
- Da max: 5.4331 in, 138.000 mm
- Db max: 5.6299 in, 143.000 mm
- ras max: 0.0787 in, 2.000 mm
- r1as max: 0.0394 in, 1.000 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, September 21, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
