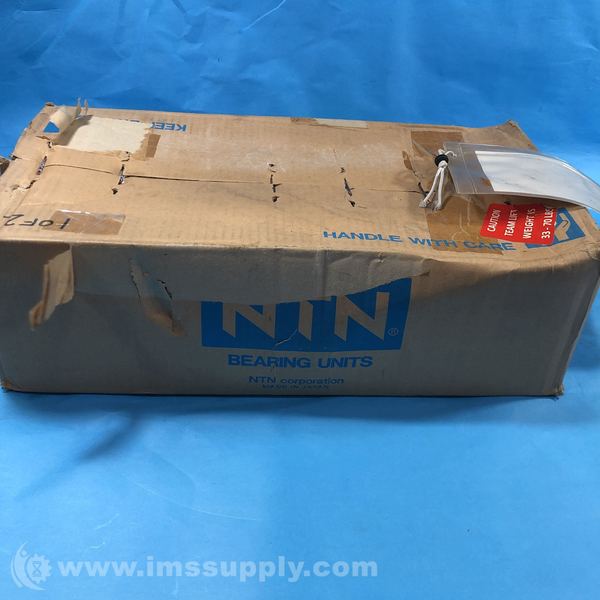

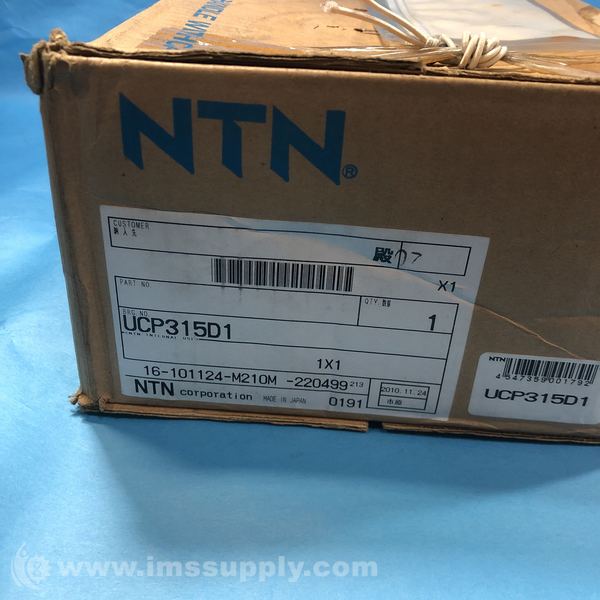

NTN UCP315D1 PILLOW BLOCK UNIT
Quick Overview
Manufactured By: NTN BEARING
Manufacturer Part Number: UCP315D1
IMS Product Code: 1902474
Packaging: Sold Individually
Description:
Ntn UCP315D1 Pillow Block Unit
Pillow Block Ball Bearing Unit - 2-Bolt Base, 75 mm Bore, Cast Iron Material, Heavy Duty, Non-Expansion Bearing (Fixed)
Specifications
- Type: Pillow Block Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC315D1
- Housing Number: P315D1
- Housing Material: Cast Iron
- Housing Construction: 1 Piece
- Performance: Heavy Duty
- End Type: Open
- Dynamic Load Rating: 25404 lbf, 113000 N, 113.00 kN
- Static Load Rating: 17310 lbf, 77000 N, 77.00 kN
- Rotational Speed [Max]: 1900.0 RPM
- Weight: 31.084 lb, 14.100 kg
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- Lubrication: Outer Ring Relubricatable
- d: 2.9530 in, 75.000 mm
- J: 11.4062 in, 290.0 mm
- L: 14.9687 in, 380.0 mm
- A: 3.9375 in, 100.0 mm
- H: 3.9375 in, 100.0 mm
- H1: 1.3750 in, 35.0 mm
- H2: 7.7812 in, 198.0 mm
- L1: 4.3437 in, 110.0 mm
- N: 1.0625 in, 27.0 mm
- N1: 1.5625 in, 40.0 mm
- B: 3.2283 in, 82.000 mm
- S: 1.2598 in, 32.000 mm
- F: 0.4331 in, 11.000 mm
- Ball Material: Through Hardened
- Outside Diameter: 6.2990 in, 160.000 mm
- Bore Type: Cylindrical
- Outside Ring Width: 1.6930 in, 43.000 mm
- Inside Ring Width: 3.2280 in, 82.000 mm
- Clearance: CN
- Cage Material: Pressed Steel
- Precision Rating: ISO Class 0
- Radial Dynamic Load Rating: 25404 lbf, 113000 N
- Radial Static Load Rating: 17310 lbf, 77000 N
- Rotational Speed [Max]-Grease: 1950 RPM
- Bore / Inner Diameter Inch: 2.953
- Bore / Inner Diameter MM: 75
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 11.4
- Bolt Center to Center MM: 290
- Bearing Locking Style: Set Screw
- Rolling Element: Ball Bearing
- Housing Style: 2 Bolt Pillow Block
- Expansion / Non-Expansion: Non-expansion
- Base to Center Height Inch: 3.937
- Base to Center Height MM: 100
- Bearing Insert Part Number: UC315D1
- Mounting Type: 2-Bolt Base
- Bore Diameter: 75 mm
- Bolt Center To Center Length: 11.4062 in
- Base To Bore Centerline: 100 mm
- Duty Type: Heavy Duty
- Housing ID: P315D1
- Expansion Type: Non-Expansion Bearing (Fixed)
- Country of Origin: JP
- Overall Height: 198 mm
- Overall Length: 380 mm
- Base Width: 3.9375 in, 100.0 mm
- Overall Width: 100 mm
- Finish Coating: Uncoated
- Harmonization Code: 8483.20.8040
- Radial Dynamic Load Capacity: 25400 lbf
- Radial Static Load Capacity: 17300 lbf
- Max Rpm: 1900 rpm
- Lubrication Type: Relubricatable
- Series: UCP3
- Replacement Bearing: UC315D1
- Type Of Bearing: Ball Bearing
- Housing Construction: Solid
- Locking Type: Set Screw
- Product Type: Pillow Block Ball Bearing Units
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 38 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 38 minutes.
