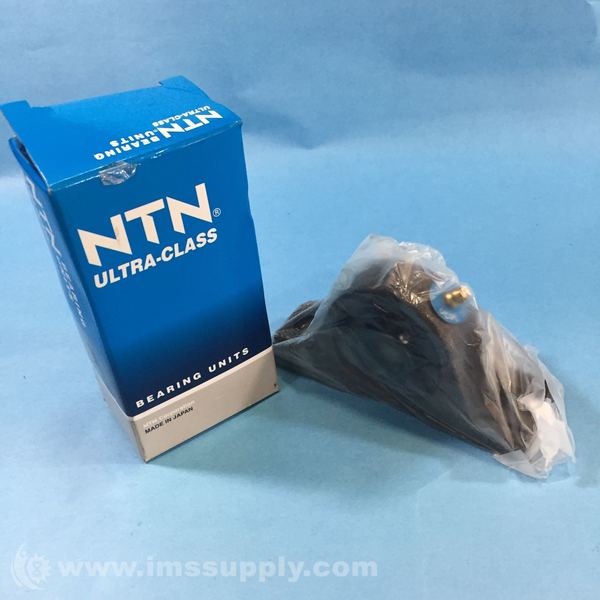

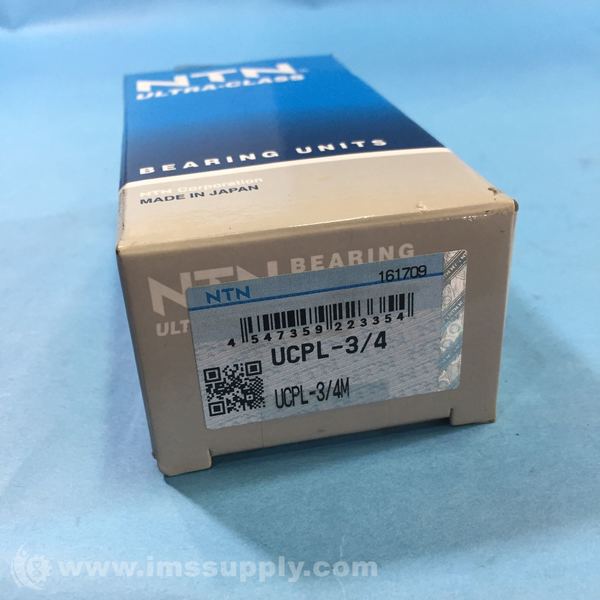

NTN BEARING UCPL-3/4 PILLOW BLOCK BALL BEARING UNIT
Quick Overview
Manufactured By: NTN BEARING
Manufacturer Part Number: UCPL-3/4
IMS Product Code: 1865206
Packaging: Sold Individually
Description:
Ntn Bearing UCPL-3/4 Pillow Block Ball Bearing Unit
Pillow block ball bearing unit with set screw, low base, cast iron housing, contact seal, and relubricatable design.
Specifications
- Type: Pillow Block Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Housing Material: Cast Iron
- Housing Construction: 1 Piece
- Dynamic Load Rating: 2878 lbf, 12800 N
- Static Load Rating: 1495 lbf, 6650 N
- Max Tightening Torque: 34 lb·in
- Rotational Speed [Max]: 6700 RPM
- Weight: 0.730 kg
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- Lubrication: Relubricatable
- d: 3/4 in, 19.050 mm
- J: 3-25/32 in, 96.0 mm
- L: 5.0000 in, 127.0 mm
- A: 1.5000 in, 38.1 mm
- H: 1-1/4 in, 31.8 mm
- H1: 0.5625 in, 14.3 mm
- H2: 2.5313 in, 64.3 mm
- N: 0.4375 in, 11.1 mm
- N1: 0.7813 in, 19.8 mm
- L1: 1.6563 in, 42.1 mm
- B: 1.2205 in, 31.000 mm
- S: 0.5000 in, 12.700 mm
- F: 0.1850 in, 4.700 mm
- Bore Diameter: 3/4 in
- Base Width: 1.5000 in, 38.1 mm
- Overall Width: 1.5000 in
- Radial Dynamic Load Capacity: 2880 lbf
- Radial Static Load Capacity: 1500 lbf
- Max Rpm: 6700 rpm
- Series: UCPL
- Country of Origin: JP
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
