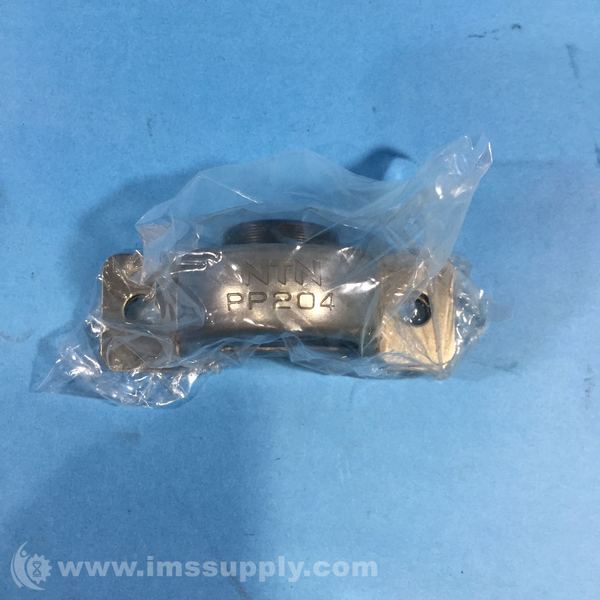

NTN ASPP204 PILLOW BLOCK BALL BEARING
Quick Overview
Manufactured By: NTN CORPORATION
Manufacturer Part Number: ASPP204
IMS Product Code: 1836898
Packaging: Sold Individually
Description:
NTN ASPP204 Pillow Block Ball Bearing
NTN Pillow Block Ball Bearing Unit, 1-Piece Light Duty, Series: ASPP2, 20 mm Bore, 76 mm Bolt Center-to-Center Length, 25.4 mm Base to Bore Centerline, 98 mm Overall Length, 34 mm Overall Width, 50.5 mm Overall Height, Two-Bolt Base Mounting, Round Bore, 32 mm Base Width, Set Screw Locking Device, Contact Seal, Non-Expansion (Fixed) Expansion, 12800 N Dynamic/6650 N Static Load, -40 to 120 deg C, 6700 rpm Maximum, Pressed Steel, Uncoated
Specifications
- Bearing Type: Pillow Block Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: AS204
- Housing Number: PP204
- Housing Material: Pressed Steel
- Housing Construction: 1 Piece
- End Type: Open
- Performance: Light Duty
- Dynamic Load Rating: 12.8 kN
- Static Load Rating: 6.65 kN
- Max. Load Recommended - Axial: 1000 N
- Max. Load Recommended - Radial: 2500 N
- Rotational Speed [Max]: 6700 RPM
- Weight: 0.200 kg
- Operating Temperature Range: -40 to 120 degrees C
- Lubrication: Non-Relubricatable
- d: 20.000 mm
- J: 76.0 mm
- L: 98.0 mm
- A: 32.0 mm
- H: 25.4 mm
- H1: 3.2 mm
- H2: 50.5 mm
- N: 9.5 mm
- B: 25.000 mm
- S: 7.000 mm
- Ball Material: Through Hardened
- Outside Diameter: 47.000 mm
- Bore Type: Cylindrical
- Clearance: CN
- Cage Material: Pressed Steel
- Precision Rating: ISO Class 0
- Radial Dynamic Load Rating: 12800 N
- Radial Static Load Rating: 6650 N
- Bore Diameter: 20 mm
- Width: 31 mm
- Base Width: 32 mm
- Base to Bore Centerline: 25.4 mm
- Bolt Center-to-Center Length: 76 mm
- Expansion Type: Non-Expansion (Fixed)
- Finish: Uncoated
- Load Capacity: 12800 N Dynamic/6650 N Static
- Material: Pressed Steel
- Maximum Speed: 6700 rpm
- Mounting Type: Two-Bolt Base
- Overall Height: 50.5 mm
- Overall Length: 98 mm
- Overall Width: 34 mm
- Series: ASPP2
- Temperature Rating: -40 to 120 deg C
- Type: 1-Piece Light Duty
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
