NTN 51124 THRUST BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 51124
IMS Product Code: 2121324
Packaging: Sold Individually
Description:

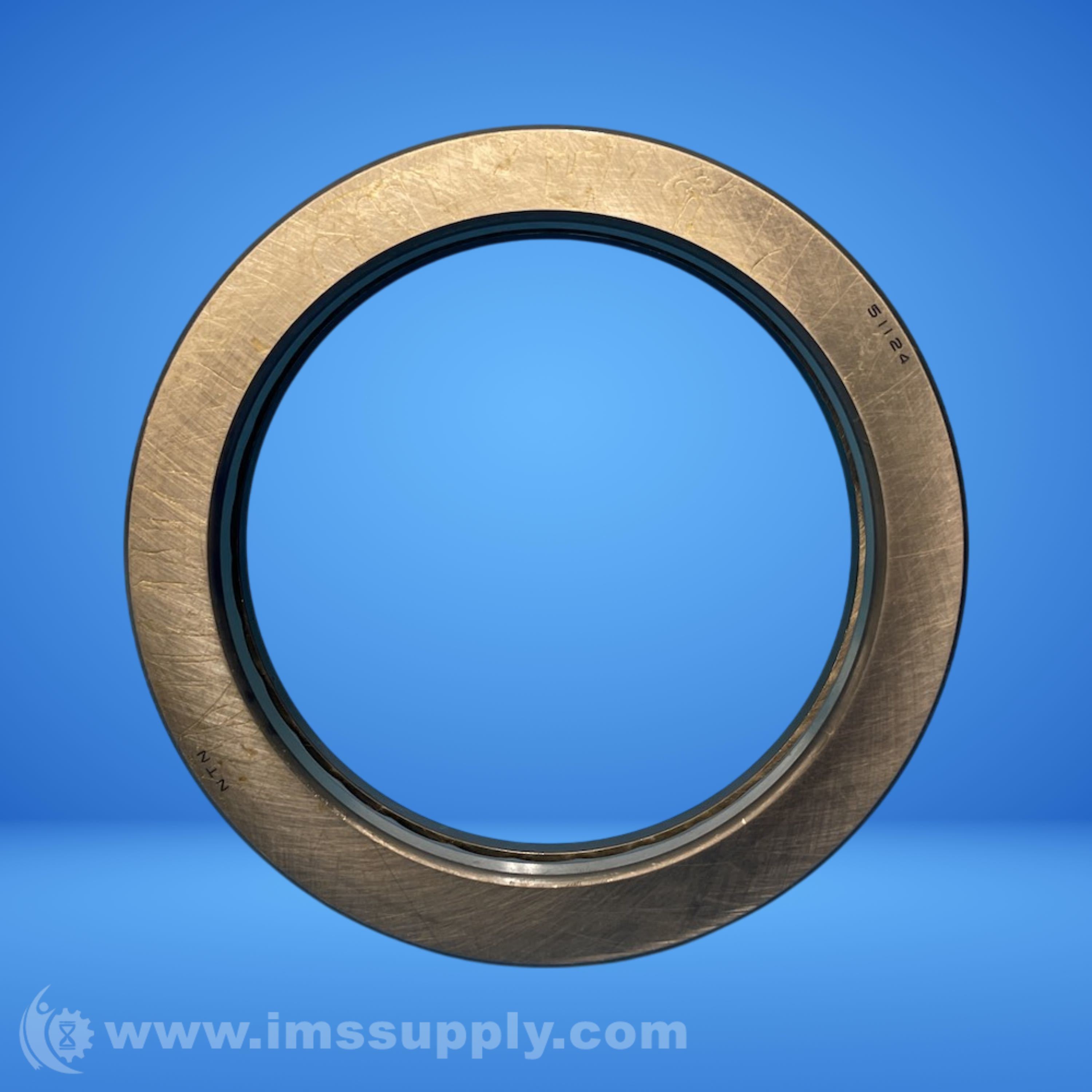

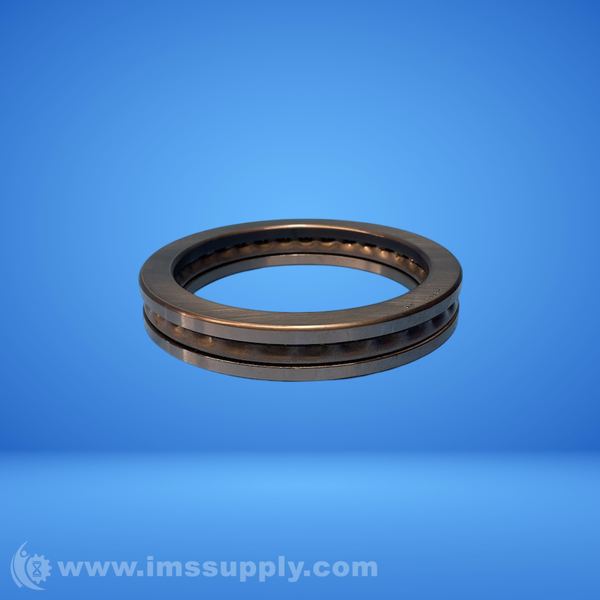

NTN 51124 Thrust Ball Bearing
Single Direction Thrust Ball Bearing
Specifications
- Type: Thrust Ball Bearing
- Bore Type: Round
- Outside Ring Type: Straight
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 2200.0 RPM
- Limiting Speed - Grease: 1500 RPM
- Precision: ISO Class 0
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 310000 N
- Dynamic Load Rating: 89000 N
- Enclosure: Open
- Weight: 1.210 kg
- Operating Temperature Range: -40 to 120 degrees C
- d: 120.000 mm
- D1: 122.000 mm
- d1: 155.000 mm
- D: 155.000 mm
- T: 25.000 mm
- r: 1.000 mm
- da min: 141.000 mm
- Da max: 141.000 mm
- ras max: 1.000 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 11 minutes.
