NTN 51211 THRUST BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 51211
IMS Product Code: 2022679
Packaging: Sold Individually
Description:

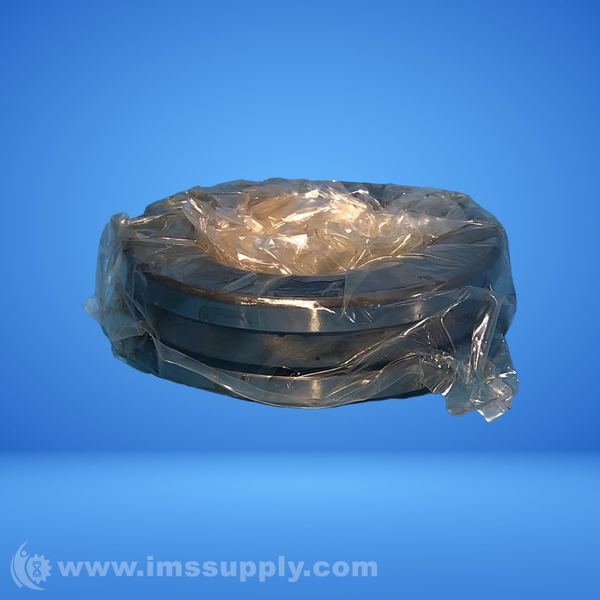

NTN 51211 Thrust Ball Bearing
Single direction thrust ball bearing consisting of two washers with ball grooves, balls, and cages. Made of high carbon chrome steel with pressed steel cage.
Specifications
- Type: Thrust Ball Bearing
- Bore Type: Round
- Outside Ring Type: Straight
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 3000 RPM
- Limiting Speed - Grease: 2100 RPM
- Precision: ISO Class 0
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 159000 N
- Dynamic Load Rating: 69500 N
- Enclosure: Open
- Weight: 0.59 kg
- Operating Temperature Range: -40 to 120 degrees C
- d: 55 mm
- D: 90 mm
- T: 25 mm
- r: 1 mm
