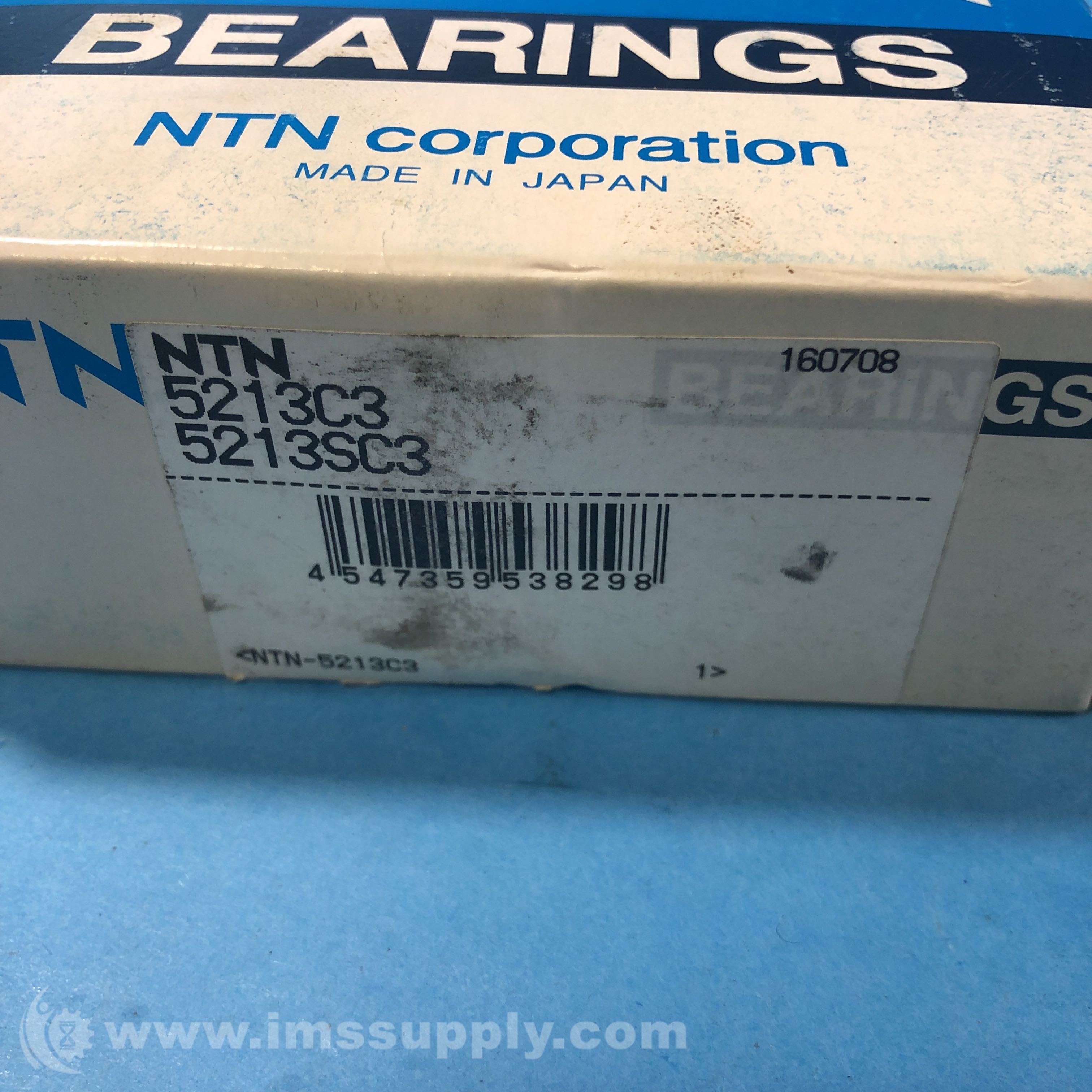

NTN 5213C3 DOUBLE ROW ANGULAR CONTACT BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 5213C3
IMS Product Code: 1922049
Packaging: Sold Individually
Description:
NTN 5213C3 Double Row Angular Contact Bearing
Double row angular contact ball bearing with 65 mm bore diameter, 120 mm outside diameter, and 38.1 mm width. Made of high carbon chrome steel with C3 internal clearance and 25 degrees contact angle.
Specifications
- Bore Type: Straight
- Bore Diameter: 65 mm
- Outside Diameter: 120 mm
- Overall Width: 38.1 mm
- Row Type: Double-Row Non-Fill Slot
- Closure Type: Open
- Cage Type: Pressed
- Contact Angle: 25 degrees
- Bearing Material: High Carbon Chrome Steel
- Internal Clearance: C3
- Radial Dynamic Load Capacity: 76500 N
- Radial Static Load Capacity: 69000 N
- Cage Material: Steel
- Max Rpm: 4500 rpm
- Fillet Radius: 1.5 mm
- Precision Rating: Class 0
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 15 hours and 17 minutes.
