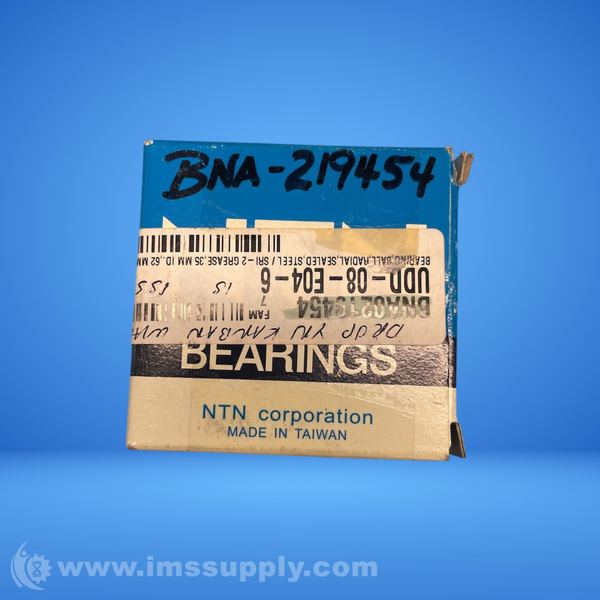

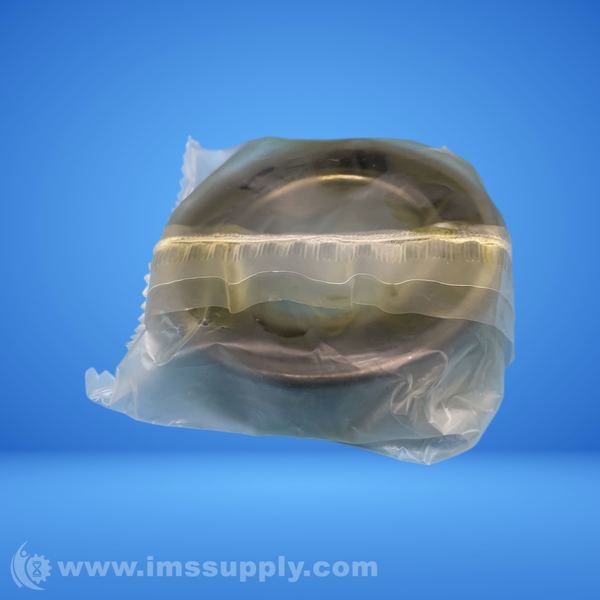

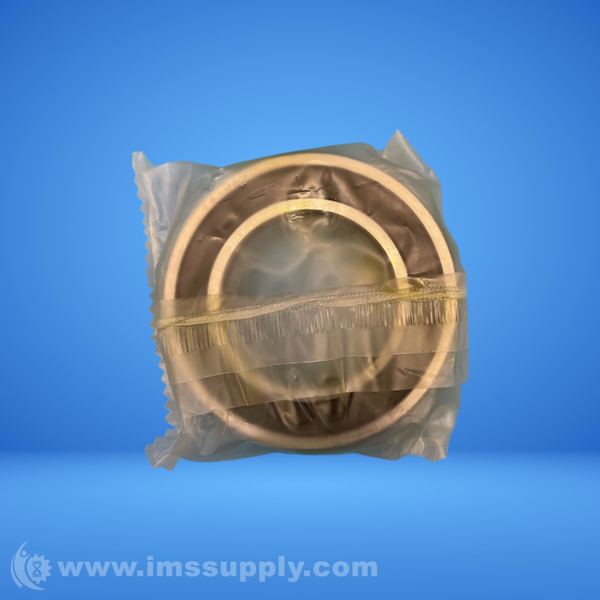

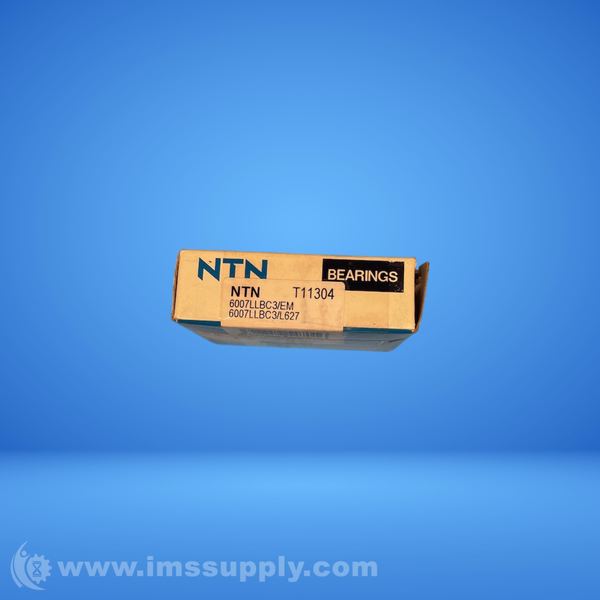

NTN 6007LLBC3/EM DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6007LLBC3/EM
IMS Product Code: 2129239
Packaging: Sold Individually
Description:
NTN 6007LLBC3/EM Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Double Sealed (Non-Contact Rubber Seal)
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round/Straight
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Seal Type: Non-Contact
- Seal Material: Nitrile Rubber
- Precision: ISO Class 0
- Radial Internal Clearance: C3
- Static Load Rating: 2320 lbf, 10300 N, 10.30 kN
- Dynamic Load Rating: 3970 lbf, 17700 N, 17.70 kN
- Enclosure: Double Sealed
- Weight: 0.331 lb, 0.150 kg
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- d: 1.3780 in, 35.000 mm
- D: 2.4409 in, 62.000 mm
- B: 0.5512 in, 14.000 mm
- r: 0.0394 in, 1.000 mm
- r1: 0.0197 in, 0.500 mm
- da min: 1.5748 in, 40.000 mm
- da max: 1.6535 in, 42.000 mm
- Da max: 2.2441 in, 57.000 mm
- ras max: 0.0394 in, 1.000 mm
- Limiting Speed - Grease: 12000 RPM
- Configuration: One
- Factor: 14.8
- Series: 60 Series
- Number of Rows: 1
- Closure Type: Double Sealed/Non-Contact Seals
- Load Capacity: 16000 N
- Maximum Speed: 12000 rpm Grease
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
