NTN 6010ZZ DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6010ZZ
IMS Product Code: 2153229
Packaging: Sold Individually
Description:

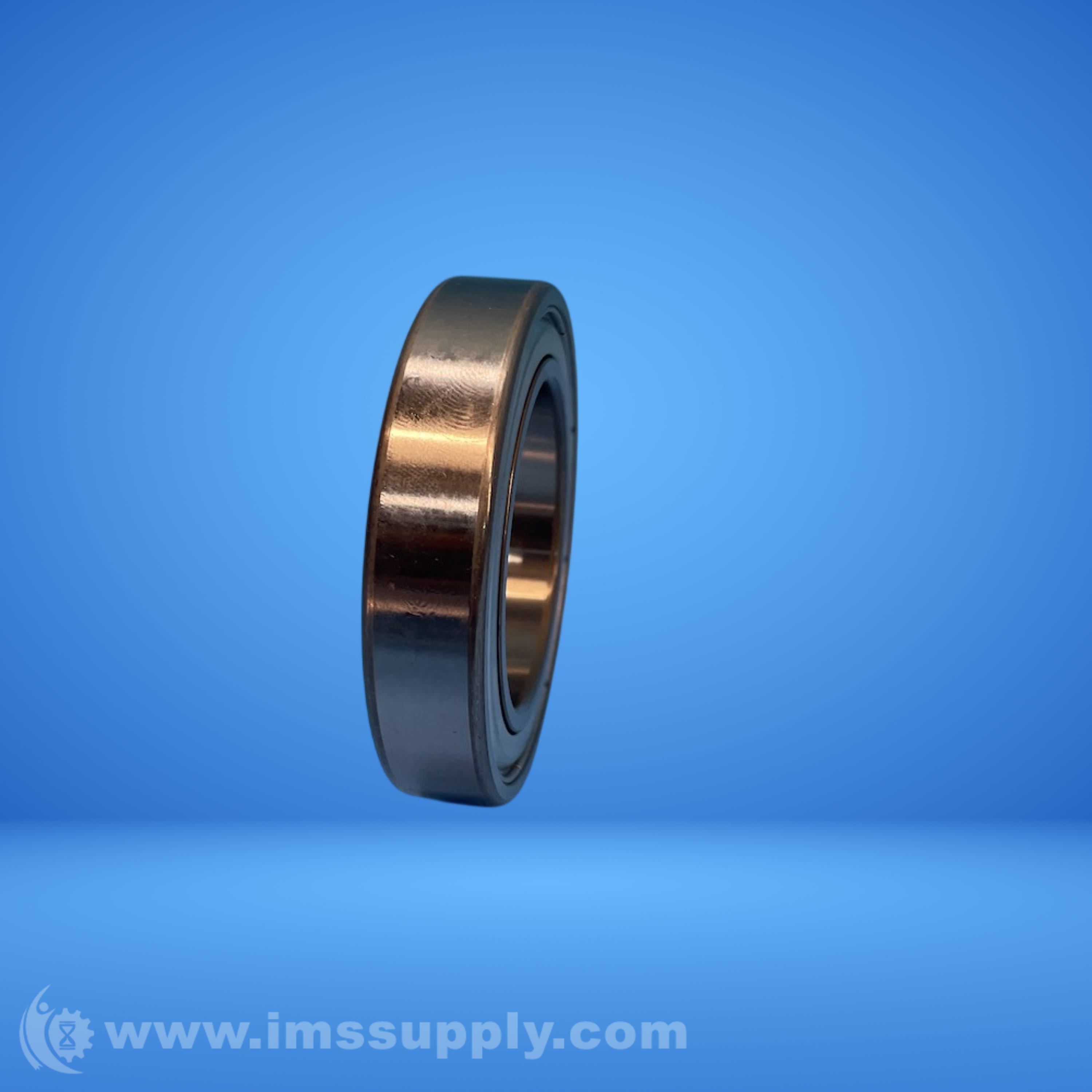

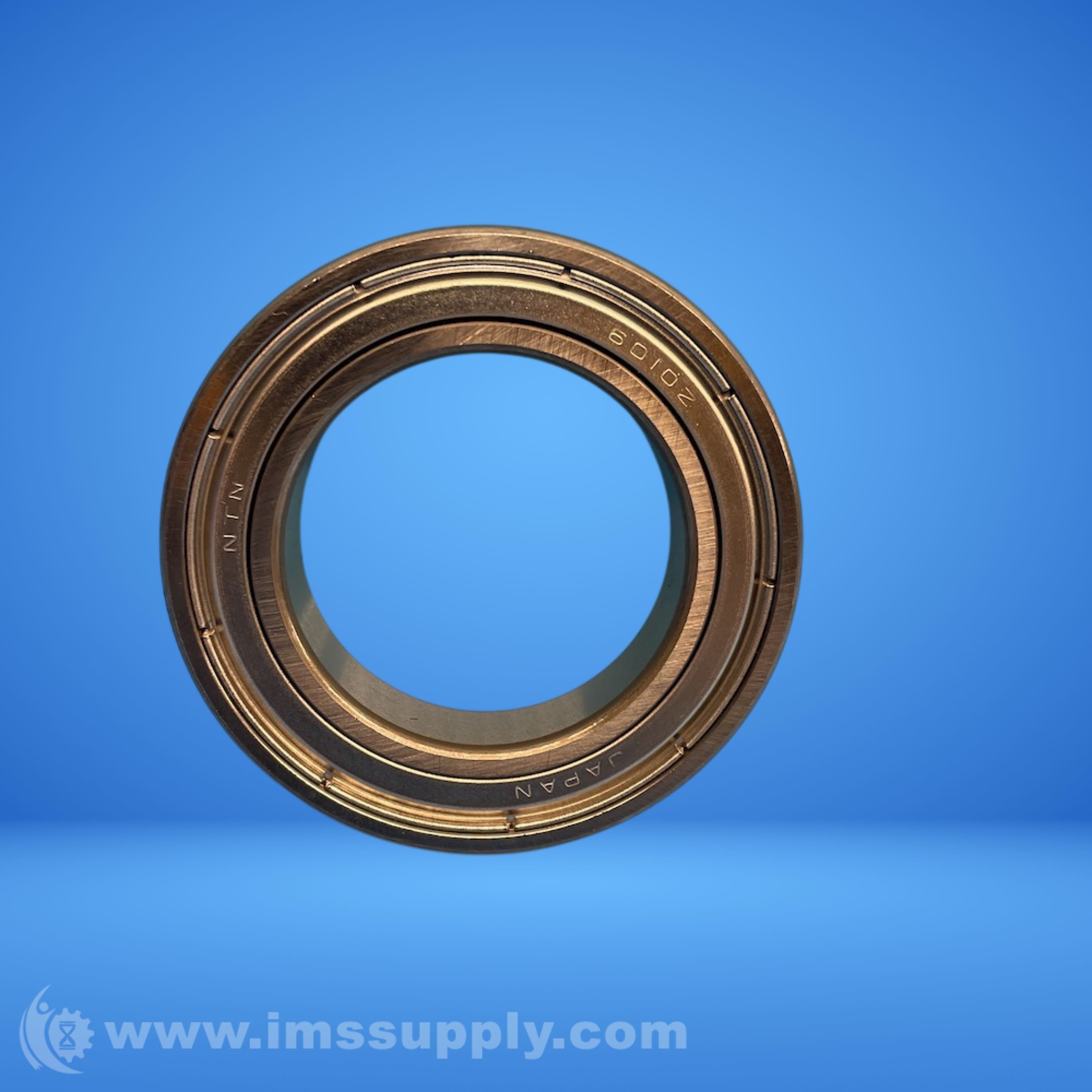

NTN 6010ZZ Deep Groove Ball Bearing
Deep Groove Ball Bearing, Double Shielded, 50 mm Bore Diameter, 80 mm Outside Diameter, 16 mm Width, High Carbon Chrome Steel
Specifications
- Bore Type: Straight
- Bore Diameter: 50 mm
- Outside Diameter: 80 mm
- Overall Width: 16 mm
- Closure Type: Double Shielded
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: CN
- Operating Temperature Range: -40 to 250 F
- Cage Type: Pressed
- Precision Rating: ISO Class 0
- Finish Coating: Uncoated
- Bearing Material: High Carbon Chrome Steel
- Cage Material: Steel
- Maximum RPM (Grease): 8400 rpm
- Radial Dynamic Load Capacity: 21800 N
- Radial Static Load Capacity: 16600 N
- Weight: 0.575 lbs
- Series: 60

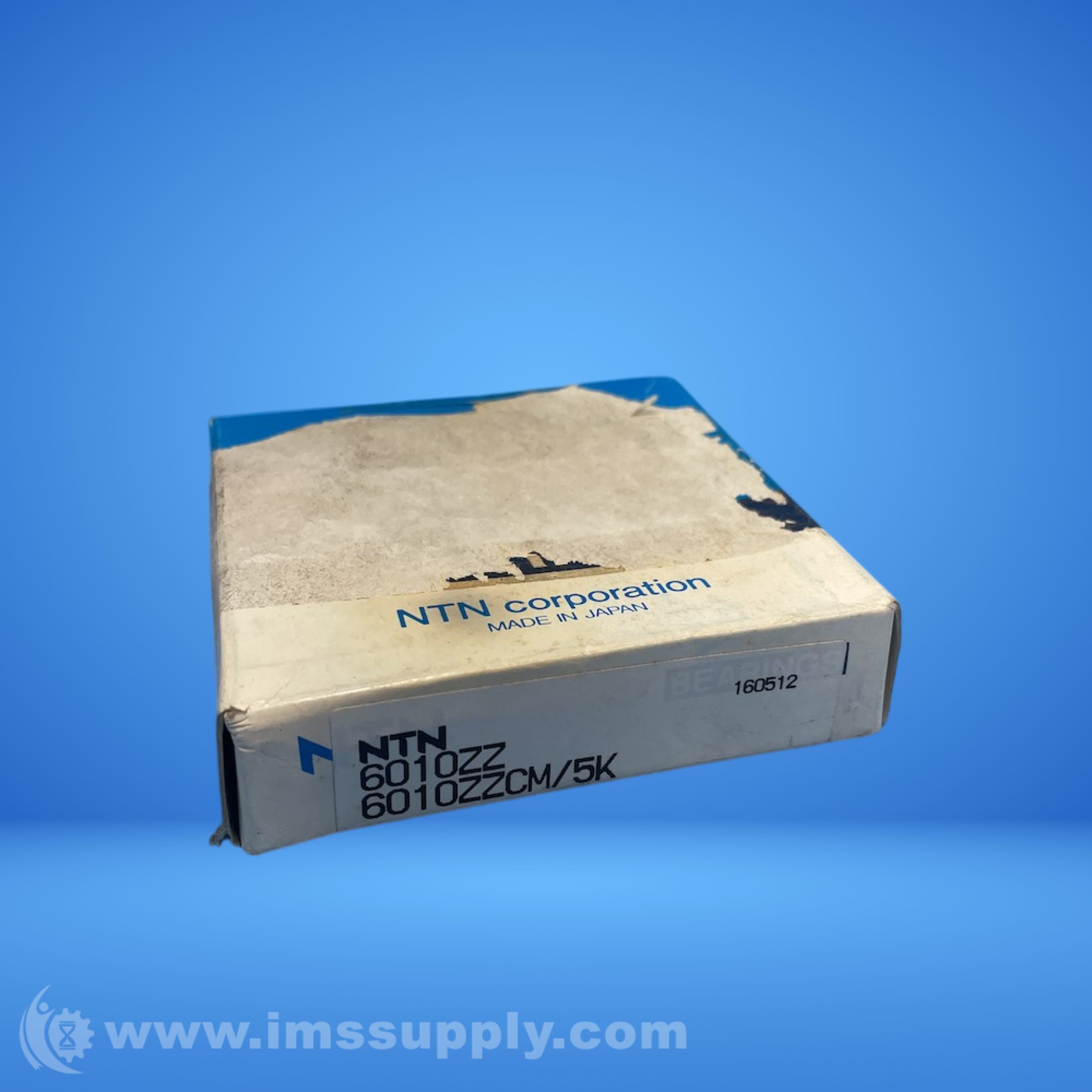

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
