NTN 6013Z DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6013Z
IMS Product Code: 1809067
Packaging: Sold Individually
Description:

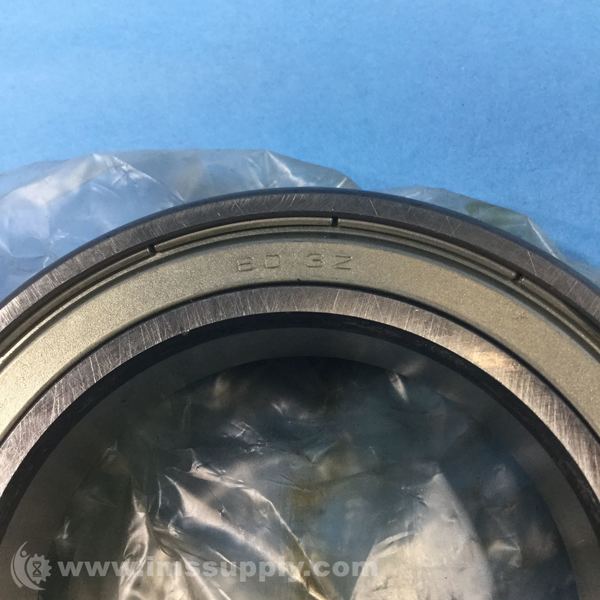

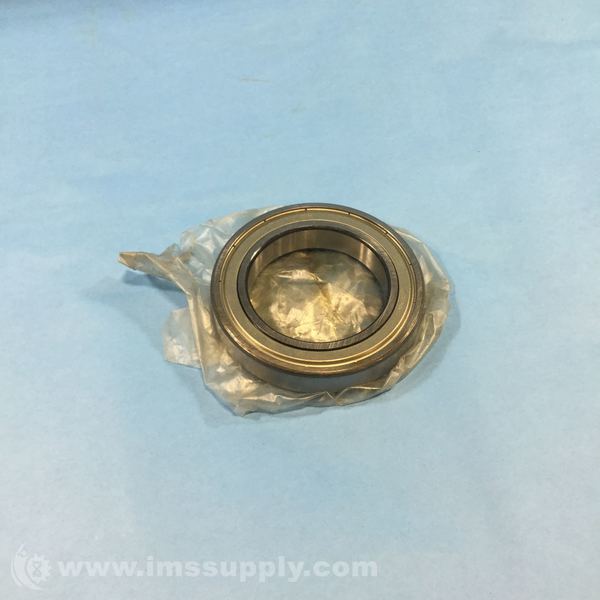

NTN 6013Z Deep Groove Ball Bearing
Single row, deep groove ball bearing with straight bore, single shield closure, and CN internal clearance.
Specifications
- Bore Diameter: 65 mm
- Outside Diameter: 100 mm
- Overall Width: 18 mm
- Bore Type: Straight
- Closure Type: Single Shielded
- Internal Clearance: CN
- Precision Rating: ISO Class 0
- Bearing Material: High Carbon Chrome Steel
- Cage Material: Steel
- Radial Dynamic Load Capacity: 7640 lbf
- Radial Static Load Capacity: 5650 lbf
- Max Rpm: 7700 rpm
- Operating Temperature Range: -40 to 120 degrees C
New - Open Box:

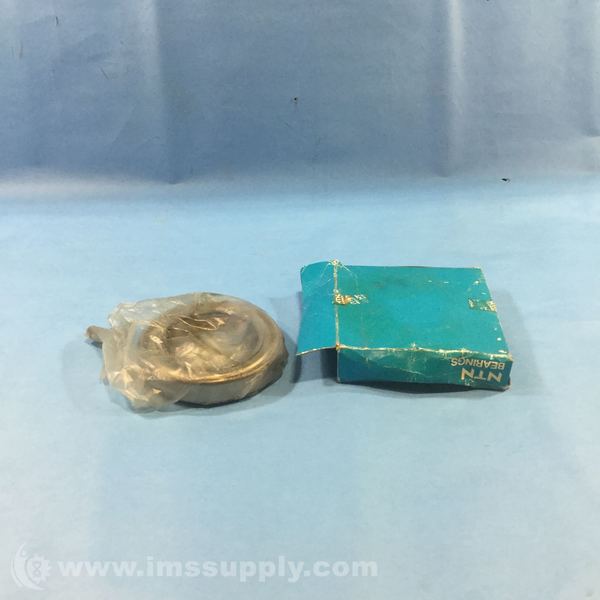

A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
