NTN 6021 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6021
IMS Product Code: 1826238
Packaging: Sold Individually
Description:

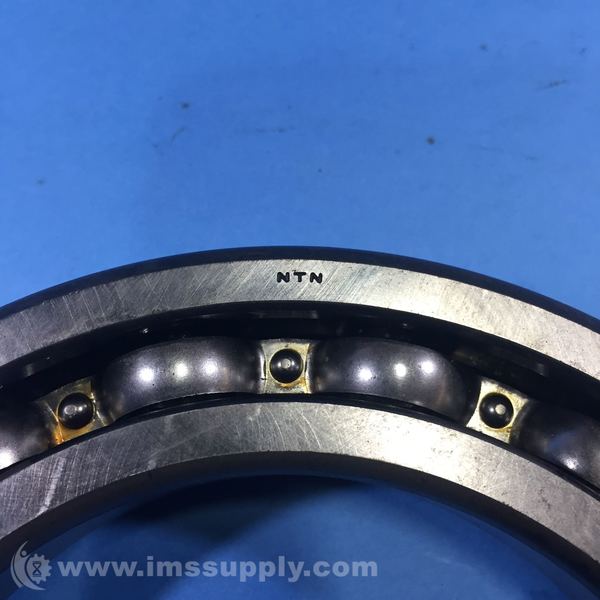

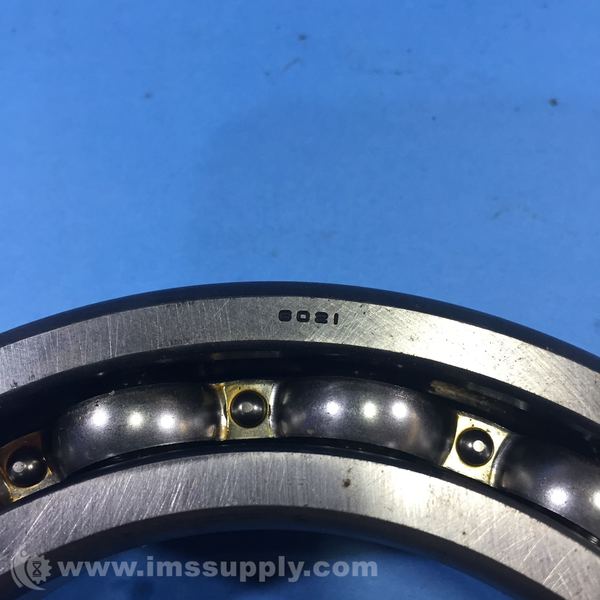

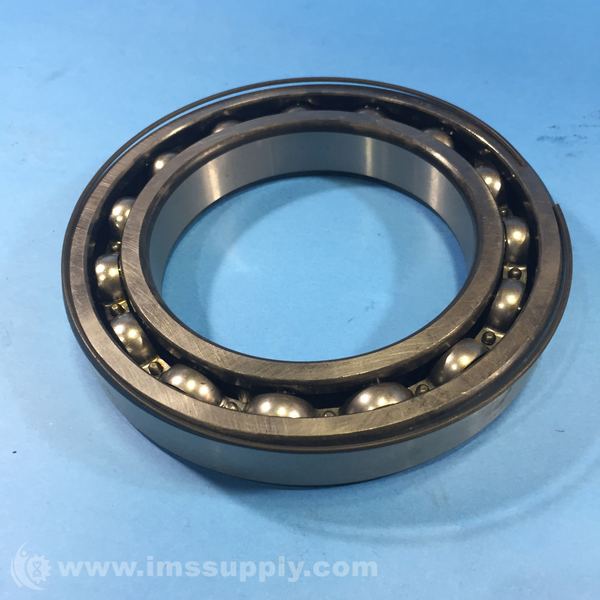

NTN 6021 Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Open Type
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 4700 RPM
- Limiting Speed - Grease: 4000 RPM
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 14725 lbf, 65500 N, 65.50 kN
- Dynamic Load Rating: 18097 lbf, 80500 N, 80.50 kN
- Enclosure: Open
- Weight: 3.506 lb, 1.590 kg
- Operating Temperature Range: -40 to 250 degrees F, -40 to 120 degrees C
- d: 4.1340 in, 105.000 mm
- D: 6.2992 in, 160.000 mm
- B: 1.0236 in, 26.000 mm
- r: 0.0787 in, 2.000 mm
- r1: 0.0197 in, 0.500 mm
- da min: 4.4882 in, 114.000 mm
- da max: 4.6850 in, 119.000 mm
- Da max: 5.9449 in, 151.000 mm
- ras max: 0.0787 in, 2.000 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
