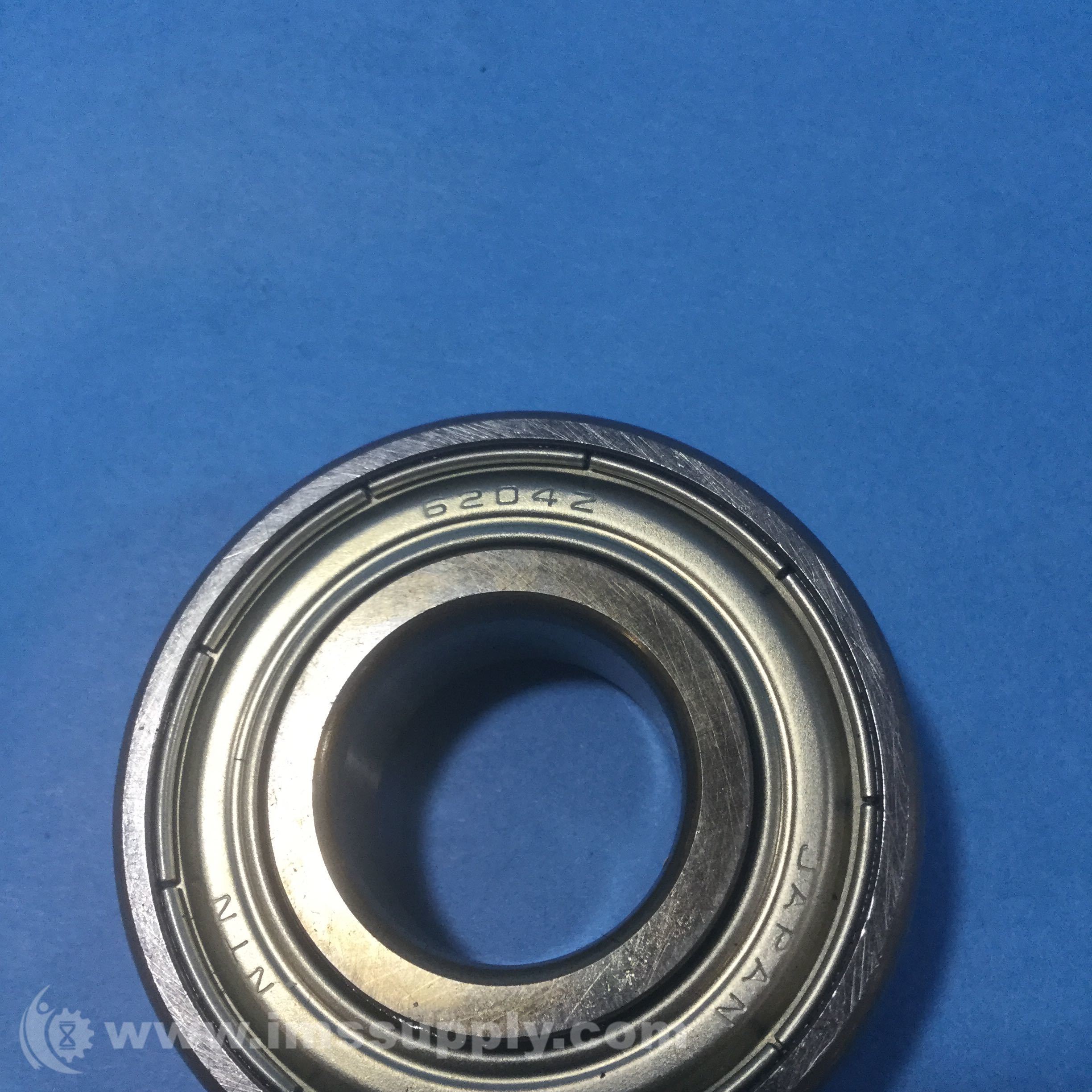

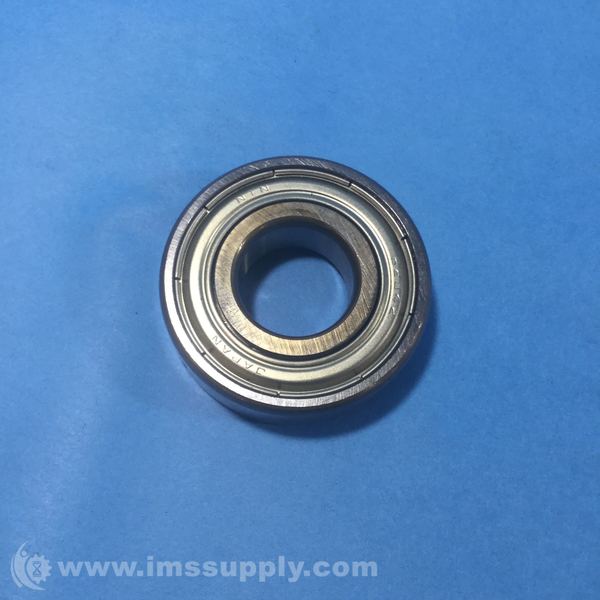

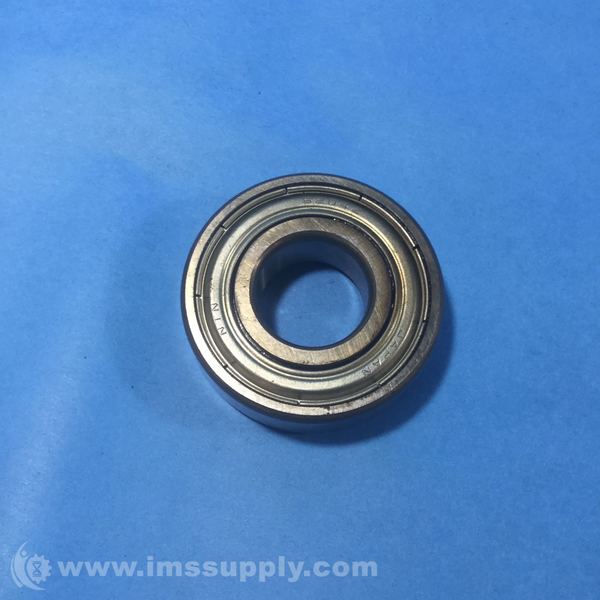

NTN 6204Z DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6204Z
IMS Product Code: 1793330
Packaging: Sold Individually
Description:
NTN 6204Z Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Single Shielded
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 18000 RPM
- Limiting Speed - Grease: 16000 RPM
- Precision: ISO Class 0
- Radial Internal Clearance: CN
- Static Load Rating: 1495 lbf, 6650 N, 6.65 kN
- Dynamic Load Rating: 3192 lbf, 14200 N, 14.20 kN
- Enclosure: Single Shielded
- Weight: 0.218 lb, 0.100 kg
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- d: 0.7870 in, 20.000 mm
- D: 1.8504 in, 47.000 mm
- B: 0.5512 in, 14.000 mm
- r: 0.0394 in, 1.000 mm
- r1: 0.0197 in, 0.500 mm
- da min: 0.9843 in, 25.000 mm
- da max: 1.1024 in, 28.000 mm
- Da max: 1.6535 in, 42.000 mm
- ras max: 0.0394 in, 1.000 mm
- Series: 62
