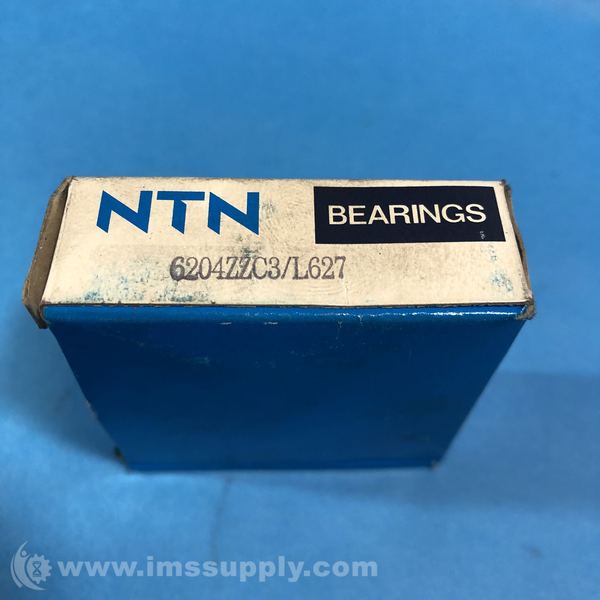

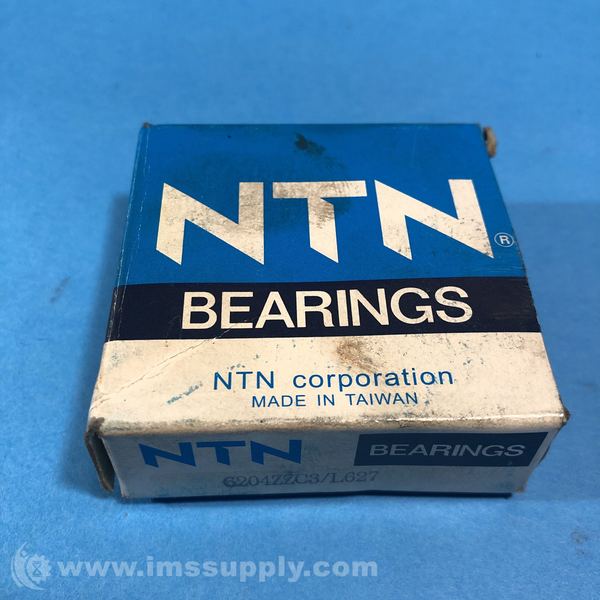

NTN 6204ZZC3/L627 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6204ZZC3/L627
IMS Product Code: 1924875
Packaging: Sold Individually
Description:
NTN 6204ZZC3/L627 Deep Groove Ball Bearing
Deep Groove Ball Bearing, Single Row, Double Shielded, 20mm Bore Diameter, 47mm Outside Diameter, 14mm Width
Specifications
- Bore Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Cage Material: Pressed Steel
- Dynamic Load Capacity: 2,890 lb.
- Seal/Shield Type: Double Shielded
- Single Row/Double Row: Single Row
- Temp. Range: -20 Degrees to 250 Degrees F
- Static Load Capacity: 1,500 lb.
- Shield Material: Rust-resistant Metal
- Lubrication: SRI#2 Grease
- Seal Material: Synthetic Rubber Molded to a Steel Plate
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
Ships today if ordered in the next 15 hours and 14 minutes.
