NTN 6206C3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6206C3
IMS Product Code: 2125101
Packaging: Sold Individually
Description:

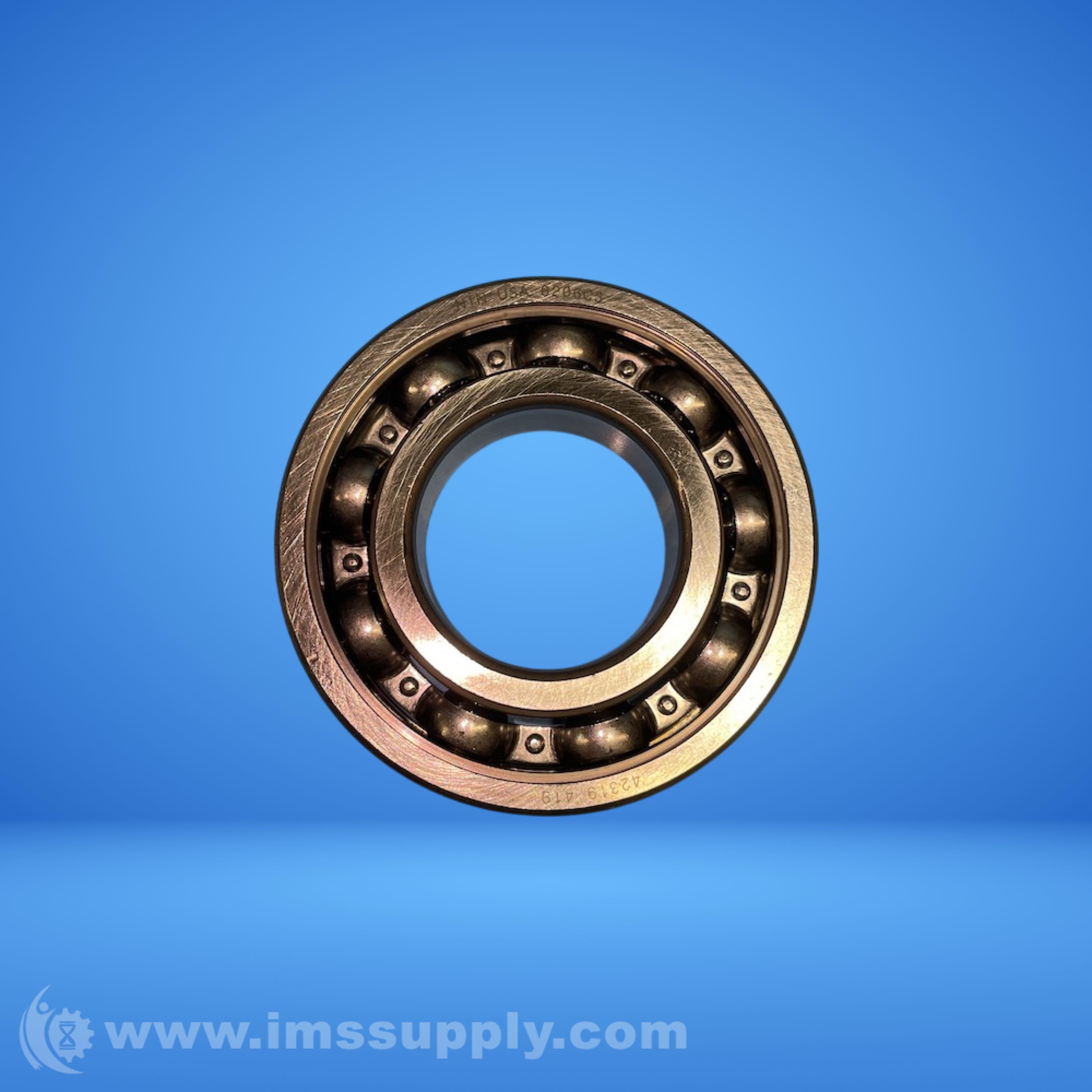

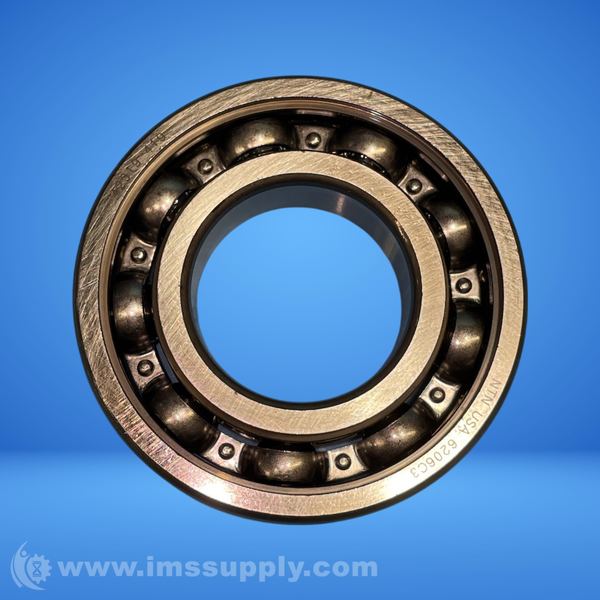

NTN 6206C3 Deep Groove Ball Bearing
Deep Groove Ball Bearing, Open Type, High Carbon Chrome Steel, Pressed Steel Cage, 30 mm Bore Diameter, 62 mm Outside Diameter, 16 mm Width, C3 Radial Internal Clearance, Class 0 Precision
Specifications
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 13000 RPM
- Limiting Speed - Grease: 11000 RPM
- Precision: Class 0
- Radial Internal Clearance: C3
- Static Load Rating: 2540 lbf, 11300 N, 11.30 kN
- Dynamic Load Rating: 4850 lbf, 21600 N, 21.60 kN
- Enclosure: Open
- Weight: 0.437 lb, 0.198 kg
- Operating Temperature Range: -40 to 250 degrees F, -40 to 120 degrees C
- d: 1.1811 in, 30.000 mm
- D: 2.4409 in, 62.000 mm
- B: 0.6299 in, 16.000 mm
- r: 0.0394 in, 1.000 mm
- r1: 0.0197 in, 0.500 mm
- da min: 1.3780 in, 35.000 mm
- da max: 1.5354 in, 39.000 mm
- Da max: 2.2441 in, 57.000 mm
- ras max: 0.0394 in, 1.000 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
