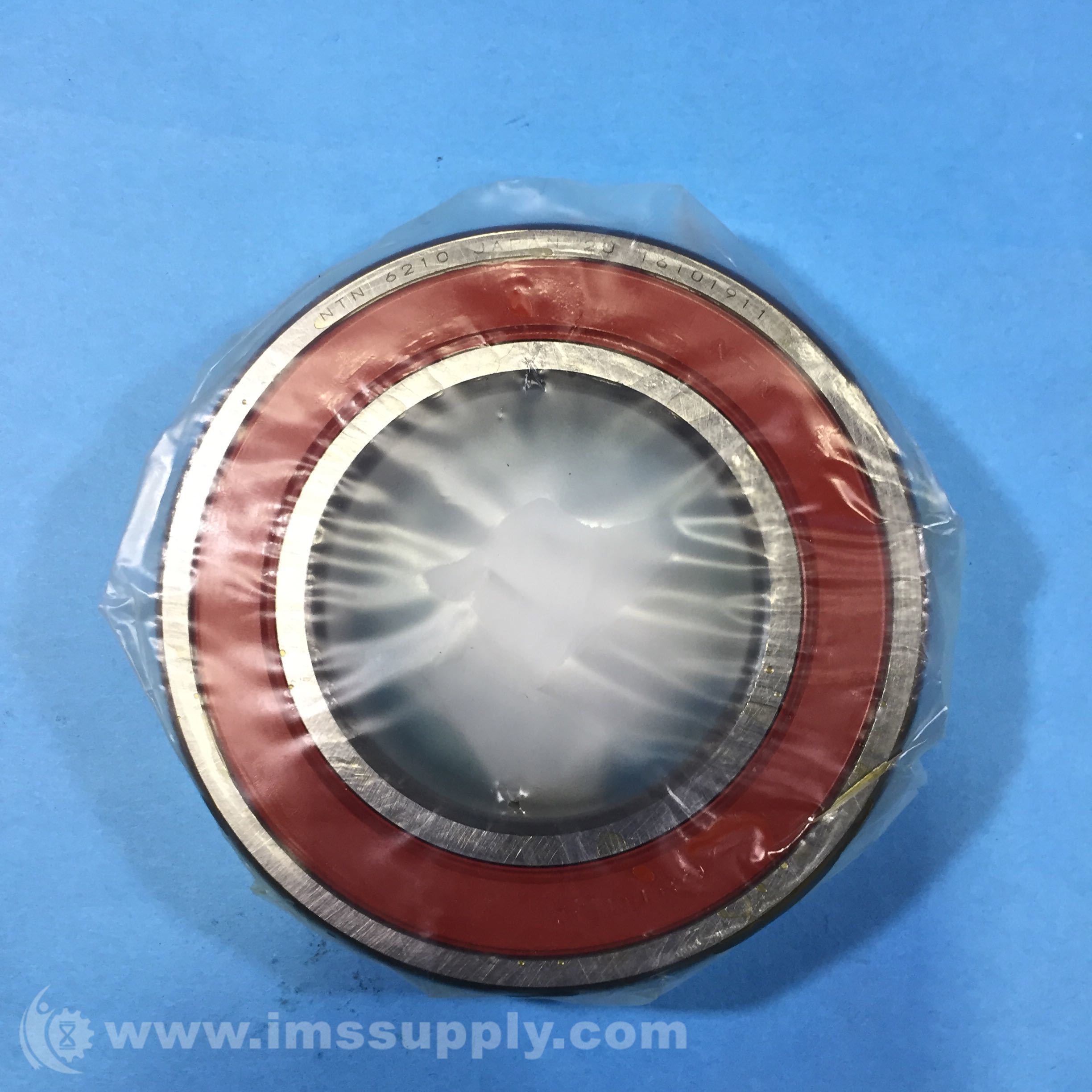

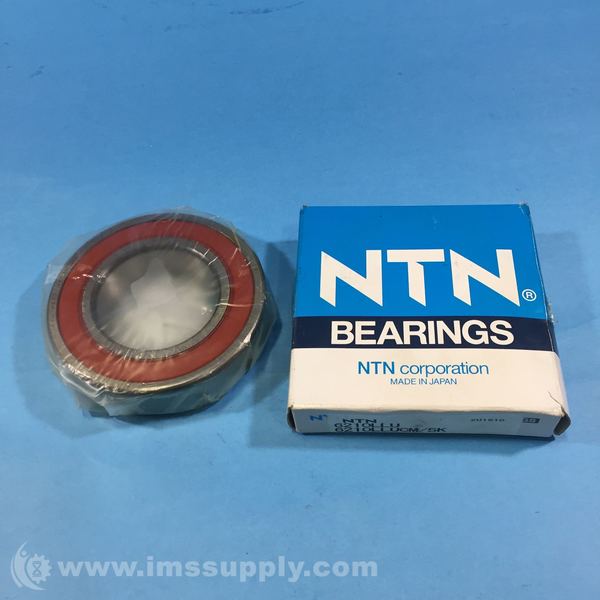

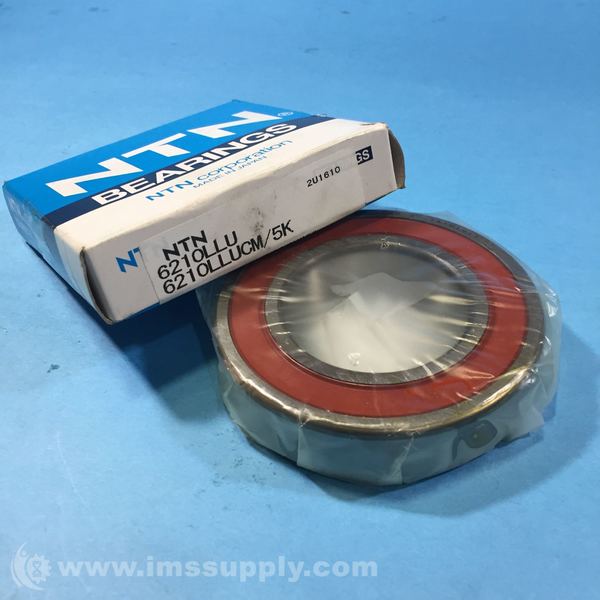

NTN 6210LLUCM/5K DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6210LLUCM/5K
IMS Product Code: 1862876
Packaging: Sold Individually
Description:
NTN 6210LLUCM/5K Deep Groove Ball Bearing
Deep groove ball bearing with dimensions 50x90x20mm, sealed on both sides.
Specifications
- Bore Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 20 mm
- Cage Material: Steel
- End Type: Sealed
- Number of Rows: 1
- Static Load Rating: 23.2 kN
- Dynamic Load Rating: 39 kN
- Internal Clearance: CM
- Limiting Speed: 4700 rpm
- Bore Type: Cylindrical
- Sealing: LLU - seal on both sides
- Minimum Operating Temperature: -25 degrees C
- Maximum Operating Temperature: 110 degrees C
- Weight: 0.46 kg
