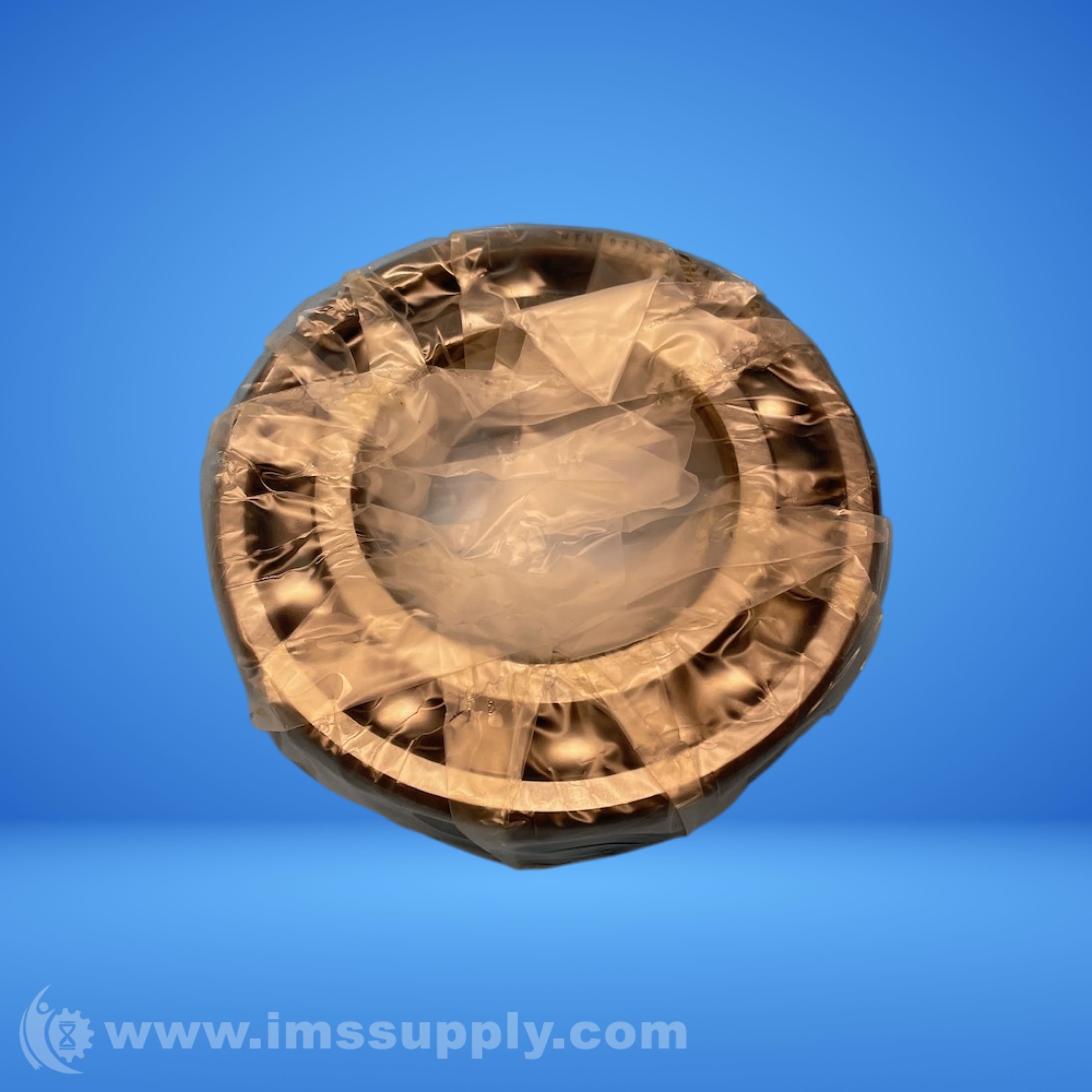

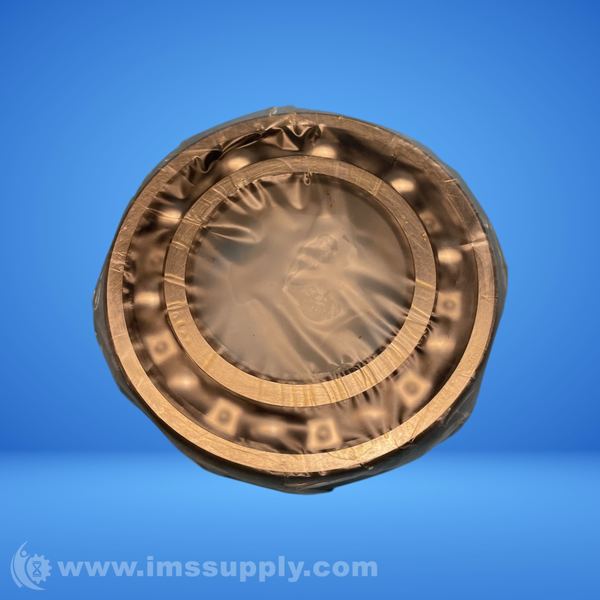

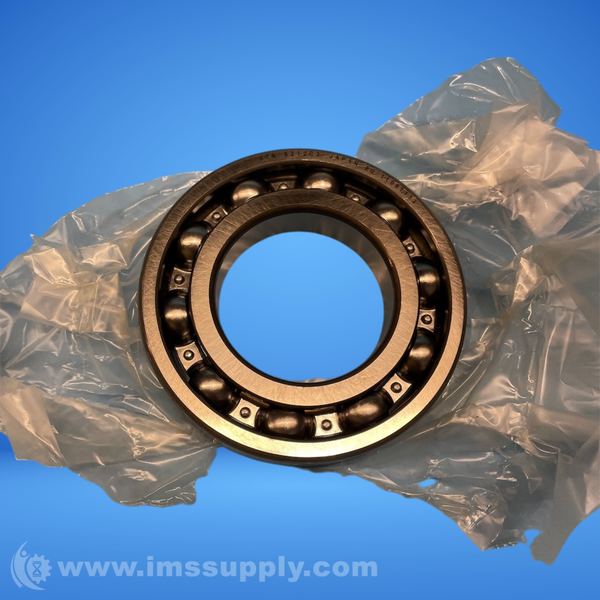

NTN 6212C3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6212C3
IMS Product Code: 2123777
Packaging: Sold Individually
Description:
NTN 6212C3 Deep Groove Ball Bearing
Deep Groove Ball Bearing with 60 mm bore diameter, 110 mm outside diameter, and 22 mm width. Made of high carbon chrome steel with a pressed steel cage. Open enclosure and C3 internal clearance.
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Straight
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 7000 RPM
- Limiting Speed - Grease: 6000 RPM
- Precision: Class 0
- Configuration: One
- Radial Internal Clearance: C3
- Static Load Rating: 8090 lbf, 36000 N, 36.00 kN
- Dynamic Load Rating: 13030 lbf, 58000 N, 58.00 kN
- Enclosure: Open
- Weight: 1.687 lb, 0.765 kg
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- d: 2.3622 in, 60.000 mm
- D: 4.3307 in, 110.000 mm
- B: 0.8661 in, 22.000 mm
- r: 0.0591 in, 1.500 mm
- r1: 0.0197 in, 0.500 mm
- da min: 2.6772 in, 68.000 mm
- da max: 2.9528 in, 75.000 mm
- Da max: 4.0157 in, 102.000 mm
- ras max: 0.0591 in, 1.500 mm
- Bore Diameter: 60 mm
- Outside Diameter: 110 mm
- Overall Width: 22 mm
- Closure Type: Open
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: C3
- Precision Rating: Class 0
- Seal Type: Open
- Finish Coating: Uncoated
- Bearing Material: High Carbon Chrome Steel
- Inner Ring Width: 22.000 mm, 0.8661 in
- Fillet Radius: 0.0591 in, 1.500 mm
- Max Rpm: 7000 rpm
- Series: 62
- Radial Dynamic Load Capacity: 13030 lbf
- Radial Static Load Capacity: 8090 lbf

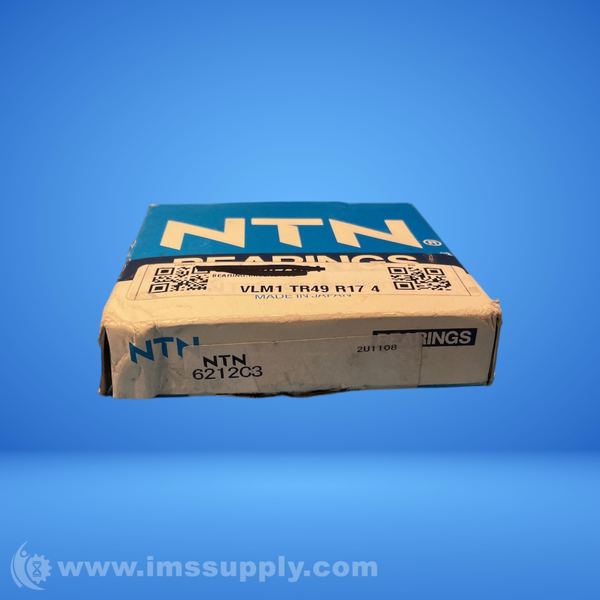

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
