NTN 6212Z DEEP GROOVE BALL BEARING
Starting At: $34.50
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6212Z
IMS Product Code: 1809078
Packaging: Sold Individually
Description:

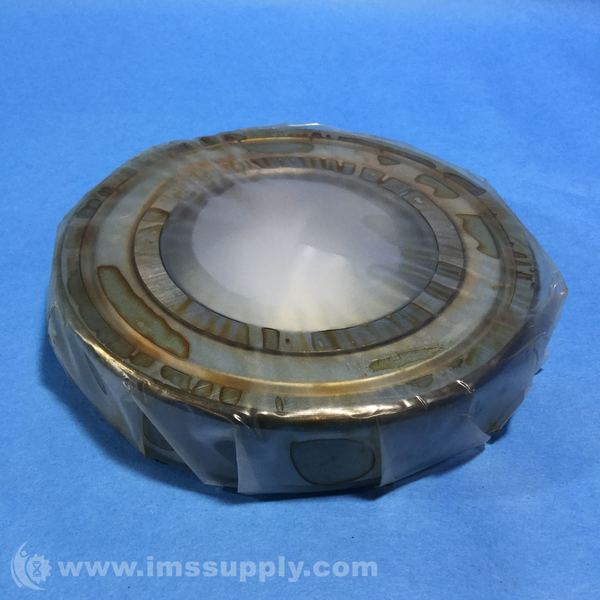

NTN 6212Z Deep Groove Ball Bearing
Specifications:
- Bore diameter: 60 mm
- Outside diameter: 110 mm
- Overall width: 22 mm
- Finish/coating: Uncoated
- Precision rating: ISO Class 0
- Bearing material: High Carbon Chrome Steel
- Bore type: Round
- Cage material: Steel
- Closure type: Single Shield
- Inner ring width: 22 mm
- Row type & fill slot: Single Row Non-Fill Slot
- Outer ring width: 22 mm
- Snap ring included: Without Snap Ring
- Maximum rpm (grease): 6000 rpm
- Internal clearance: CN
- Maximum rpm (oil): 7000 rpm
- Operating temperature range: -40 to 120 ºC
- Fillet radius: 1.5 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 11 hours and 22 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 22 minutes.
