NTN 6216C3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6216C3
IMS Product Code: 2123150
Packaging: Sold Individually
Description:

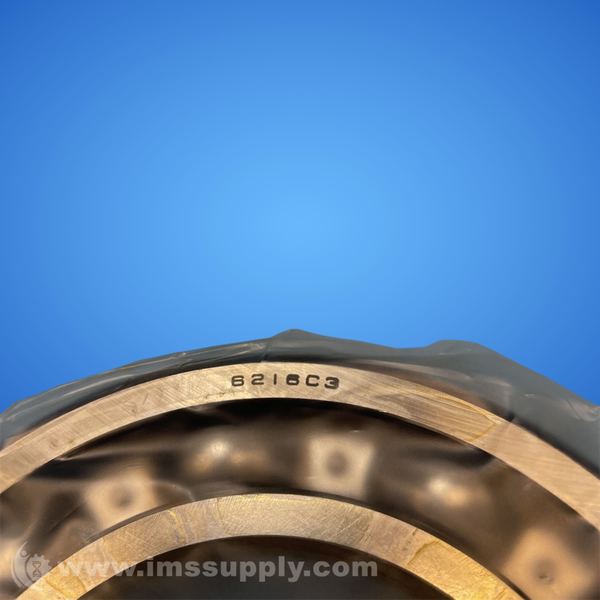

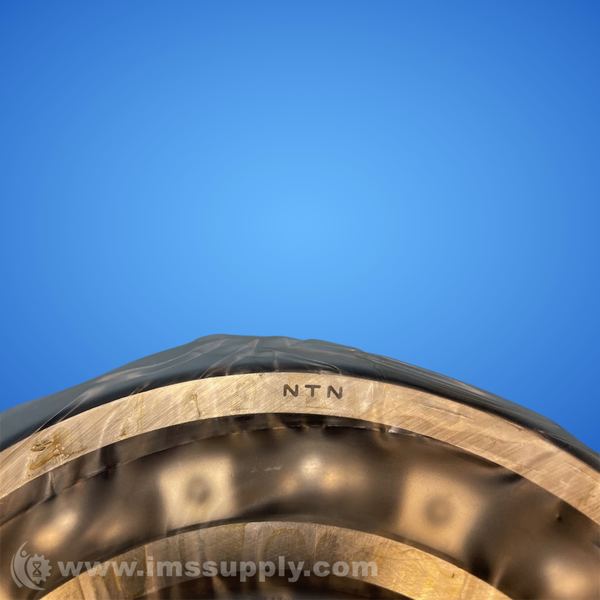

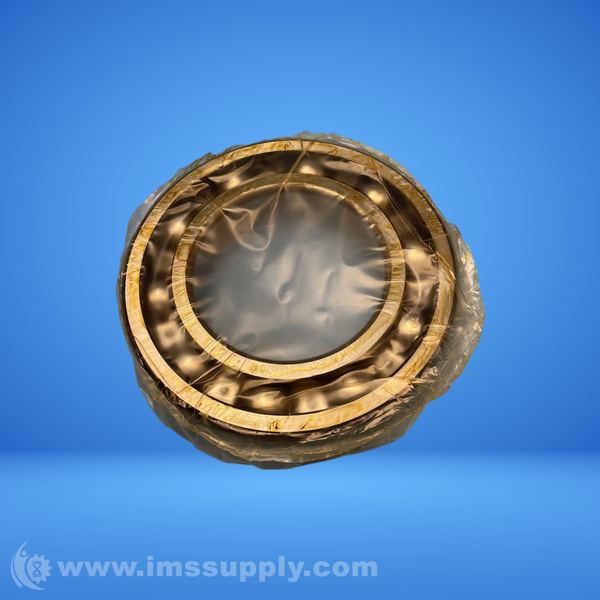

NTN 6216C3 Deep Groove Ball Bearing
Deep groove ball bearing with 80 mm bore diameter, 140 mm outside diameter, and 26 mm width. Made of high carbon chrome steel with pressed steel cage. Open type with C3 radial internal clearance.
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Straight
- Outside Diameter: 140 mm
- Overall Width: 26 mm
- Closure Type: Open
- Internal Clearance: C3
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Precision Rating: Class 0
- Limiting Speed - Oil: 5300 RPM
- Limiting Speed - Grease: 4500 RPM
- Static Load Rating: 11910 lbf
- Dynamic Load Rating: 18090 lbf
- Weight: 3.056 lb
- Operating Temperature Range: -40 to 250 degrees F
