NTN 6217C3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6217C3
IMS Product Code: 2123056
Packaging: Sold Individually
Description:

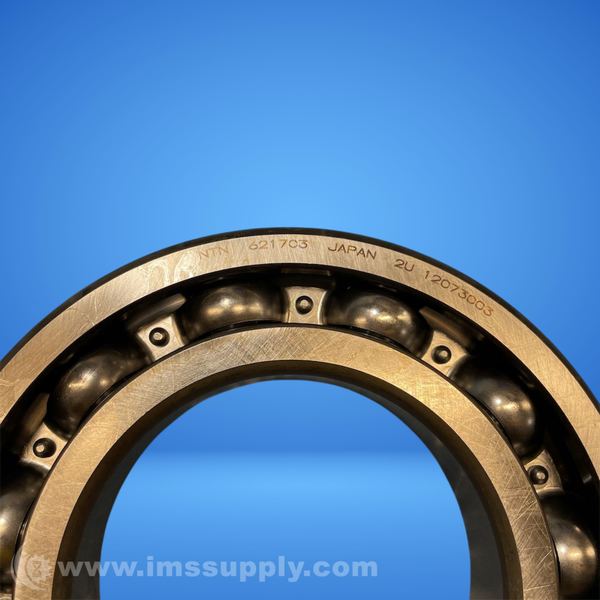

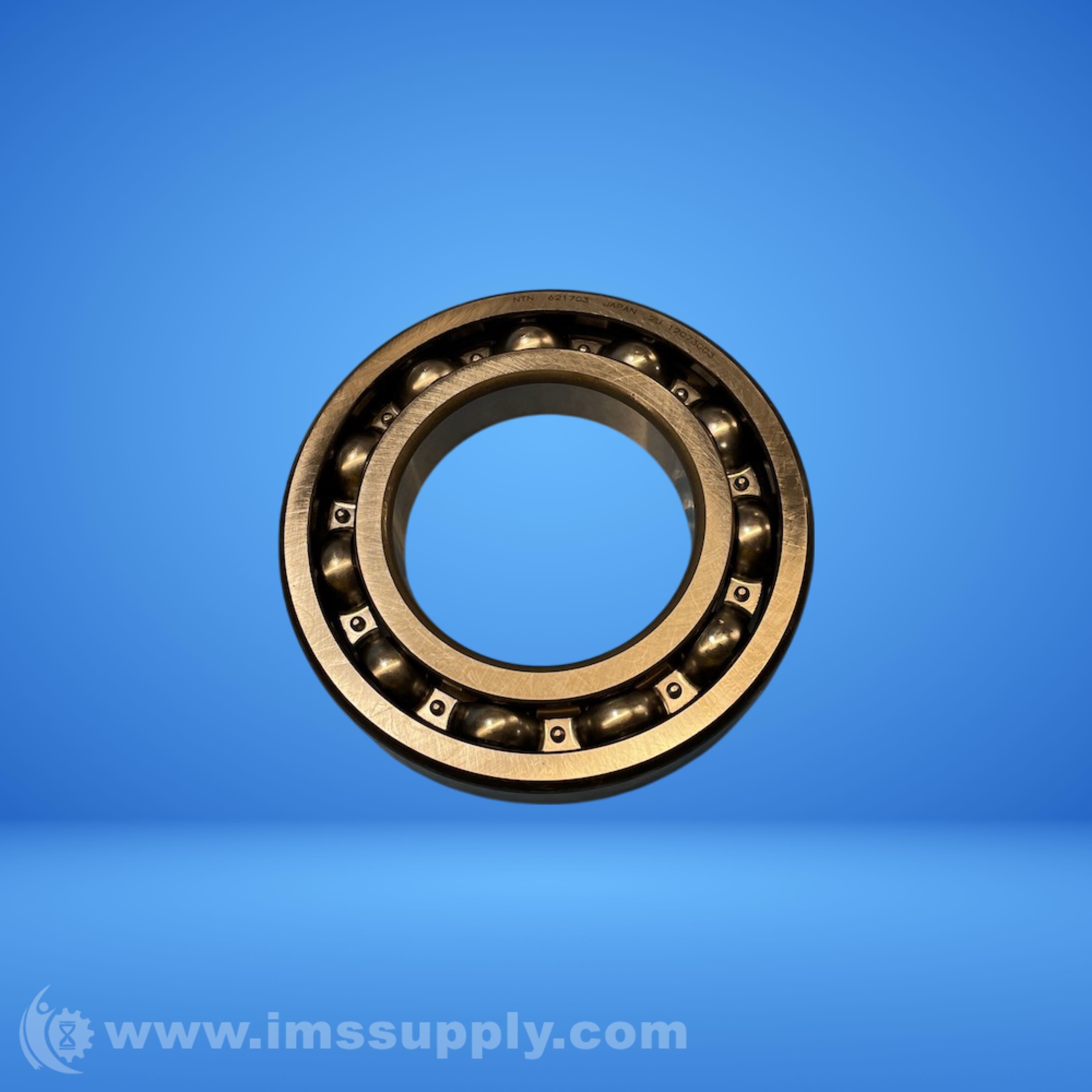

NTN 6217C3 Deep Groove Ball Bearing
Deep groove ball bearing with straight bore, 85 mm ID, 150 mm OD, 28 mm width, open closure, C3 internal clearance, high carbon chrome steel bearing and pressed steel cage.
Specifications
- Bore Type: Straight
- Bore Diameter: 85 mm
- Outside Diameter: 150 mm
- Overall Width: 28 mm
- Closure Type: Open
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: C3
- Cage Type: Pressed
- Precision Rating: Class 0
- Seal Type: Open
- Finish Coating: Uncoated
- Bearing Material: High Carbon Chrome Steel
- Cage Material: Steel
- Max Rpm: 5000 rpm
- Series: 62
- Radial Dynamic Load Capacity: 20680 lbf
- Radial Static Load Capacity: 14380 lbf
- Weight: 3.99 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, September 8, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
