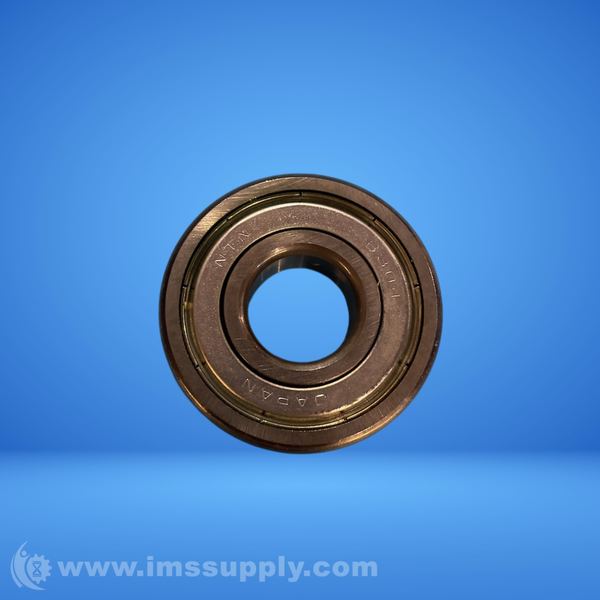

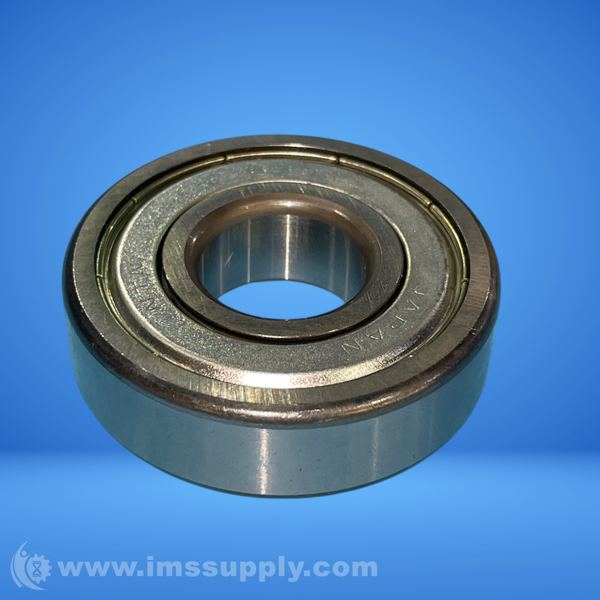

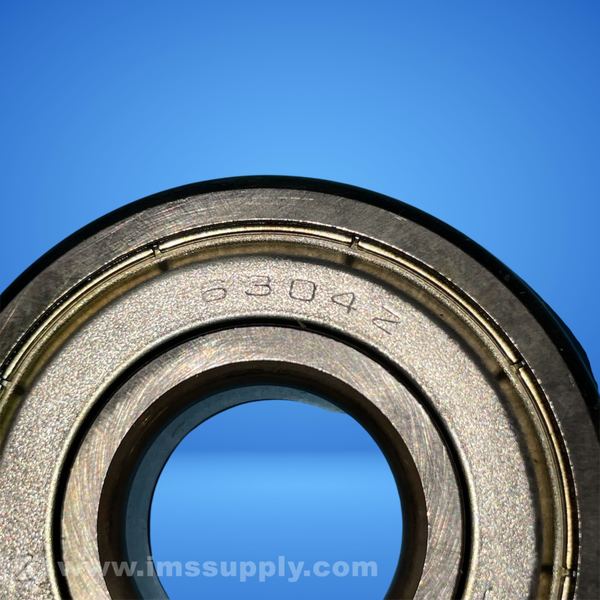

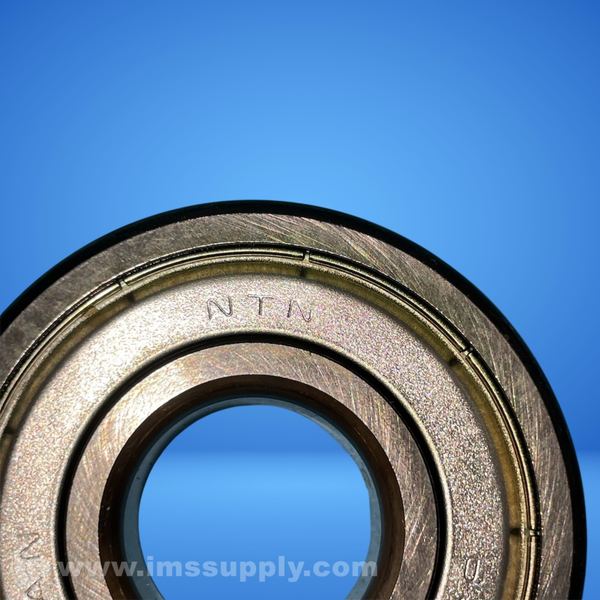

NTN 6304Z DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6304Z
IMS Product Code: 2167263
Packaging: Sold Individually
Description:
NTN 6304Z Deep Grove Ball Bearing
Single Row Radial Ball Bearing - Single Shielded
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 17000 RPM
- Limiting Speed - Grease: 14000 RPM
- Precision: ISO Class 0
- Configuration: One
- Factor: 45.5
- Radial Internal Clearance: CN
- Static Load Rating: 7900 N
- Dynamic Load Rating: 17600 N
- Enclosure: Single Shielded
- Weight: 0.313 lb
- Operating Temperature Range: -40 to 250 degrees F
- d: 20 mm
- D: 52 mm
- B: 15 mm
- r: 1.1 mm
- r1: 0.5 mm
- da min: 26.5 mm
- da max: 28.5 mm
- Da max: 45.5 mm
- ras max: 1 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 44 minutes.
