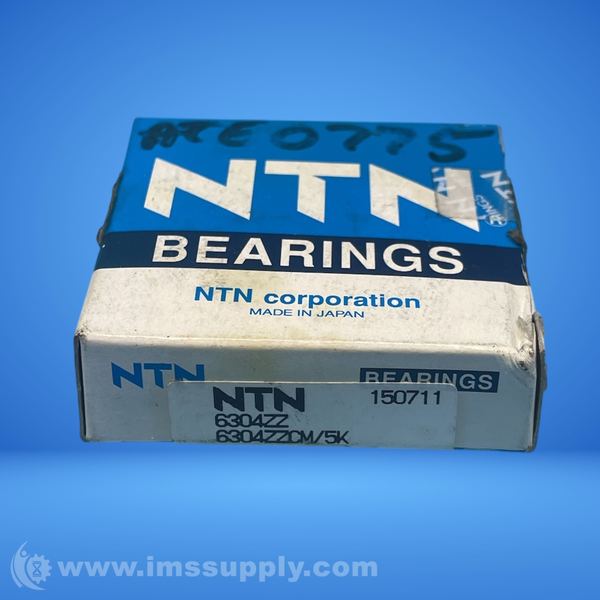

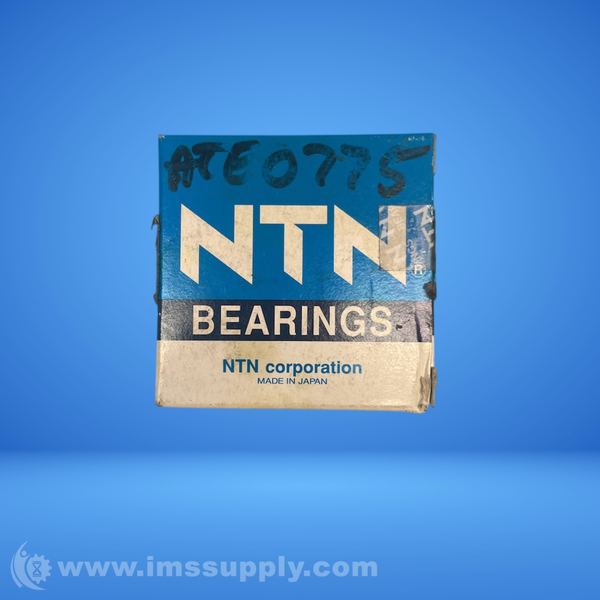

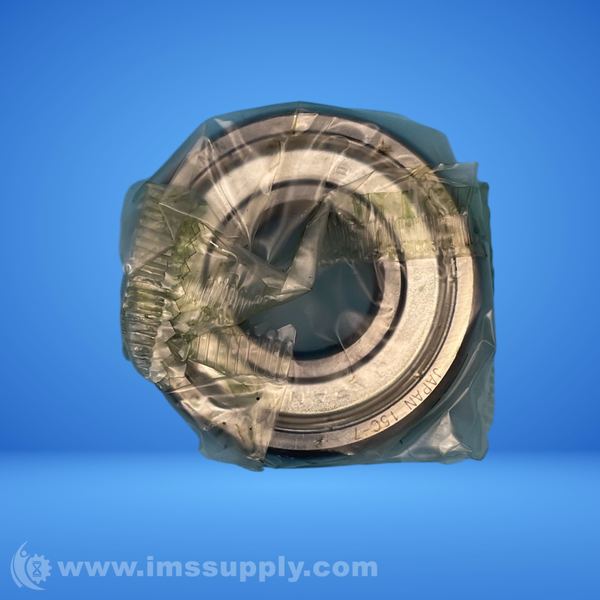

NTN 6304ZZ DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6304ZZ
IMS Product Code: 2167541
Packaging: Sold Individually
Description:
NTN 6304ZZ Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Double Shielded
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round, Straight
- Material: High Carbon Chrome Steel, Chrome Steel (AISI 52100)
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Grease: 14000.0 RPM
- Precision: ISO Class 0
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 1780 lbf, 7900 N
- Dynamic Load Rating: 3950 lbf, 17600 N
- Enclosure: Double Shielded
- Weight: 0.320 lb, 0.145 kg
- Operating Temperature Range: -40 to 250 �F, -40 to 120 �C
- d: 0.7874 in, 20.000 mm
- D: 2.0472 in, 52.000 mm
- B: 0.5906 in, 15.000 mm
- r: 0.0433 in, 1.100 mm
- r1: 0.0197 in, 0.500 mm
- da min: 1.0433 in, 26.500 mm
- da max: 1.1220 in, 28.500 mm
- Da max: 1.7913 in, 45.500 mm
- ras max: 0.0394 in, 1.000 mm
- Bore Diameter: 20 mm
- Outside Diameter: 52 mm
- Overall Width: 15 mm
- Closure Type: Double Shielded
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: CN
- Precision Rating: ISO Class 0
- Finish Coating: Uncoated
- Bearing Material: High Carbon Chrome Steel
- Inner Ring Width: 15.000 mm
- Fillet Radius: 1.100 mm
- Max Rpm: 17000 rpm
- Series: 63
- Radial Dynamic Load Capacity: 3950 lbf
- Radial Static Load Capacity: 1780 lbf
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
