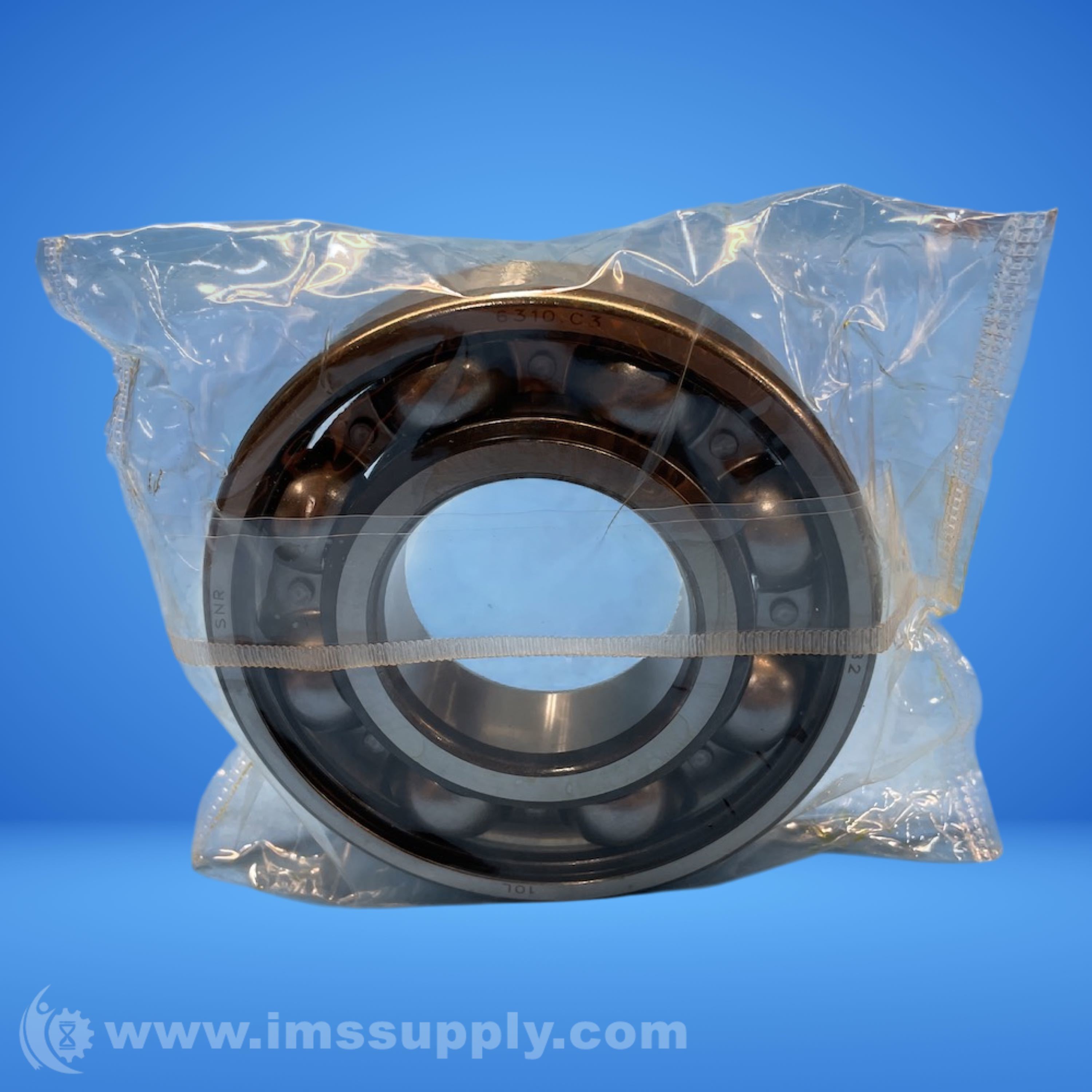

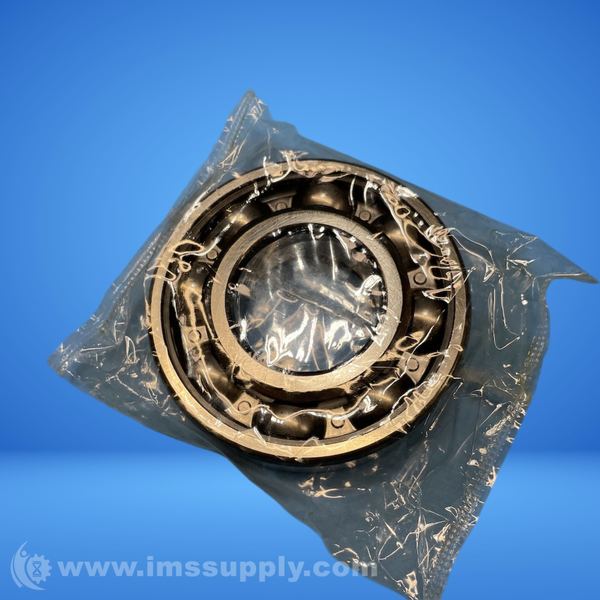

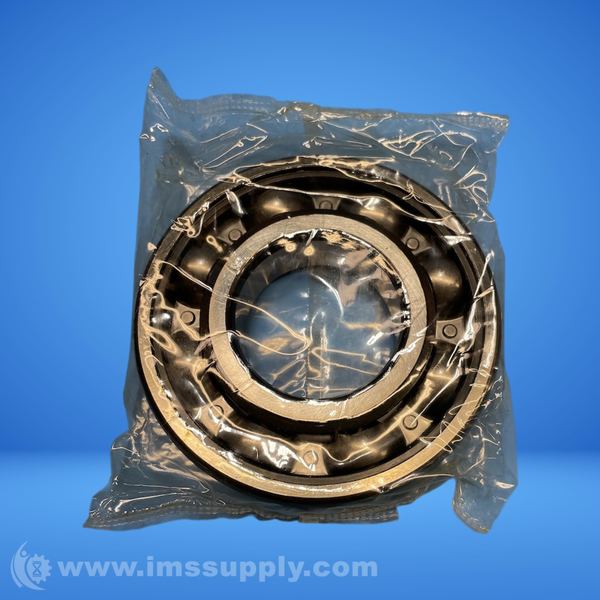

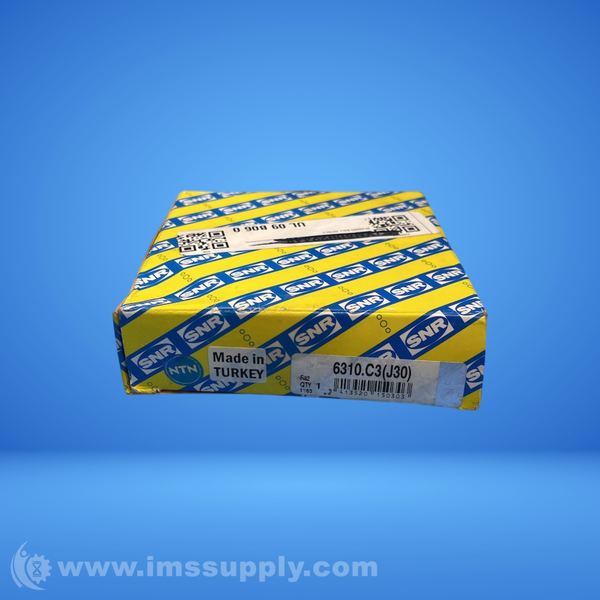

NTN 6310.C3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6310.C3
IMS Product Code: 2123124
Packaging: Sold Individually
Description:
NTN 6310.C3 Deep Groove Ball Bearing
Deep groove ball bearing with straight bore, 50 mm ID, 110 mm OD, 27 mm width, open type, C3 internal clearance, high carbon chrome steel construction.
Specifications
- Bore Type: Straight
- Bore Diameter: 50 mm
- Outside Diameter: 110 mm
- Overall Width: 27 mm
- Closure Type: Open
- Row Type: Single Row Non-Fill Slot
- Internal Clearance: C3
- Bearing Material: High Carbon Chrome Steel
- Cage Material: Steel
- Cage Type: Pressed
- Precision Rating: Class 0
- Max Rpm: 7500 rpm
- Radial Dynamic Load Capacity: 15390 lbf
- Radial Static Load Capacity: 8650 lbf
- Weight: 2.31 lbs
- Series: 63
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, September 8, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
