NTN 6312ZZC3/EM DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6312ZZC3/EM
IMS Product Code: 2121323
Packaging: Sold Individually
Description:

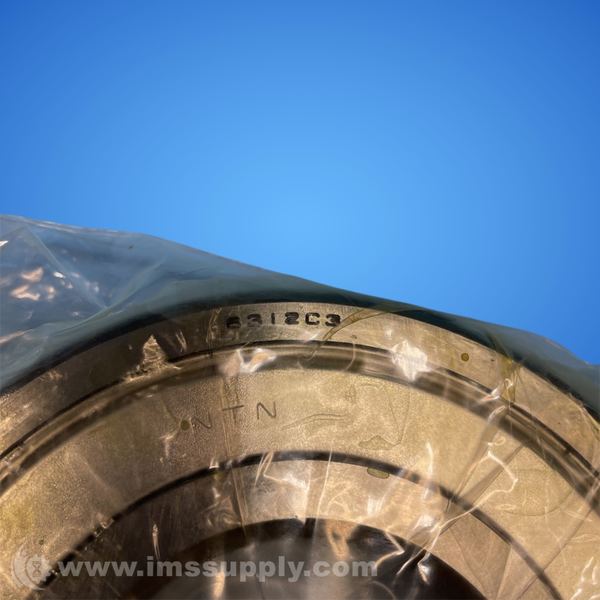

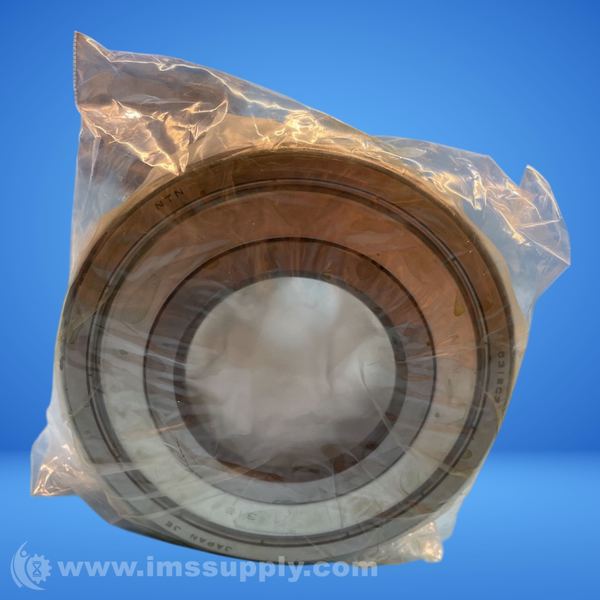

NTN 6312ZZC3/EM Deep Groove Ball Bearing
Double shielded, single row radial ball bearing made of high carbon chrome steel with pressed steel cage. Straight bore, 60 mm ID, 130 mm OD, 31 mm width, C3 internal clearance.
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Straight
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Enclosure: Double Shielded
- Radial Internal Clearance: C3
- Precision: ISO Class 0
- Static Load Rating: 11700 lbf, 52000 N, 52.00 kN
- Dynamic Load Rating: 20340 lbf, 90500 N, 90.50 kN
- Limiting Speed - Grease: 5400 RPM
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- d: 2.3622 in, 60.000 mm
- D: 5.1181 in, 130.000 mm
- B: 1.2205 in, 31.000 mm
- r: 0.0787 in, 2.000 mm
- r1: 0.0197 in, 0.500 mm
- da min: 2.7953 in, 71.000 mm
- da max: 3.1693 in, 80.500 mm
- Da max: 4.6850 in, 119.000 mm
- ras max: 0.0787 in, 2.000 mm
- Weight: 3.770 lb, 1.710 kg
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 13 hours and 4 minutes.
