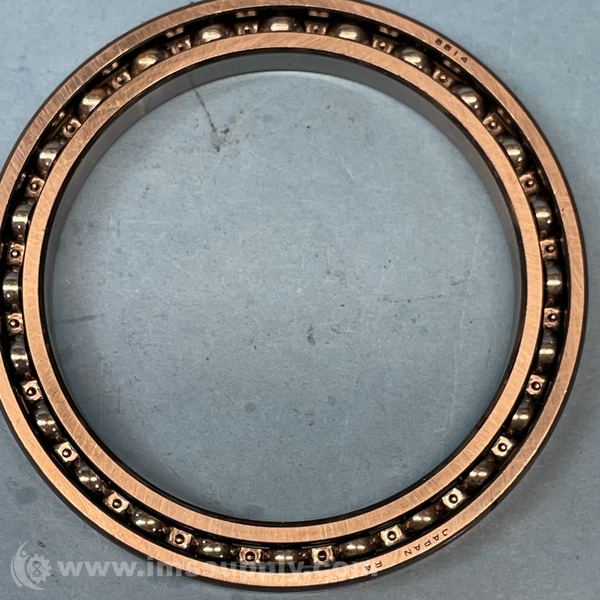

NTN 6814 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6814
IMS Product Code: 2138080
Packaging: Sold Individually
Description:
NTN 6814 Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Open Type
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 8100 RPM
- Limiting Speed - Grease: 6900 RPM
- Precision: Class 0
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 2670 lbf, 11900 N, 11.90 kN
- Dynamic Load Rating: 3010 lbf, 13400 N, 13.40 kN
- Enclosure: Open
- Weight: 0.300 lb, 0.136 kg
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- d: 2.7559 in, 70.000 mm
- D: 3.5433 in, 90.000 mm
- B: 0.3937 in, 10.000 mm
- r: 0.0236 in, 0.600 mm
- r1: 0.0197 in, 0.500 mm
- da min: 2.9134 in, 74.000 mm
- da max: 2.9724 in, 75.500 mm
- Da max: 3.3858 in, 86.000 mm
- ras max: 0.0236 in, 0.600 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 8 hours and 58 minutes.
